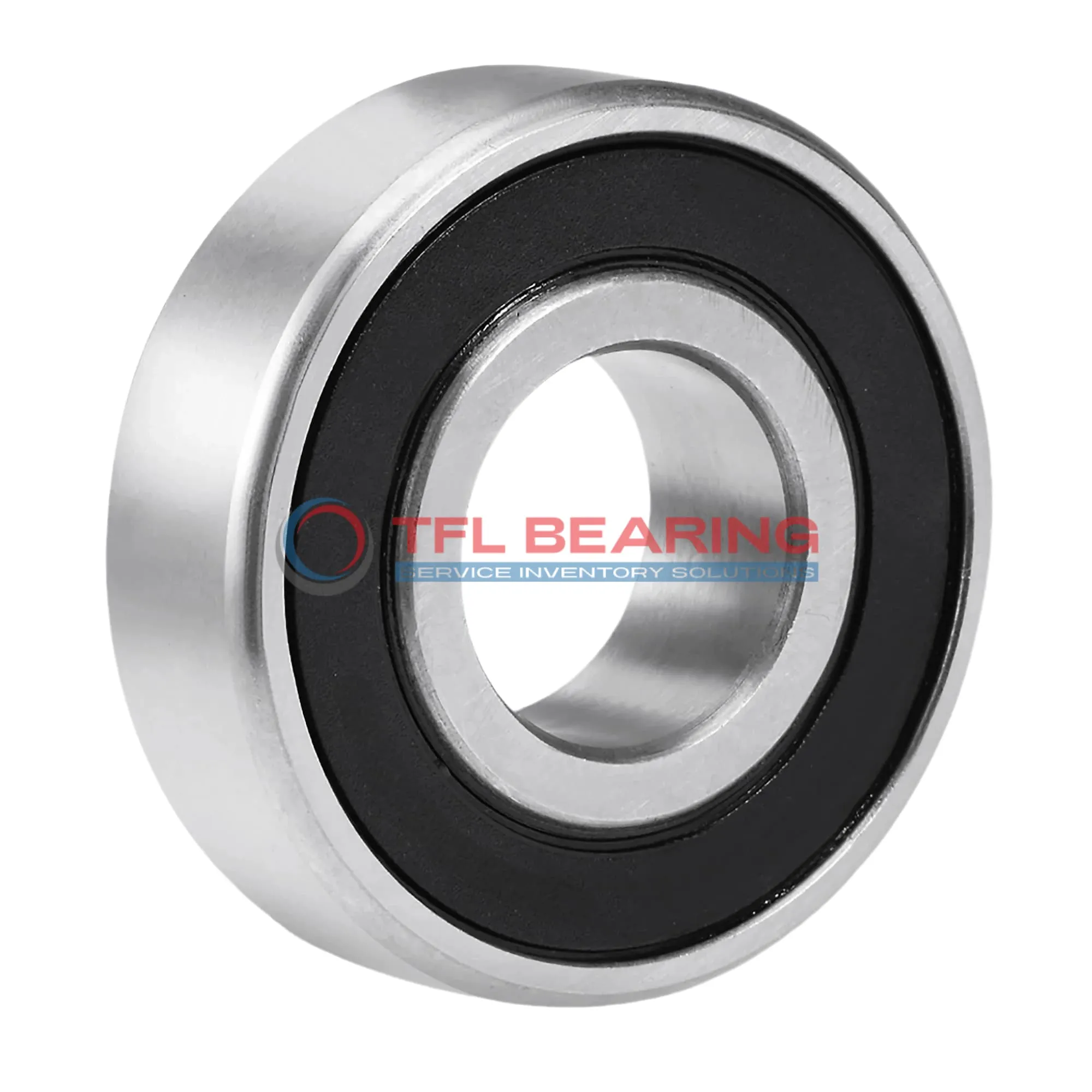

Single Row Deep Groove Ball Bearings 61916-2RS1/W64F

Single Row Deep Groove Ball Bearings 61916-2RS1/W64F

The 61916-2RS1/W64F is a single-row deep groove ball bearing with an 80mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5643 lbf and runs smoothly at speeds up to 7500 RPM.

Sealed on both sides, it keeps dirt out and solid oil lubrication in, reducing maintenance needs. The chrome steel cage adds durability, making it a long-lasting choice.

This bearing operates well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering flexibility for replacements.

Ideal for applications like electric motors or pumps where reliable radial load support is needed. Weighing 0.38kg, it’s a compact yet robust solution. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61916-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5643 lbf
  • Static Radial Load 4586 lbf
  • Max Speed 7500 rpm
  • Weight 0.38 kg
Single Row Deep Groove Ball Bearings 61916-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 61916-2RS1/W64F Bearing

61916-2RS1/W64F Bearing is built with chrome steel rings and balls, offering excellent radial load capacity.
Its dynamic radial load reaches 5643 lbf, making it suitable for various industrial applications.

The sealed design and solid oil lubrication ensure minimal maintenance and long service life.
It operates smoothly within a temperature range of -30°C to 120°C, adapting to diverse environments.

With a maximum speed of 7,500 rpm, this bearing balances performance and durability.
The precise ABEC 1 tolerance ensures reliable operation in demanding conditions.

Application

Industrial Uses of 61916-2RS1/W64F Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

In automotive applications, 61916-2RS1/W64F Bearing works well in wheel hubs and alternators, thanks to its radial load capacity. The chrome steel construction provides durability under constant vibration and stress.

For automation systems, 61916-2RS1/W64F Bearing is a reliable choice for robotic arms and conveyor belts. Its ABEC 1 tolerance offers consistent performance in precision movements.

In household appliances, you’ll find 61916-2RS1/W64F Bearing in washing machines and fans. The sealed design and solid oil lubrication make it low-maintenance for everyday use.
