Super Precision Angular Contact Ball Bearings 71944 ACD/P4ATBTA

Brand: TFL Bearing Interchangeable: SKF 71944 ACD/P4ATBTA 220 mm × 300 mm × 114 mm Metric Open
Part number: 71944 ACD/P4ATBTA
Super Precision Angular Contact Ball Bearings 71944 ACD/P4ATBTA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia220 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia300 mm
Outer Dia Tolerance-0.004mm to 0
Width114 mm
Width Tolerance-0.2mm to 0
Ball Dia25.4 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load101,025 lbf
Static Radial Load191,250 lbf
Temperature Range- 30°C to 110 °C
Max Speed11,000 rpm
Characteristics
Ball Qty29
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight19.8 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

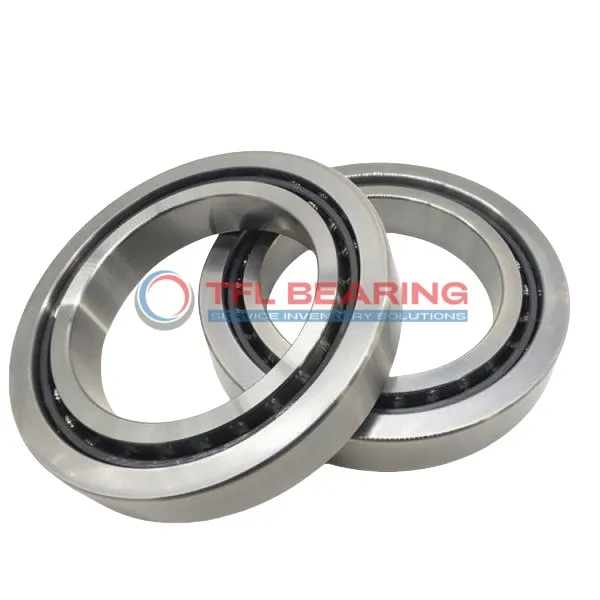

Dimension drawing · click to enlarge

Description

The 71944 ACD/P4ATBTA is a super precision angular contact ball bearing with a 220mm bore and 300mm outer diameter, crafted from robust chrome steel. It handles radial loads up to 101025 lbf and operates smoothly at speeds up to 11000 RPM.

With a 25° contact angle and open design, it offers excellent performance in high-speed applications. The phenolic cage ensures durability while keeping the weight manageable at 19.8kg.

This bearing comes in a matched set of three, arranged in a TBT configuration for extra stability. Ideal for precision machinery like spindles or CNC equipment where accuracy is key.

It works well in temperatures from -30°C to 110°C and is interchangeable with SKF bearings, making it a versatile choice for replacements or upgrades.

Features

Performance Features of 71944 ACD/P4ATBTA Bearing

71944 ACD/P4ATBTA Bearing is designed with a 25° contact angle, optimising load distribution for precision applications.

Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and wear.

With a dynamic radial load capacity of 101025 lbf, it handles demanding conditions with ease.

The bearing’s P4A tolerance class guarantees high precision and reliable performance.

How Does 71944 ACD/P4ATBTA Bearing Achieve High-Speed Performance?

71944 ACD/P4ATBTA Bearing supports speeds up to 11,000 rpm, thanks to its balanced design and quality materials.

The phenolic cage maintains ball alignment, ensuring smooth operation even at high speeds.

Its extra light preload reduces friction, enhancing efficiency and longevity.

The open seal design allows for effective lubrication, further boosting performance.

Engineered for Precision: 71944 ACD/P4ATBTA Bearing

71944 ACD/P4ATBTA Bearing’s matched arrangement of three bearings ensures stability in angular contact applications.

Its tight tolerances (-0.004mm to 0) provide consistent performance in precision machinery.

The bearing operates efficiently within a temperature range of -30°C to 110°C.

With a static radial load capacity of 191250 lbf, it offers reliable support in heavy-duty setups.

Application

Industrial Uses of 71944 ACD/P4ATBTA Bearing
71944 ACD/P4ATBTA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for high-speed operations.

In aerospace applications, 71944 ACD/P4ATBTA Bearing supports critical components like turbine shafts, thanks to its extra-light preload and P4A tolerance class. Its chrome steel construction provides durability under extreme conditions.

For automation systems, 71944 ACD/P4ATBTA Bearing excels in robotic arms, where its matched arrangement of three bearings enhances stability. The open seal type allows for easy lubrication, extending service life in continuous operation.

Medical imaging devices benefit from 71944 ACD/P4ATBTA Bearing’s consistent performance, ensuring smooth operation in scanners and diagnostic equipment. The temperature range of -30°C to 110°C makes it reliable in various clinical environments.
