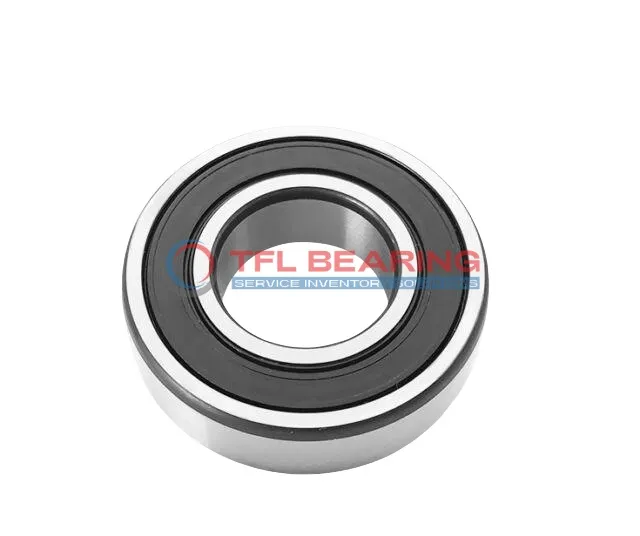

Single Row Deep Groove Ball Bearings 61910-2RZ

Single Row Deep Groove Ball Bearings 61910-2RZ

The 61910-2RZ is a compact single-row deep groove ball bearing, measuring 50mm by 72mm by 12mm. Made from chrome steel, it’s built to handle radial loads up to 3282 lbf and speeds of 9500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, ensuring smooth operation even under stress.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for electric motors or small machinery, it’s lightweight at just 0.13kg. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61910-2RZ
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 3282 lbf
  • Static Radial Load 2653 lbf
  • Max Speed 9500 rpm
  • Weight 0.13 kg
  • price（$） 30.798
Single Row Deep Groove Ball Bearings 61910-2RZ dimension drawing
Download DWG Download PDF

Features

How Does 61910-2RZ Bearing Reduce Friction?

61910-2RZ Bearing features a sealed design with grease lubrication, ensuring smooth operation and reduced friction.
The chrome steel rings and balls enhance durability, while the stainless steel cage maintains alignment for consistent performance.

With a dynamic radial load capacity of 3282 lbf, it handles demanding radial loads efficiently.
Its maximum speed of 9,500 rpm makes it suitable for high-speed applications without compromising reliability.

The temperature range of -30° to 120°C ensures stable performance in various environments.
61910-2RZ Bearing’s precision engineering and quality materials contribute to its long service life and low maintenance needs.

Application

Common Applications of 61910-2RZ Bearing
In industrial settings, 61910-2RZ Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures it can handle continuous radial loads with ease.

For automotive applications, 61910-2RZ Bearing fits well in alternators and small gearboxes, providing reliable performance. Its grease lubrication reduces maintenance needs, making it a practical choice for vehicle components.

In automation systems, 61910-2RZ Bearing works smoothly in robotic arms and conveyor belts. The P6 tolerance class ensures precise movement, which is essential for automated processes.

Around the home, 61910-2RZ Bearing can be found in appliances like washing machines and fans. Its compact size and durability make it a reliable option for everyday devices.
