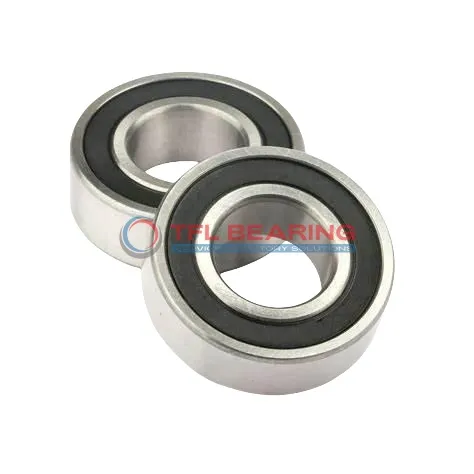

Single Row Deep Groove Ball Bearings 61906-2RZ

Single Row Deep Groove Ball Bearings 61906-2RZ

The 61906-2RZ is a compact single-row deep groove ball bearing, measuring 30mm by 47mm by 9mm. Made from chrome steel with a stainless steel cage, it’s built to handle radial loads up to 1637 lbf.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The bearing spins smoothly at speeds up to 15,000 RPM, suitable for high-speed applications.

With a P6 tolerance class, it offers precise performance. The temperature range of -30°C to 120°C ensures reliability in various conditions.

Ideal for small machinery or electric motors where space is limited. Compliant with RoHS and REACH standards, it’s a safe and durable choice. Weighing just 0.051kg, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61906-2RZ
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1637 lbf
  • Static Radial Load 1023 lbf
  • Max Speed 15000 rpm
  • Weight 0.051 kg
  • price（$） 16.308
Single Row Deep Groove Ball Bearings 61906-2RZ dimension drawing
Download DWG Download PDF

Features

Performance Features of 61906-2RZ Bearing

61906-2RZ Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 1637 lbf.
Its sealed design keeps grease in and contaminants out, ensuring smooth operation.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 15,000 rpm, it delivers reliable performance in various applications.

61906-2RZ Bearing operates efficiently in temperatures from -30° to 120°C.
Its compact size (30 mm×47 mm×9 mm) makes it suitable for space-constrained installations.

The P6 tolerance class ensures precision, while the CN radial clearance provides optimal performance.
This bearing is a cost-effective choice, balancing quality and affordability.

Application

Common Applications of 61906-2RZ Bearing
61906-2RZ Bearing works well in industrial settings, especially for small machinery like pumps and electric motors where space is limited. Its sealed design keeps out dust and debris, reducing maintenance needs.

In automotive applications, 61906-2RZ Bearing fits neatly into components like alternators and small gearboxes, ensuring smooth rotation. The grease lubrication helps it handle both high and low temperatures with ease.

For home appliances, 61906-2RZ Bearing is a reliable choice for items like washing machines and fans. The chrome steel construction ensures it lasts through daily use without wearing out quickly.

Automation systems benefit from 61906-2RZ Bearing in compact robotic arms and conveyor belts. Its P6 tolerance class provides the precision needed for consistent performance.

Medical devices like small lab equipment often use 61906-2RZ Bearing for its quiet operation and reliability. The stainless steel cage adds extra durability in sterile environments.
