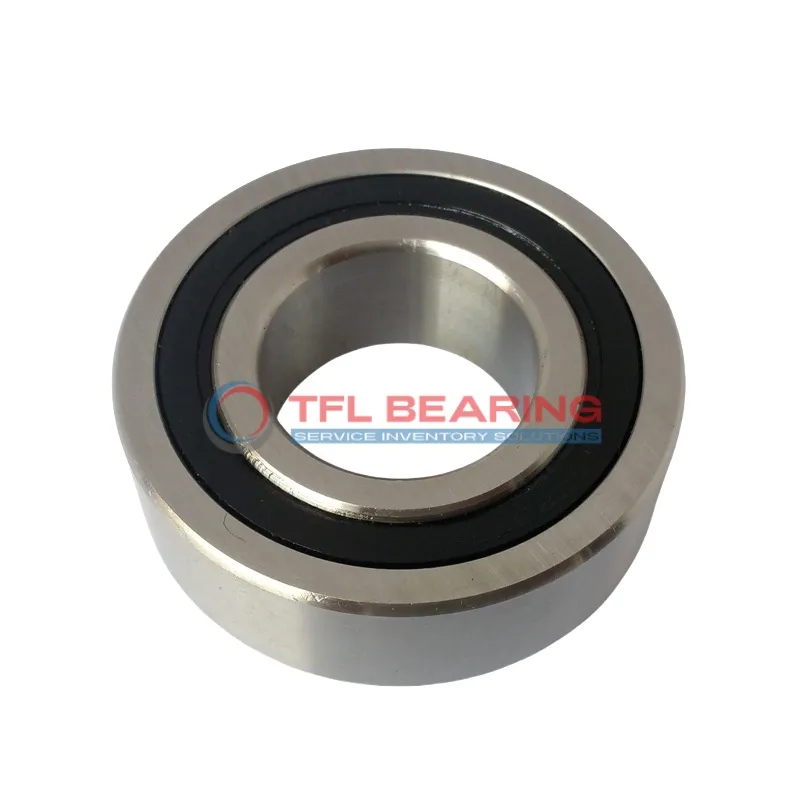

Self Aligning Ball Bearings 2206-2RS-TVH

Self Aligning Ball Bearings 2206-2RS-TVH

The 2206-2RS-TVH is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3510 lbf and runs smoothly at speeds up to 7500 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.26kg, it’s a durable yet lightweight option. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2206-2RS-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price（$） 40.38
Self Aligning Ball Bearings 2206-2RS-TVH dimension drawing
Download DWG Download PDF

Features

Why Choose 2206-2RS-TVH Bearing for Precision Tasks?

2206-2RS-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 3510 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage provide protection against contaminants and reduce friction.
This design ensures smooth operation and extends the bearing’s service life.

With a maximum speed of 7,500 rpm, 2206-2RS-TVH Bearing balances performance and durability.
Its temperature range of -30° to 110°C allows reliable use in various environments.

Application

Industrial Uses of 2206-2RS-TVH Bearing
2206-2RS-TVH Bearing is commonly used in conveyor systems, where its self-aligning feature helps accommodate minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

Where Is 2206-2RS-TVH Bearing Used?
In automotive applications, 2206-2RS-TVH Bearing fits well in wheel hubs and transmissions, thanks to its radial load capacity. The nylon cage reduces noise, making it suitable for vehicles where quiet operation is valued.

Built for Heavy-Duty Use: 2206-2RS-TVH Bearing
For agricultural machinery, 2206-2RS-TVH Bearing handles rough conditions with ease. Its chrome steel construction provides the necessary strength for equipment like tractors and harvesters.

Automotive vs Industrial: Applications of 2206-2RS-TVH Bearing
In industrial fans, 2206-2RS-TVH Bearing ensures smooth rotation even under uneven loads. Meanwhile, in automotive systems, it supports components like alternators, where reliability is key.

Perfect Fit for Automation: 2206-2RS-TVH Bearing
2206-2RS-TVH Bearing works well in robotic arms, where precision and durability are essential. The lubricated design reduces friction, enhancing performance in high-speed operations.
