Single Row Deep Groove Ball Bearings 61876 MA

Single Row Deep Groove Ball Bearings 61876 MA

The 61876 MA is a single-row deep groove ball bearing with a 380mm bore and 480mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 54404 lbf and operates smoothly at speeds up to 2000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 20kg, it’s built to withstand demanding conditions. Compliant with RoHS and REACH standards, ensuring safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61876 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 46 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 54404 lbf
  • Static Radial Load 87675 lbf
  • Max Speed 2000 rpm
  • Weight 20 kg
  • price（$） 1578.339

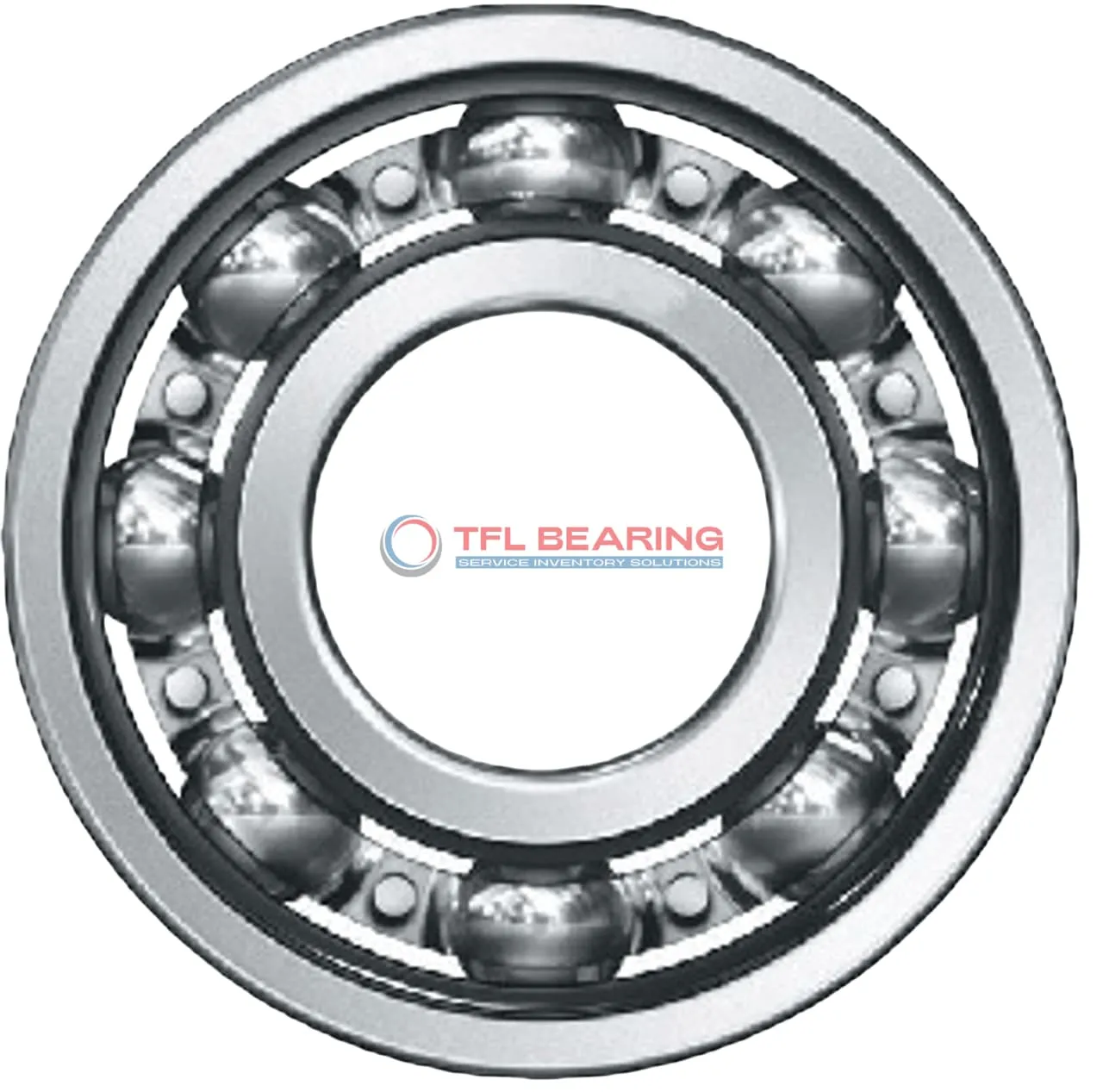

Single Row Deep Groove Ball Bearings 61876 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61876 MA Bearing

61876 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 54404 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 2,000 rpm, it maintains reliable performance under stress.

61876 MA Bearing operates in temperatures from -30° to 120°C, adapting to various environments.
Its precision P6 tolerance class ensures consistent performance in demanding conditions.

The open design simplifies maintenance, while the robust construction extends service life.
Weighing 20 kg, it balances durability with manageable handling for its size.

Application

Industrial Uses of 61876 MA Bearing
61876 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its radial load capacity ensures stable operation. The open design allows for easy lubrication, extending service life in demanding environments.

Where Is 61876 MA Bearing Used?
You’ll often find 61876 MA Bearing in wind turbine systems, where its high static radial load rating handles the stresses of rotational forces. Its chrome steel construction also resists wear in outdoor conditions.

Built for Heavy-Duty Use: 61876 MA Bearing
61876 MA Bearing excels in conveyor systems for mining and construction, thanks to its robust design and P6 tolerance class. The stainless steel cage adds durability, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 61876 MA Bearing
In automotive applications, 61876 MA Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. The metric sizing ensures compatibility across industries.

Perfect Fit for Automation: 61876 MA Bearing
61876 MA Bearing is a reliable choice for automated production lines, particularly in robotic arms and assembly systems. Its high dynamic load rating ensures smooth performance even under constant movement.
