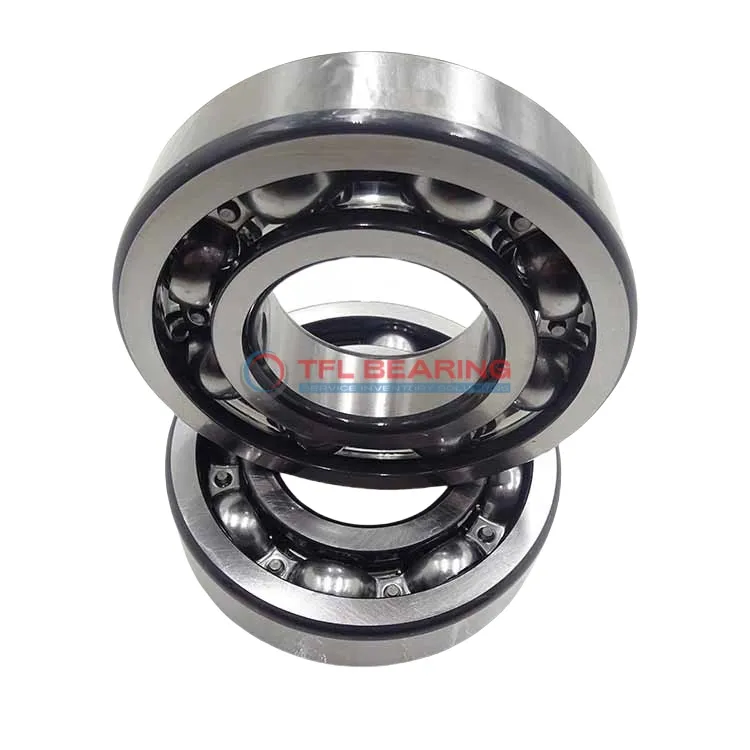

Single Row Deep Groove Ball Bearings 61848 MA/W64

Single Row Deep Groove Ball Bearings 61848 MA/W64

The 61848 MA/W64 is a single row deep groove ball bearing with a 240mm bore and 300mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24279 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design and machined metal cage ensure durability, while the solid oil lubrication reduces maintenance needs. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or conveyor systems where radial loads are prevalent.

Weighing 3.88kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61848 MA/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 28 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 24279 lbf
  • Static Radial Load 33721 lbf
  • Max Speed 2600 rpm
  • Weight 3.88 kg
Single Row Deep Groove Ball Bearings 61848 MA/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61848 MA/W64 Bearing

61848 MA/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 24279 lbf, ensuring reliable performance in various applications.

The machined metal cage maintains ball alignment, reducing wear and extending operational life.
With a maximum speed of 2,600 rpm, it balances durability and efficiency for smooth operation.

Solid oil lubrication ensures consistent performance across a temperature range of -30°C to 120°C.
This makes 61848 MA/W64 Bearing suitable for diverse industrial environments.

Application

Industrial Uses of 61848 MA/W64 Bearing
61848 MA/W64 Bearing is commonly used in heavy machinery, such as large conveyor systems and industrial fans, where its radial load capacity ensures reliable performance. The solid oil lubrication helps maintain smooth operation even in demanding conditions.

What Makes 61848 MA/W64 Bearing a Preferred Choice?
Its chrome steel construction and machined metal cage make 61848 MA/W64 Bearing suitable for high-load applications like gearboxes and electric motors. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Built for Heavy-Duty Use: 61848 MA/W64 Bearing
You’ll often find 61848 MA/W64 Bearing in agricultural equipment, where its durability and resistance to wear are essential. The wide temperature range also makes it adaptable to various working environments.

Automotive vs Aerospace: Applications of 61848 MA/W64 Bearing
In automotive systems, 61848 MA/W64 Bearing supports components like wheel hubs, while its precision makes it useful in aerospace auxiliary systems. The metric sizing ensures compatibility across different industries.
