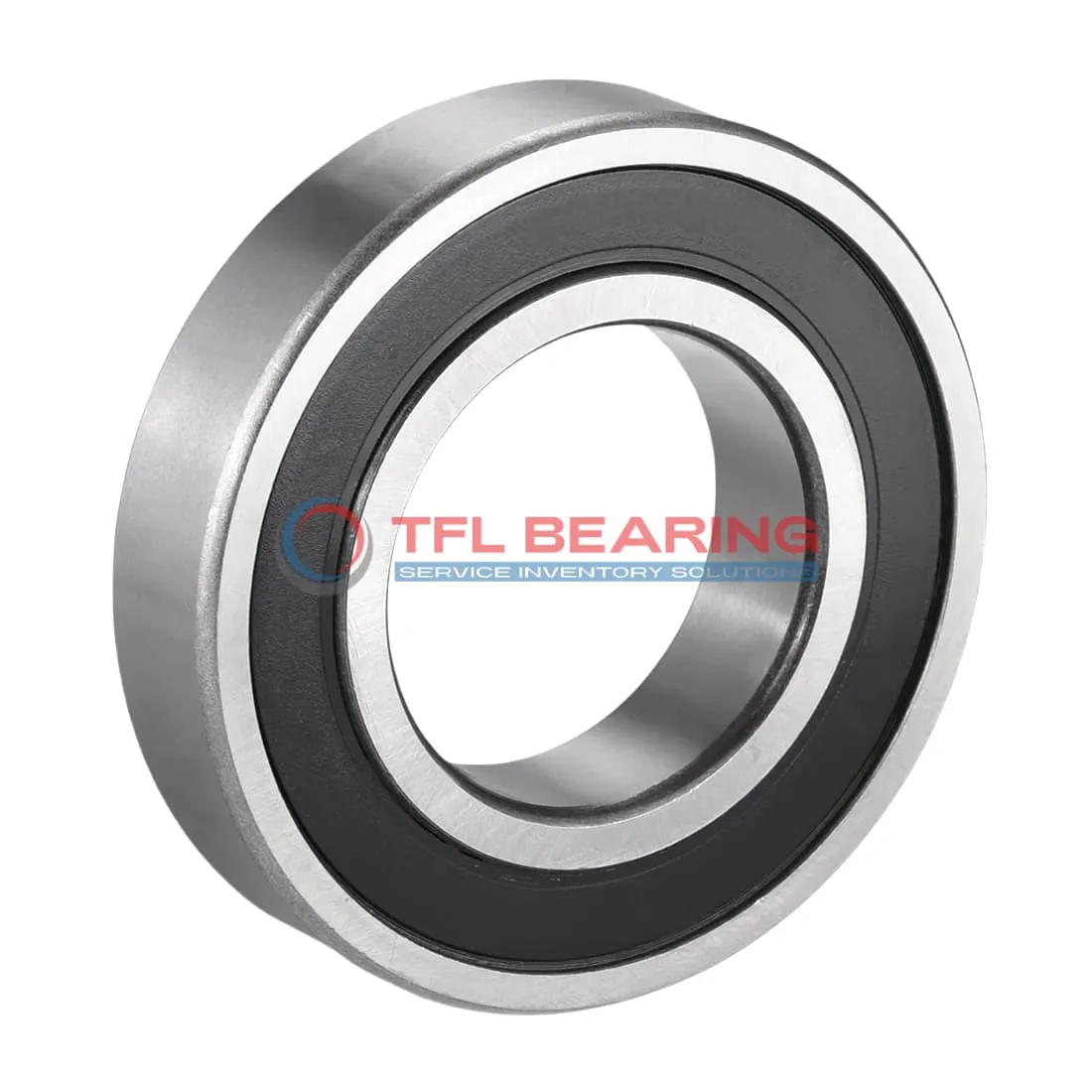

Single Row Deep Groove Ball Bearings 6020-2RS1/C3

Single Row Deep Groove Ball Bearings 6020-2RS1/C3

The 6020-2RS1/C3 is a sealed single-row deep groove ball bearing with a 100mm bore and 150mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 13533 lbf and operates smoothly at speeds up to 4300 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C3 clearance allows for slight thermal expansion. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Ideal for applications like electric motors or pumps where radial loads and contamination resistance are key.

Weighing 1250g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6020-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13533 lbf
  • Static Radial Load 12185 lbf
  • Max Speed 4300 rpm
  • Weight 1250 g
  • price（$） 68.4
Single Row Deep Groove Ball Bearings 6020-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6020-2RS1/C3 Bearing

6020-2RS1/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 13533 lbf, making it suitable for demanding applications.

The sealed design of 6020-2RS1/C3 Bearing protects against dust and moisture, enhancing durability.
It operates smoothly within a temperature range of -30°C to 120°C, ensuring reliable performance.

With a maximum speed of 4,300 rpm, 6020-2RS1/C3 Bearing balances efficiency and longevity.
The C3 radial clearance provides optimal performance under varying thermal conditions.

6020-2RS1/C3 Bearing’s chrome steel cage ensures stability, reducing wear over time.
Its compact design fits seamlessly into various mechanical setups.

Application

Common Applications of 6020-2RS1/C3 Bearing
6020-2RS1/C3 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The C3 radial clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 6020-2RS1/C3 Bearing fits well in wheel hubs and transmission systems, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

For automation equipment, 6020-2RS1/C3 Bearing provides smooth operation in robotic arms and conveyor belts. The sealed design reduces maintenance needs, making it ideal for high-use environments.

Where Is 6020-2RS1/C3 Bearing Used?
You’ll often find 6020-2RS1/C3 Bearing in household appliances like washing machines, where its durability and sealed design are key. The chrome steel balls ensure long-lasting performance even with frequent use.

In agricultural machinery, 6020-2RS1/C3 Bearing handles heavy radial loads in equipment like harvesters. Its wide temperature range makes it suitable for outdoor use in varying climates.

Built for Heavy-Duty Use: 6020-2RS1/C3 Bearing
6020-2RS1/C3 Bearing excels in construction equipment, such as cranes and excavators, where its high dynamic load capacity is essential. The sealed design also protects against dust and debris.

For food processing machinery, 6020-2RS1/C3 Bearing’s chrome steel construction meets hygiene standards while providing reliable performance. Its smooth operation is crucial for maintaining production efficiency.

Light-Duty vs Heavy-Duty: Best Uses for 6020-2RS1/C3 Bearing
In light-duty applications like office printers, 6020-2RS1/C3 Bearing ensures quiet and efficient operation. The sealed design helps prolong bearing life by preventing dust ingress.

For heavy-duty industrial fans, 6020-2RS1/C3 Bearing’s high load capacity and thermal stability make it a dependable choice. Its robust construction handles continuous operation with ease.
