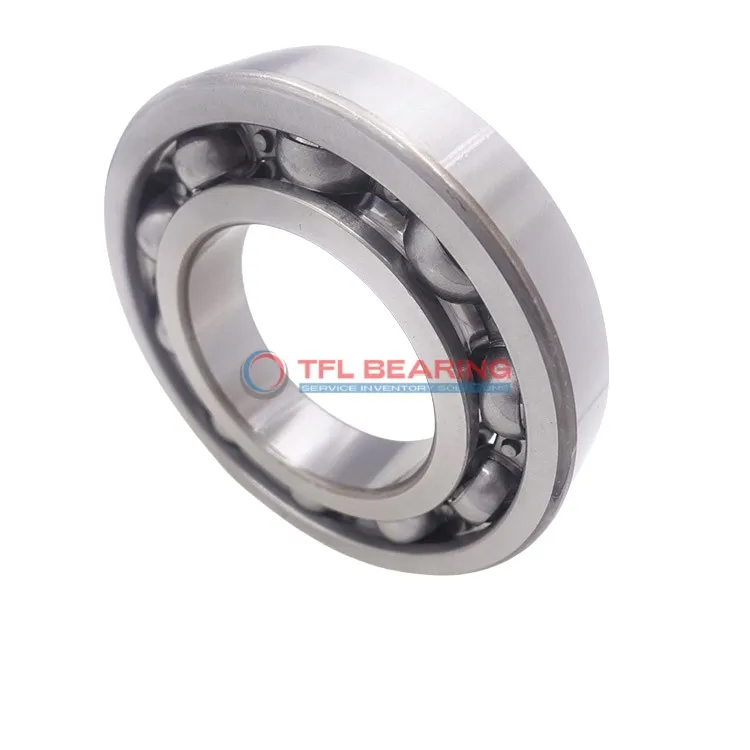

Single Row Deep Groove Ball Bearings 61832 MA/C3

The 61832 MA/C3 is a single row deep groove ball bearing with a 160mm bore and 200mm outer diameter, crafted from robust chrome steel. It manages radial loads up to 11106 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are predominant.

Weighing 1.25kg, it offers a sturdy build for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 61832 MA/C3
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 160 mm
Bore Dia Tolerance -0.018mm to 0
Outer Dia 200 mm
Outer Dia Tolerance -0.020mm to 0
Width 20 mm
Width Tolerance -0.25mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Machined metal
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 11106 lbf
Static Radial Load 14388 lbf
Max Speed 4000 rpm
Weight 1.25 kg
price（$） 298.287

Single Row Deep Groove Ball Bearings 61832 MA/C3 dimension drawing

Download DWG Download PDF

Features

Performance Features of 61832 MA/C3 Bearing

61832 MA/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 11106 lbf, making it suitable for demanding applications.

The machined metal cage ensures precise ball alignment, reducing friction and extending service life.
With a maximum speed of 4,000 rpm, it provides a balance of durability and efficiency.

61832 MA/C3 Bearing operates in temperatures from -30° to 120°C, adapting to various working conditions.
Its open design simplifies maintenance, while the C3 radial clearance ensures smooth operation under load.

Application

Industrial Uses of 61832 MA/C3 Bearing
61832 MA/C3 Bearing is commonly used in industrial machinery like pumps and compressors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication adjustments in demanding environments.

Where Is 61832 MA/C3 Bearing Used?
In automotive applications, 61832 MA/C3 Bearing fits well in wheel hubs and transmission systems, thanks to its robust chrome steel construction. Its C3 clearance ensures reliable performance under varying thermal conditions.

Built for Heavy-Duty Use: 61832 MA/C3 Bearing
This bearing excels in conveyor systems and material handling equipment, where its machined metal cage enhances durability. The metric sizing makes it compatible with a wide range of industrial gear.

Automotive vs Aerospace: Applications of 61832 MA/C3 Bearing
While 61832 MA/C3 Bearing is popular in automotive wheel hubs, it also suits aerospace ground support equipment. Its temperature range and load capacity make it versatile across industries.

Perfect Fit for Automation: 61832 MA/C3 Bearing
In robotic arms and automated assembly lines, 61832 MA/C3 Bearing offers smooth operation with minimal maintenance. The deep groove design ensures stability even at moderate speeds.
