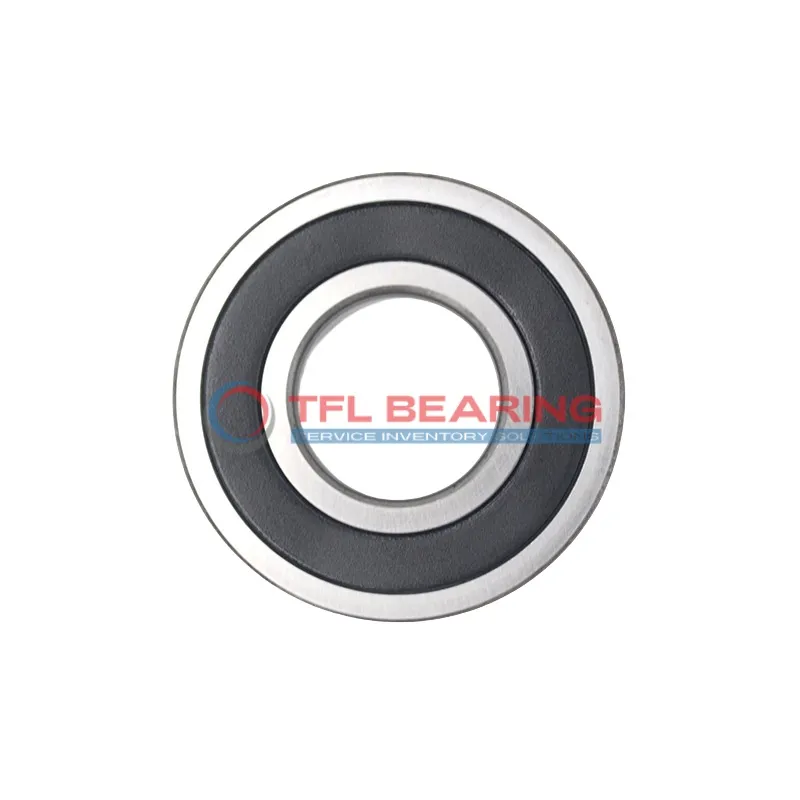

Self Aligning Ball Bearings 2205K-2RSTNC3

Self Aligning Ball Bearings 2205K-2RSTNC3

The 2205K-2RSTNC3 is a self-aligning ball bearing with a 25mm tapered bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3218 lbf and operates smoothly at speeds up to 9000 RPM.

Its double-row design and sealed construction keep dirt out, while the nylon cage reduces friction for quieter performance. The bearing stays lubricated and works in temperatures from -30°C to 110°C.

This model aligns itself to minor misalignments, making installation easier. It’s interchangeable with SKF bearings, ideal for machinery like conveyor belts or agricultural equipment.

Weighing just 0.16kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2205K-2RSTNC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 31 mm
  • Internal Diameter On Outer Ring 46.21 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3218 lbf
  • Static Radial Load 900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 0.16 kg
Self Aligning Ball Bearings 2205K-2RSTNC3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2205K-2RSTNC3 Bearing for Precision Tasks?

2205K-2RSTNC3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 3218 lbf makes it suitable for high-performance applications.

The sealed construction and nylon cage provide smooth operation while keeping contaminants out.
With a maximum speed of 9,000 rpm, it delivers reliable performance in various conditions.

2205K-2RSTNC3 Bearing’s C3 radial clearance allows for slight misalignment, reducing stress on components.
Its tapered bore design ensures a secure fit, enhancing stability during operation.

Application

Industrial Uses of 2205K-2RSTNC3 Bearing
2205K-2RSTNC3 Bearing is commonly used in conveyor systems, where its self-aligning feature helps accommodate misalignment and reduces wear. The sealed design keeps contaminants out, making it suitable for dusty environments.

In automotive applications, 2205K-2RSTNC3 Bearing works well in suspension systems, providing smooth rotation under radial loads. Its tapered bore ensures a secure fit, which is essential for vehicle safety and performance.

For robotics, 2205K-2RSTNC3 Bearing offers reliable performance in joint mechanisms, thanks to its double-row construction. The nylon cage reduces friction, making it ideal for precise, repetitive movements.

In household appliances like washing machines, 2205K-2RSTNC3 Bearing handles moderate loads while maintaining quiet operation. The lubricated design ensures long service life with minimal maintenance.
