Single Row Deep Groove Ball Bearings 61830

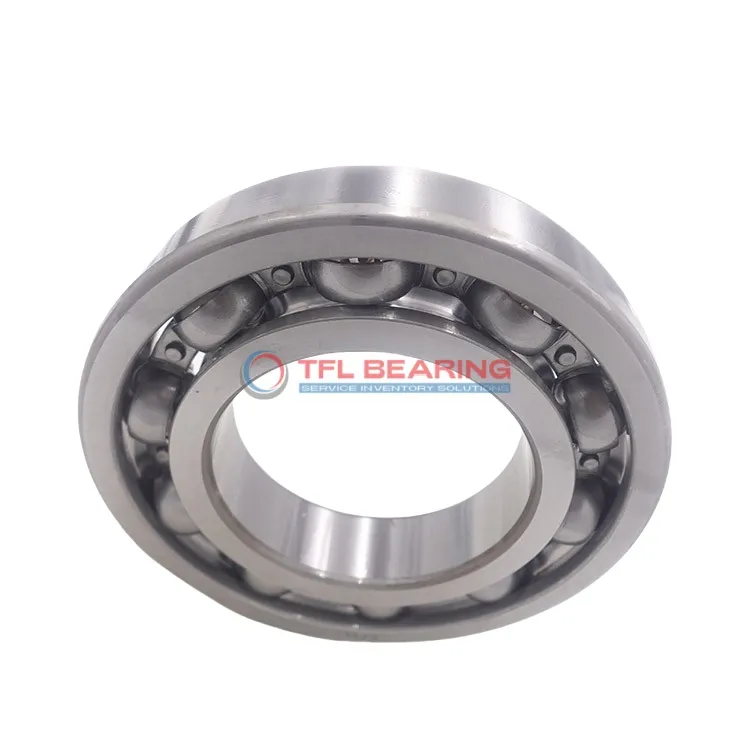

Single Row Deep Groove Ball Bearings 61830

The 61830 is a single-row deep groove ball bearing with a 150mm bore and 190mm outer diameter, crafted from sturdy chrome steel for reliable performance. It manages radial loads up to 10971 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 120°C, it adapts well to various environments.

This bearing is interchangeable with SKF models, offering a practical replacement option. Perfect for machinery requiring consistent radial load support, such as electric motors or pumps.

Weighing 1.19kg, it balances strength with manageable size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61830
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 20 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 10971 lbf
  • Static Radial Load 13713 lbf
  • Max Speed 4300 rpm
  • Weight 1.19 kg
  • price（$） 149.526
Single Row Deep Groove Ball Bearings 61830 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61830 Bearing

61830 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 10971 lbf, making it suitable for demanding applications.
The stainless steel cage ensures proper ball alignment, reducing wear and extending service life.
With a maximum speed of 4,300 rpm, it balances durability and efficiency in operation.

How Does 61830 Bearing Reduce Friction?

61830 Bearing’s deep groove design minimises friction, enabling smooth rotation under radial loads.
The precision-engineered chrome steel components ensure consistent performance over time.
Its open seal type allows for easy lubrication, further reducing friction and wear.
The P6 tolerance class guarantees high precision in various applications.

Engineered for Precision: 61830 Bearing

61830 Bearing is designed for high precision with a P6 tolerance class and CN radial clearance.
The single row construction provides reliable performance in radial load applications.
Its temperature range of -30° to 120°C ensures stable operation in various environments.
The chrome steel material composition offers durability and resistance to wear.

Application

Common Applications of 61830 Bearing
In industrial settings, 61830 Bearing is frequently used in machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The open design simplifies lubrication, making it suitable for high-speed applications.

Where Is 61830 Bearing Used?
You’ll often find 61830 Bearing in automotive components such as alternators and wheel hubs, thanks to its reliable performance under radial loads. Its metric dimensions make it a versatile choice for various vehicle models.

Ideal for Precision: 61830 Bearing
For medical devices like centrifuges, 61830 Bearing’s chrome steel construction offers durability and consistent performance. The stainless steel cage adds extra resistance to wear in demanding environments.

Automotive vs Industrial: Applications of 61830 Bearing
In automotive systems, 61830 Bearing supports parts like transmissions, while in industrial gear, it handles radial loads in conveyor systems. Its wide temperature range makes it adaptable to different working conditions.

Practical Applications of 61830 Bearing
In home appliances like washing machines, 61830 Bearing ensures quiet and efficient operation. Its compact size and radial load capacity make it a reliable choice for everyday devices.
