Super Precision Angular Contact Ball Bearings S7020 ACD/P4ATBTB

Super Precision Angular Contact Ball Bearings S7020 ACD/P4ATBTB

The S7020 ACD/P4ATBTB is a super precision angular contact ball bearing with a 100mm bore and 150mm outer diameter, measuring 72mm in width. Made from high-quality chrome steel, it’s designed for angular contact loads and comes in a matched set of three bearings.

With a 25° contact angle and sealed design, it handles dynamic radial loads up to 38700 lbf and spins smoothly at speeds up to 16250 RPM. The phenolic cage ensures durability and reduces friction.

Its light preload (Class B) and P4A tolerance class make it ideal for high-precision applications like machine tools or spindle drives. The sealed design keeps grease in and contaminants out, extending its lifespan.

Weighing 3.82kg, this bearing operates in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings, offering a reliable alternative for precision machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7020 ACD/P4ATBTB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 72 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 15.875 mm
  • Ball Qty 22
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement 3 bearings <>> TBT
  • Number Of Bearings In Matched Set 3
  • Universal Matching Bearing No
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 54000 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 16250 rpm
  • Weight 3.82 kg

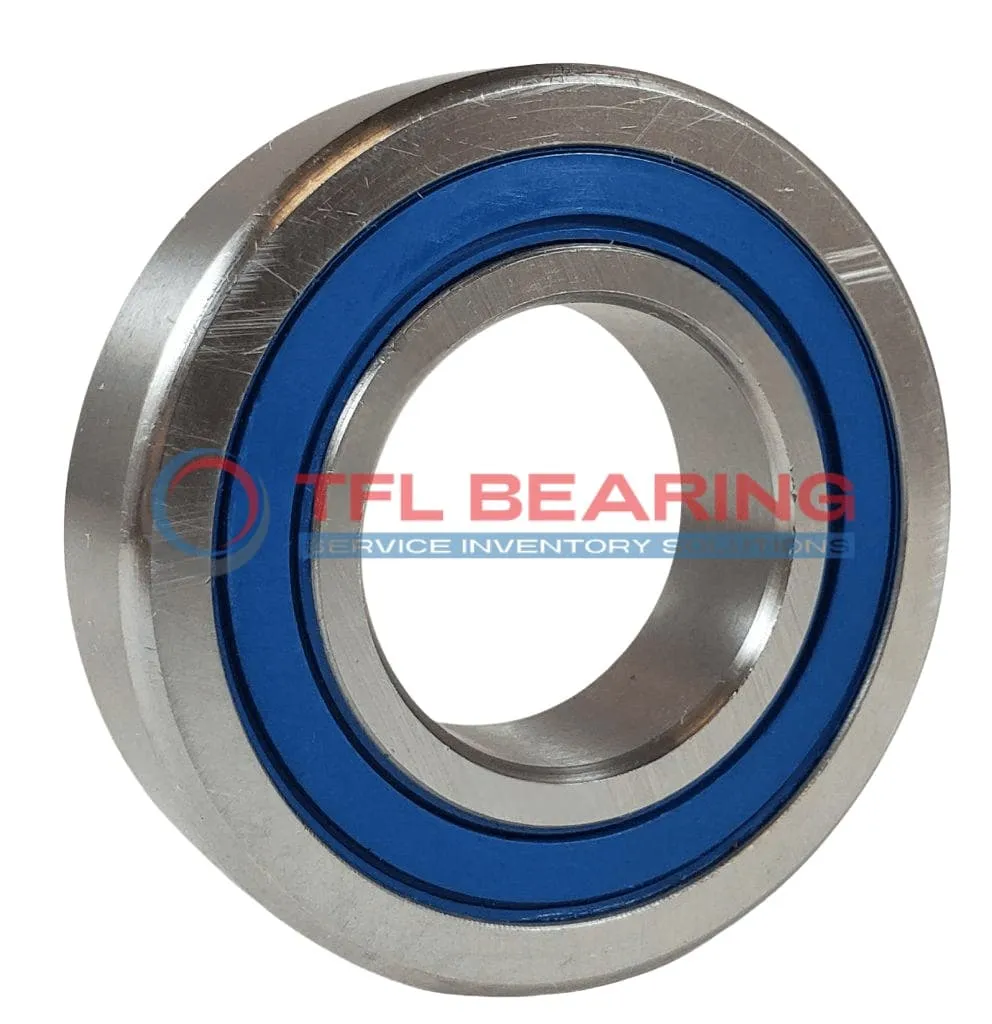

Super Precision Angular Contact Ball Bearings S7020 ACD/P4ATBTB dimension drawing
Download DWG Download PDF

Features

Performance Features of S7020 ACD/P4ATBTB Bearing

S7020 ACD/P4ATBTB Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability under high dynamic radial loads of up to 38,700 lbf.

The sealed design and phenolic cage maintain smooth operation, even at speeds reaching 16,250 rpm.
Precision P4A tolerance guarantees consistent performance in demanding conditions.

With a matched arrangement of three bearings, S7020 ACD/P4ATBTB Bearing provides enhanced stability.
Its grease lubrication system ensures long-lasting performance within a temperature range of -30°C to 110°C.

Application

Key Fields for S7020 ACD/P4ATBTB Bearing
S7020 ACD/P4ATBTB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The sealed construction keeps contaminants out, making it reliable for long-term use.

In aerospace applications, S7020 ACD/P4ATBTB Bearing handles the demanding loads of aircraft components, thanks to its chrome steel rings and phenolic cage. The matched arrangement of three bearings provides extra stability for critical systems.

For robotics, S7020 ACD/P4ATBTB Bearing offers smooth motion in articulated arms, with its light preload reducing friction. The grease lubrication ensures consistent performance even in high-speed operations.

In medical imaging devices, S7020 ACD/P4ATBTB Bearing’s precision helps maintain the accuracy of rotating parts. Its temperature range makes it suitable for various clinical environments.
