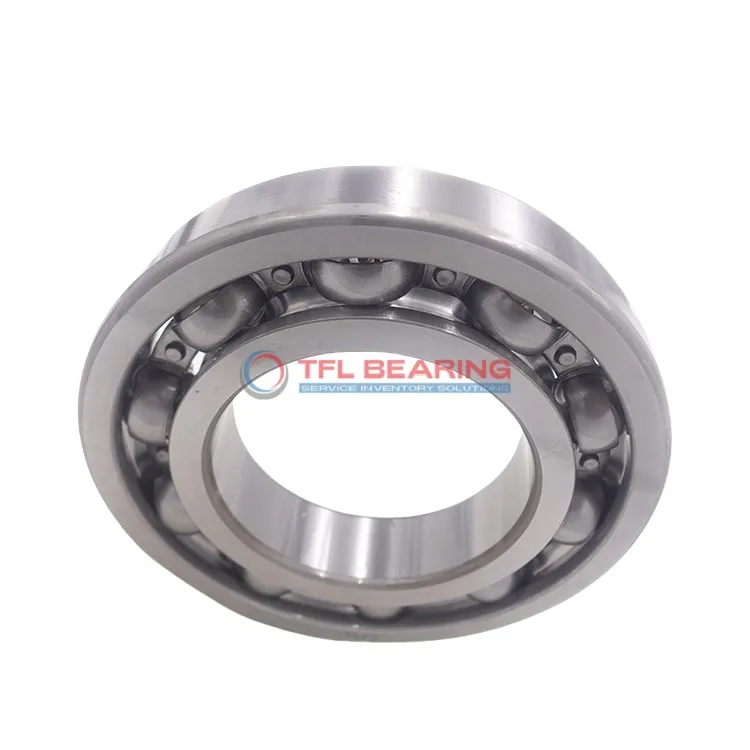

Single Row Deep Groove Ball Bearings 61830 MA/W64

Single Row Deep Groove Ball Bearings 61830 MA/W64

The 61830 MA/W64 is a single-row deep groove ball bearing with a 150mm bore and 190mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 10971 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the machined metal cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.35kg, it offers a balance of strength and lightweight design. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61830 MA/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 20 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 10971 lbf
  • Static Radial Load 13713 lbf
  • Max Speed 4300 rpm
  • Weight 1.35 kg
Single Row Deep Groove Ball Bearings 61830 MA/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61830 MA/W64 Bearing

61830 MA/W64 Bearing is crafted with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 10971 lbf, making it suitable for demanding applications.

The machined metal cage ensures precise ball alignment, reducing friction and wear.
With solid oil lubrication, 61830 MA/W64 Bearing requires minimal maintenance.

It operates smoothly in temperatures from -30°C to 120°C, ensuring reliable performance.
The ABEC 1 tolerance class provides consistent precision for various industrial uses.

Application

Industrial Uses of 61830 MA/W64 Bearing
61830 MA/W64 Bearing is commonly used in industrial machinery like pumps and compressors, where its deep groove design handles radial loads efficiently. The solid oil lubrication ensures long service life with minimal maintenance.

Where Is 61830 MA/W64 Bearing Used?
You’ll often find 61830 MA/W64 Bearing in automotive applications such as electric motors and alternators, thanks to its reliable performance under moderate speeds. Its metric sizing makes it a versatile fit for various European and Asian vehicle designs.

Perfect Fit for Automation: 61830 MA/W64 Bearing
In robotic arms and automated conveyor systems, 61830 MA/W64 Bearing provides smooth motion due to its precise ABEC 1 tolerance. The machined metal cage adds durability in continuous operation scenarios.

Medical vs Industrial: Where 61830 MA/W64 Bearing Excels
While 61830 MA/W64 Bearing suits industrial gearboxes, it also performs well in medical devices like centrifuges where consistent rotation is key. The chrome steel construction ensures resistance to wear in both environments.

Essential Roles of 61830 MA/W64 Bearing
For household appliances like washing machines, 61830 MA/W64 Bearing offers quiet operation and reliability. Its solid oil lubrication reduces friction, making it ideal for high-use domestic applications.
