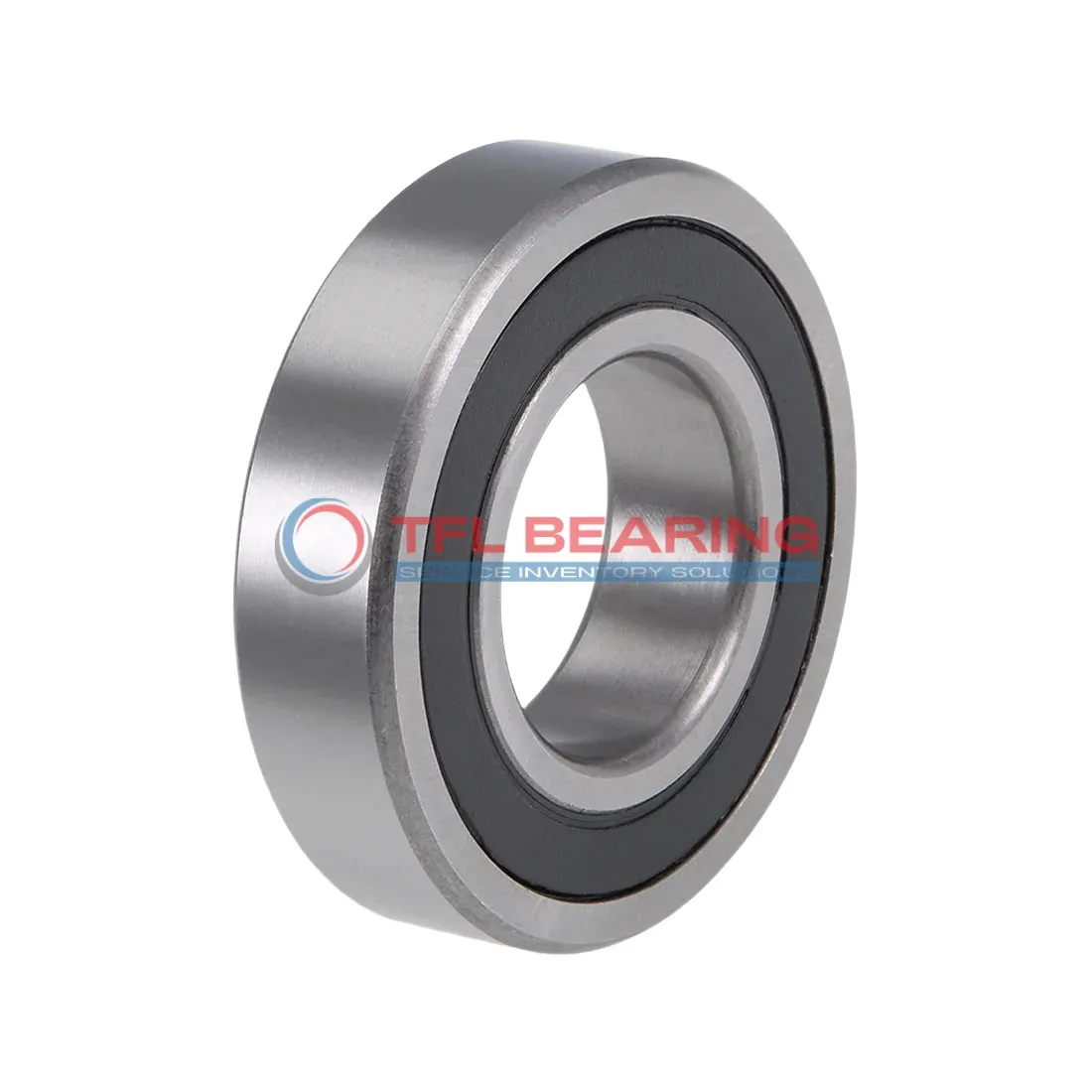

Single Row Deep Groove Ball Bearings 61824-2RS1/C3

Single Row Deep Groove Ball Bearings 61824-2RS1/C3

The 61824-2RS1/C3 is a single-row deep groove ball bearing with a 120mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6542 lbf and operates smoothly at speeds up to 5300 RPM.

Its sealed design keeps dirt out and grease in, ensuring low maintenance, while the chrome steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.51kg, it offers a good balance of strength and size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61824-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 6295 lbf
  • Max Speed 5300 rpm
  • Weight 0.51 kg
  • price（$） 139.482
Single Row Deep Groove Ball Bearings 61824-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61824-2RS1/C3 Bearing

61824-2RS1/C3 Bearing is designed for radial loads, with a dynamic radial load capacity of 6542 lbf.
Its sealed construction protects against contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the C3 radial clearance allows for thermal expansion.
This makes 61824-2RS1/C3 Bearing suitable for applications with fluctuating temperatures.

With a maximum speed of 5,300 rpm, it balances performance and longevity.
The sealed design also reduces maintenance needs, making it a practical choice for many industries.

Application

Common Applications of 61824-2RS1/C3 Bearing
61824-2RS1/C3 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 61824-2RS1/C3 Bearing fits well in wheel hubs and alternators, thanks to its radial load capacity. The chrome steel construction offers durability for long-term use in demanding environments.

For home appliances, 61824-2RS1/C3 Bearing works smoothly in washing machines and fans, providing quiet operation. Its metric sizing makes it easy to replace in European and Asian models.

Automation systems benefit from 61824-2RS1/C3 Bearing in robotic arms, where precision and low maintenance are key. The sealed design reduces the need for frequent lubrication.
