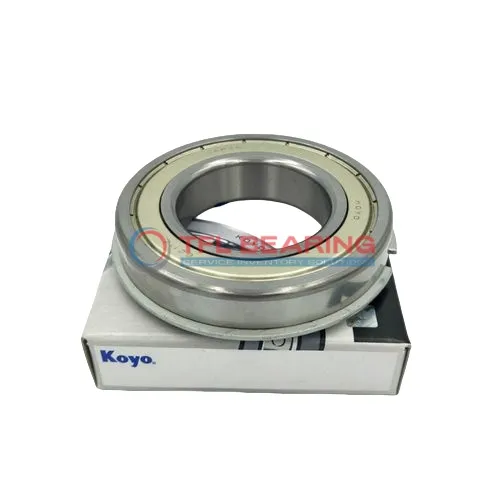

Snap Ring Groove Ball Bearings 6215-2ZNRJEM

Snap Ring Groove Ball Bearings 6215-2ZNRJEM

The 6215-2ZNRJEM is a shielded snap ring groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 15152 lbf and operates smoothly at speeds up to 4800 RPM.

Its shielded design keeps dirt out while the snap ring ensures secure mounting. The chrome steel cage adds strength, making it suitable for demanding environments. The bearing works in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for machinery like pumps or motors where radial loads and secure positioning are key.

Weighing 1170g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215-2ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 139.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 15152 lbf
  • Static Radial Load 10858 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 1170 g
  • Price（$） 41.4
Snap Ring Groove Ball Bearings 6215-2ZNRJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6215-2ZNRJEM Bearing

6215-2ZNRJEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 15152 lbf, ensuring reliable performance in various applications.

The shielded design of 6215-2ZNRJEM Bearing protects against dust and debris, enhancing durability.
With a snap ring fitted on the outer ring, it provides secure mounting and easy installation.

6215-2ZNRJEM Bearing operates smoothly at speeds up to 4,800 rpm, balancing efficiency and longevity.
Its temperature range of -30°C to 120°C makes it suitable for diverse working environments.

Application

Industrial Uses of 6215-2ZNRJEM Bearing
This shielded bearing is commonly used in industrial machinery like pumps and electric motors, where radial load support is essential. The snap ring feature ensures secure mounting, reducing the risk of displacement during operation.

How Does 6215-2ZNRJEM Bearing Improve Performance?
In automotive applications, it enhances stability in components such as alternators and transmission systems. Its chrome steel construction offers durability, while the ABEC 1 tolerance ensures consistent performance.

Built for Heavy-Duty Use: 6215-2ZNRJEM Bearing
The 6215-2ZNRJEM Bearing handles high dynamic loads, making it suitable for conveyor systems and agricultural equipment. Its shielded design protects against contaminants, extending service life in harsh environments.

Automotive vs Industrial: Applications of 6215-2ZNRJEM Bearing
In vehicles, it supports smooth rotation in wheel hubs and drivetrains. For industrial gear, the bearing’s snap ring simplifies installation in confined spaces, improving maintenance efficiency.
