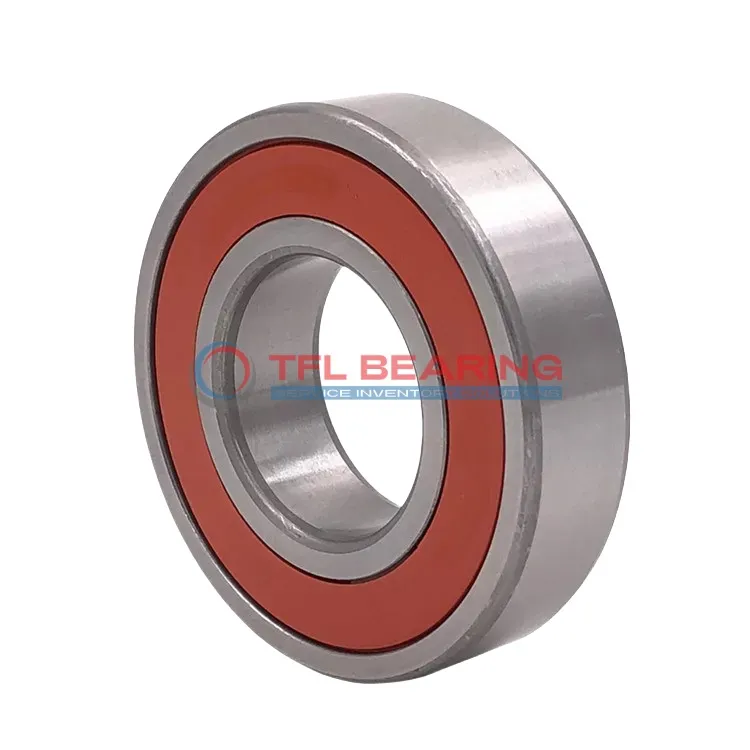

Single Row Deep Groove Ball Bearings 61814-2RS1/W64

Single Row Deep Groove Ball Bearings 61814-2RS1/W64

The 61814-2RS1/W64 is a single-row deep groove ball bearing with a 70mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2788 lbf and operates smoothly at speeds up to 9000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.14kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61814-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2788 lbf
  • Static Radial Load 2967 lbf
  • Max Speed 9000 rpm
  • Weight 0.14 kg
  • price（$） 68.85
Single Row Deep Groove Ball Bearings 61814-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 61814-2RS1/W64 Bearing for Precision Tasks?

61814-2RS1/W64 Bearing features a single-row deep groove design, optimised for radial load handling with a dynamic capacity of 2788 lbf.
Its sealed construction and solid oil lubrication ensure minimal maintenance, even in demanding conditions.

The chrome steel rings and balls enhance durability, while the ABEC 1 tolerance class guarantees precision.
With a maximum speed of 9,000 rpm, it delivers reliable performance across a wide temperature range.

The compact 70 mm×90 mm×10 mm size makes it suitable for space-constrained applications.
Its sealed design protects against contaminants, ensuring long-term smooth operation.

Application

Ideal for Precision: 61814-2RS1/W64 Bearing
The 61814-2RS1/W64 Bearing works well in industrial settings, especially for radial loads in machinery like pumps and electric motors. Its sealed design keeps out dust and moisture, extending its lifespan in harsh conditions.

In automotive applications, 61814-2RS1/W64 Bearing fits smoothly into components such as alternators and cooling fans. The solid oil lubrication ensures quiet and reliable performance, even at higher speeds.

For home appliances like washing machines, 61814-2RS1/W64 Bearing offers durability and low maintenance. The chrome steel construction handles daily wear without compromising efficiency.

Medical devices benefit from 61814-2RS1/W64 Bearing’s consistent performance in equipment like centrifuges. The sealed design also helps maintain hygiene in sensitive environments.
