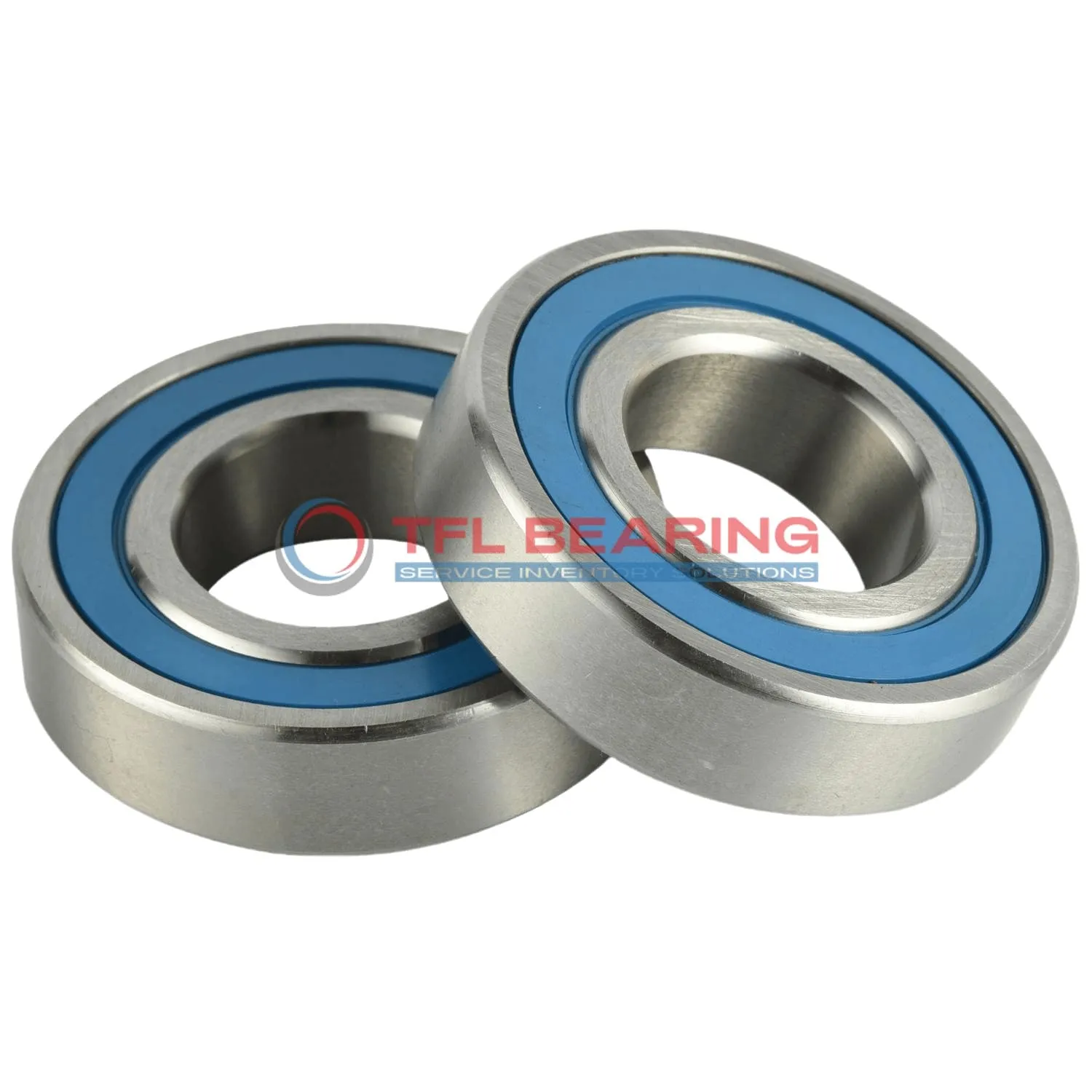

Single Row Deep Groove Ball Bearings 61807-2RS1

Single Row Deep Groove Ball Bearings 61807-2RS1

The 61807-2RS1 is a compact single-row deep groove ball bearing, measuring 35mm by 47mm by 7mm. Made from chrome steel with stainless steel cage, it offers reliable performance for radial loads up to 980 lbf.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The bearing handles speeds up to 8500 RPM and works in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, ensuring easy replacements. Ideal for small electric motors or appliances where space is limited.

Weighing just 28 grams, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61807-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 980 lbf
  • Static Radial Load 753 lbf
  • Max Speed 8500 rpm
  • Weight 0.028 kg
  • price（$） 23.733
Single Row Deep Groove Ball Bearings 61807-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 61807-2RS1 Bearing for Precision Tasks?

61807-2RS1 Bearing features sealed construction, protecting against dust and moisture for consistent performance.
Its chrome steel rings and balls provide reliable radial load support, with a dynamic load capacity of 980 lbf.

The stainless steel cage ensures smooth operation, even at high speeds up to 8,500 rpm.
With a compact design (35 mm×47 mm×7 mm), it fits neatly into space-constrained applications.

Grease lubrication reduces maintenance needs, making it a practical choice for long-term use.
Its P6 tolerance class ensures precision, ideal for tasks requiring accurate rotational performance.

Application

Common Applications of 61807-2RS1 Bearing
61807-2RS1 Bearing is widely used in industrial equipment like small motors and pumps, where its sealed design keeps contaminants out. The compact size makes it ideal for tight spaces without compromising performance.

In automotive applications, 61807-2RS1 Bearing fits well in electric window mechanisms and cooling fans. Its grease lubrication ensures quiet operation and long service life, even in daily use.

For home appliances, 61807-2RS1 Bearing works smoothly in items like blenders and washing machines. The chrome steel construction provides durability, while the sealed design prevents grease leakage.

How Does 61807-2RS1 Bearing Support High-Speed Operations?
61807-2RS1 Bearing handles high speeds up to 8,500 rpm, making it suitable for power tools and small machinery. The stainless steel cage maintains stability, reducing friction during rapid rotation.

In automation systems, 61807-2RS1 Bearing ensures precise movement in robotic arms and conveyor belts. Its P6 tolerance class guarantees consistent performance in repetitive tasks.

Perfect Fit for Automation: 61807-2RS1 Bearing
61807-2RS1 Bearing is a reliable choice for 3D printers, where smooth radial motion is essential. The sealed design protects against dust, ensuring uninterrupted printing sessions.

For medical devices like dental drills, 61807-2RS1 Bearing offers quiet and vibration-free operation. The temperature range of -30° to 120°C allows use in various clinical environments.

Light-Duty vs Heavy-Duty: Best Uses for 61807-2RS1 Bearing
In light-duty applications like office printers, 61807-2RS1 Bearing provides quiet and efficient performance. The small width of 7 mm fits neatly into compact designs.

For heavier tasks in industrial fans, 61807-2RS1 Bearing handles radial loads with ease. The dynamic radial load capacity of 980 lbf ensures reliability in continuous operation.
