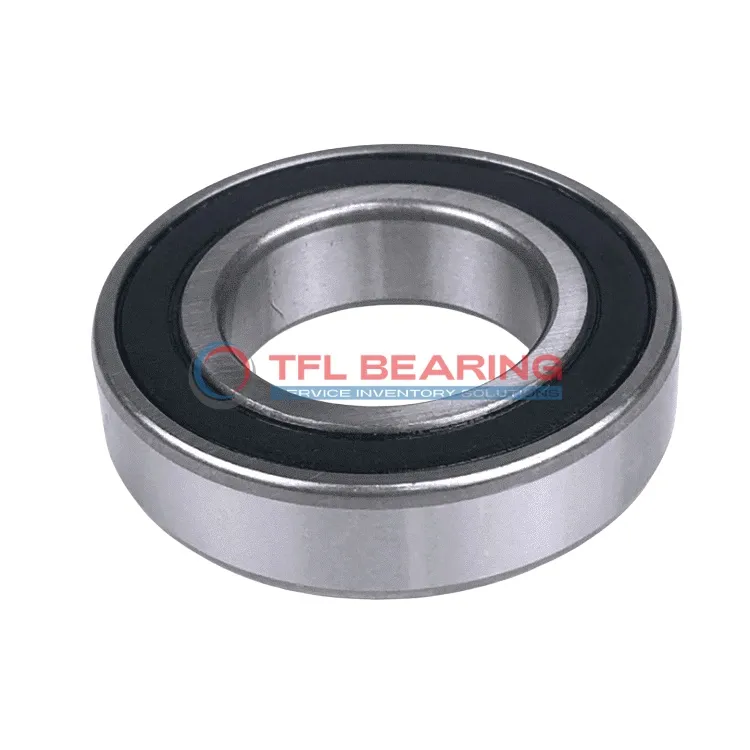

Single Row Deep Groove Ball Bearings 61804-2RZ

Single Row Deep Groove Ball Bearings 61804-2RZ

The 61804-2RZ is a compact single-row deep groove ball bearing, measuring 20mm by 32mm by 7mm, with a sealed design for added protection. Made from chrome steel, it handles radial loads up to 906 lbf and spins smoothly at speeds up to 22,000 RPM.

Its stainless steel cage and grease lubrication ensure reliable performance, even in temperatures ranging from -30°C to 120°C. The sealed design keeps dirt out, making it low-maintenance for long-term use.

This bearing is interchangeable with SKF models, offering a cost-effective replacement option. Ideal for small electric motors or appliances where space is limited but performance is key.

Weighing just 0.018kg, it’s lightweight yet durable. Compliant with REACH and RoHS standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61804-2RZ
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 906 lbf
  • Static Radial Load 522 lbf
  • Max Speed 22000 rpm
  • Weight 0.018 kg
  • price（$） 15.417
Single Row Deep Groove Ball Bearings 61804-2RZ dimension drawing
Download DWG Download PDF

Features

Why Choose 61804-2RZ Bearing for Precision Tasks?

61804-2RZ Bearing features a sealed design, keeping contaminants out and ensuring smooth operation.
Its chrome steel construction provides durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 906 lbf, it handles demanding tasks efficiently.
The stainless steel cage maintains ball alignment, reducing friction and extending service life.

Operating at speeds up to 22,000 rpm, it balances high performance with reliability.
Its compact size (20 mm×32 mm×7 mm) makes it ideal for space-constrained applications.

The grease lubrication ensures consistent performance across a wide temperature range (-30° to 120 °C).
This makes 61804-2RZ Bearing suitable for various industrial and precision instruments.

Application

Common Applications of 61804-2RZ Bearing
61804-2RZ Bearing is widely used in industrial equipment like small electric motors and pumps, where its sealed design keeps contaminants out. The compact size makes it ideal for tight spaces without sacrificing performance.

In automotive applications, 61804-2RZ Bearing fits well in components such as alternators and small gearboxes. Its grease lubrication ensures smooth operation even under continuous radial loads.

For consumer electronics, 61804-2RZ Bearing works efficiently in devices like cooling fans and small printers. The chrome steel construction provides durability while maintaining quiet operation.

Automation systems benefit from 61804-2RZ Bearing in robotic arms and precision tools, where its P6 tolerance ensures accurate movement. The stainless steel cage adds extra resistance to wear over time.
