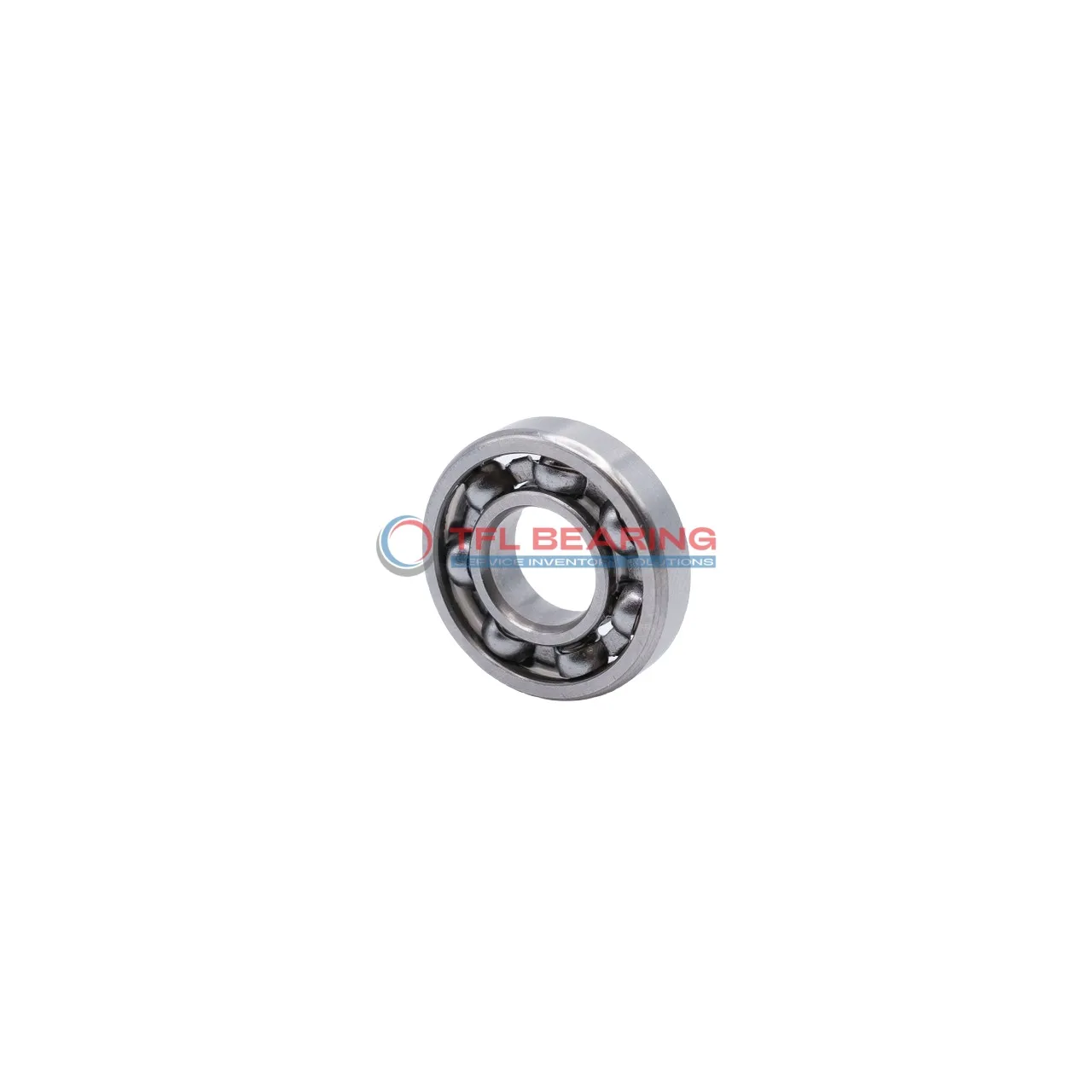

Single Row Deep Groove Ball Bearings 6096 MB

Single Row Deep Groove Ball Bearings 6096 MB

The 6096 MB is a single-row deep groove ball bearing with a large 480mm bore and 700mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 138,932 lbf and operates at speeds up to 1400 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a P6 tolerance class, it offers precise performance for demanding applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for heavy machinery or industrial equipment where high radial loads are common. Weighing 125kg, it’s built for robust performance in tough conditions. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6096 MB
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 700 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 100 mm
  • Width Tolerance -0.45mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 138932 lbf
  • Static Radial Load 256282 lbf
  • Max Speed 1400 rpm
  • Weight 125000 g
Single Row Deep Groove Ball Bearings 6096 MB dimension drawing
Download DWG Download PDF

Features

Performance Features of 6096 MB Bearing

6096 MB Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 138,932 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 1,400 rpm, it balances performance and durability in demanding conditions.

6096 MB Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its precision engineering ensures reliable performance in various industrial settings.

Application

Key Fields for 6096 MB Bearing
In heavy machinery, 6096 MB Bearing handles radial loads effortlessly, making it ideal for large industrial gearboxes and mining equipment. Its robust chrome steel construction ensures longevity even in demanding environments.

Where Is 6096 MB Bearing Used?
You’ll often find 6096 MB Bearing in wind turbine systems, where its high load capacity and precision are crucial for smooth operation. The open design allows for easy lubrication, reducing maintenance downtime.

Built for Heavy-Duty Use: 6096 MB Bearing
6096 MB Bearing excels in steel mills, supporting rolling mills and conveyors with its impressive static radial load capacity. The stainless steel cage adds durability, making it a reliable choice for harsh conditions.

Automotive vs Aerospace: Applications of 6096 MB Bearing
In automotive applications, 6096 MB Bearing is used in large truck transmissions, while in aerospace, it supports ground-handling equipment. Its metric sizing ensures compatibility across various industries.

Perfect Fit for Automation: 6096 MB Bearing
6096 MB Bearing is a go-to for automated production lines, where its high-speed capability and reliability keep systems running smoothly. The P6 tolerance class ensures consistent performance in precision-driven tasks.
