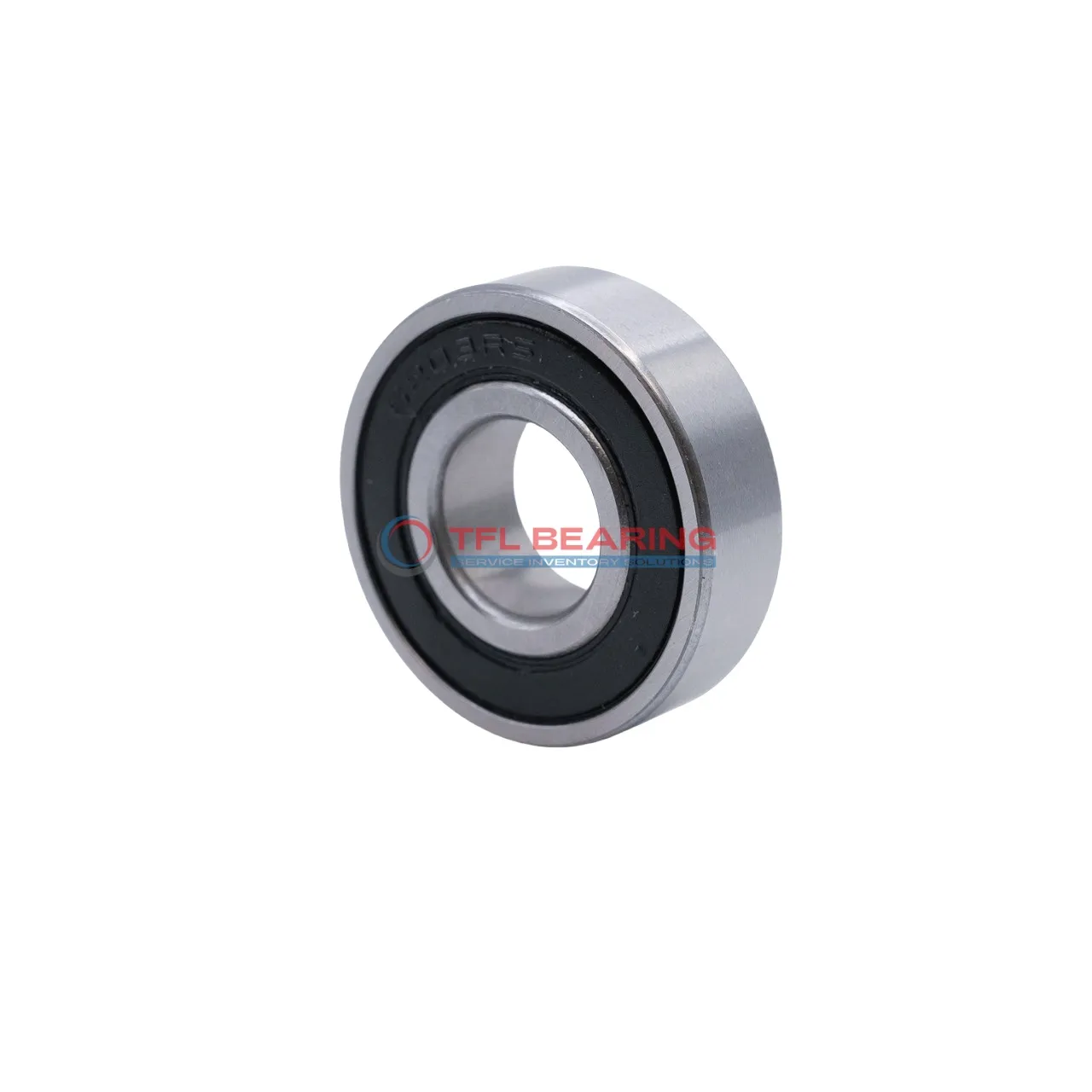

Single Row Deep Groove Ball Bearings 609-RS1QE6

Single Row Deep Groove Ball Bearings 609-RS1QE6

The 609-RS1QE6 is a compact single-row deep groove ball bearing, measuring 9mm in bore and 24mm in outer diameter, with a width of just 7mm. Made from durable chrome steel, it’s built to handle radial loads up to 642 lbf.

Its sealed design keeps out dust and dirt, making it low-maintenance for long-term use. The bearing spins smoothly at speeds up to 32,000 RPM, suitable for high-speed applications.

With a temperature range of -30°C to 120°C, it performs well in various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for small motors, power tools, or appliances where space is limited but performance is key. Compliant with RoHS and REACH standards for safety and environmental friendliness.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 609-RS1QE6
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 642 lbf
  • Static Radial Load 260 lbf
  • Max Speed 32000 rpm
  • Weight 14.7 g
Single Row Deep Groove Ball Bearings 609-RS1QE6 dimension drawing
Download DWG Download PDF

Features

Why Choose 609-RS1QE6 Bearing for Precision Tasks?

609-RS1QE6 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and smooth operation in radial load applications.

With a dynamic radial load capacity of 642 lbf, it handles demanding tasks efficiently.
The ABEC 1 tolerance class guarantees reliable precision for various industrial uses.

Operating within a temperature range of -30°C to 120°C, it adapts to diverse environments.
Its compact size (9 mm×24 mm×7 mm) makes it ideal for space-constrained applications.

Application

Common Applications of 609-RS1QE6 Bearing
You’ll often spot 609-RS1QE6 Bearing in small electric motors, thanks to its compact 9mm bore and reliable sealed design. It’s a go-to choice for appliances like desk fans or power tools where space is tight but smooth rotation matters.

Industrial Uses of 609-RS1QE6 Bearing
In conveyor systems, 609-RS1QE6 Bearing handles radial loads effortlessly while its chrome steel construction stands up to continuous operation. The sealed design keeps out dust in factory environments.

Why Is 609-RS1QE6 Bearing Essential in Machinery?
This bearing shines in printer mechanisms where its 24mm outer diameter fits neatly into compact assemblies. The ABEC 1 tolerance ensures consistent performance for precise paper feeding.

Perfect Fit for Automation: 609-RS1QE6 Bearing
Robotic arm joints benefit from 609-RS1QE6 Bearing’s 7mm width and high-speed capability (up to 32,000 rpm). Its sealed construction prevents lubricant leakage in cleanroom applications.

Medical vs Industrial: Where 609-RS1QE6 Bearing Excels
While suitable for dental handpieces, 609-RS1QE6 Bearing really thrives in packaging equipment where its 260 lbf static load capacity handles intermittent shocks well. The temperature range covers most workshop conditions.
