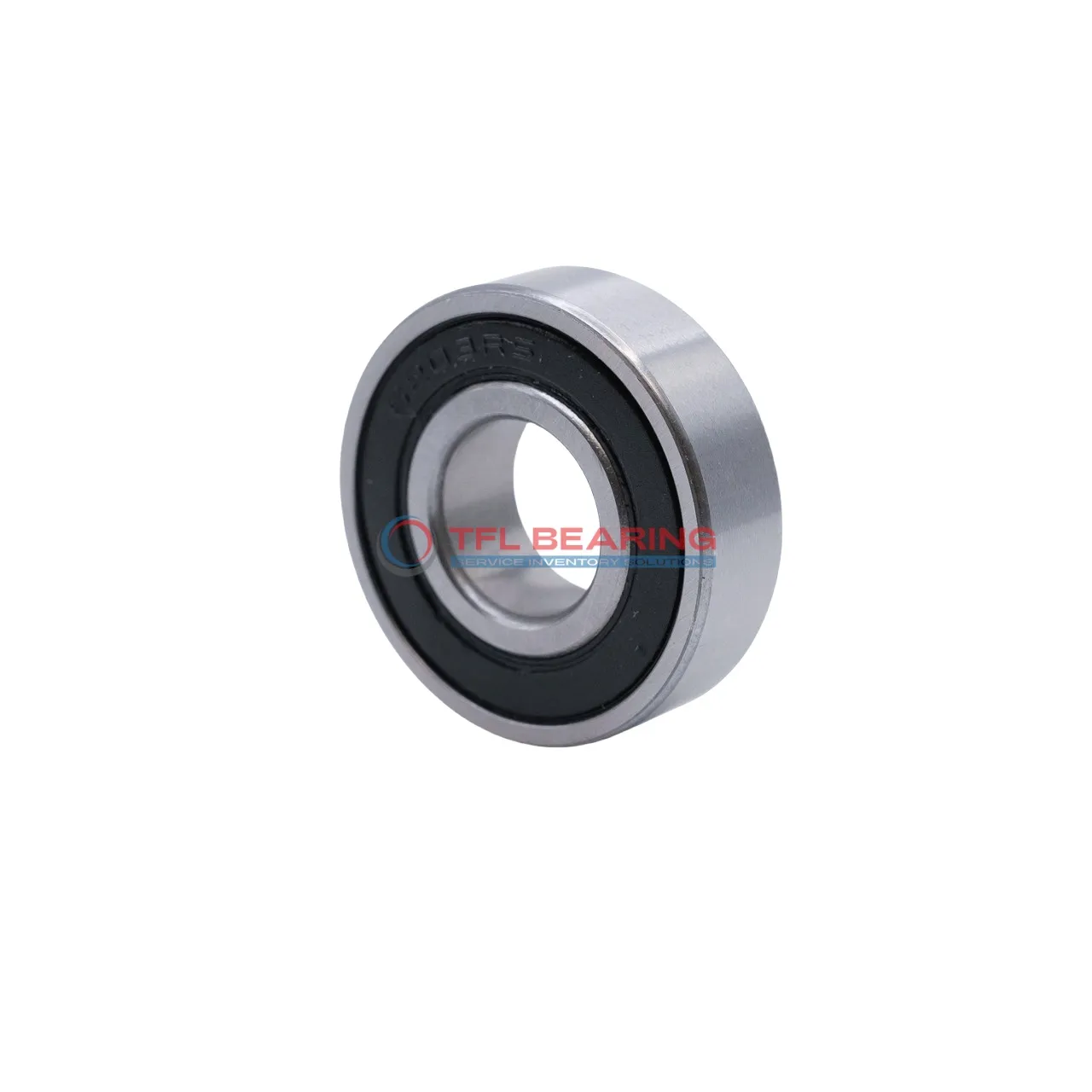

Single Row Deep Groove Ball Bearings 609-2RSH/C3LHT23

Single Row Deep Groove Ball Bearings 609-2RSH/C3LHT23

The 609-2RSH/C3LHT23 is a compact single-row deep groove ball bearing, measuring 9mm by 24mm by 7mm, crafted from durable chrome steel. It handles radial loads up to 642 lbf and spins smoothly at speeds up to 32,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C3 radial clearance allows for slight thermal expansion. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for small electric motors, fans, or appliances where space is limited but reliability is key.

Weighing just 14.7g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 609-2RSH/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 642 lbf
  • Static Radial Load 260 lbf
  • Max Speed 32000 rpm
  • Weight 14.7 g
  • price（$） 2.457
Single Row Deep Groove Ball Bearings 609-2RSH/C3LHT23 dimension drawing
Download DWG Download PDF

Features

How Does 609-2RSH/C3LHT23 Bearing Reduce Friction?

609-2RSH/C3LHT23 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while reducing friction during operation.
The sealed design protects against contaminants, maintaining performance in various environments.
With a maximum speed of 32,000 rpm, it offers efficient and reliable service.

Application

Common Applications of 609-2RSH/C3LHT23 Bearing
609-2RSH/C3LHT23 Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its sealed design keeps dust and debris out, ensuring smooth operation over time.

In automotive applications, 609-2RSH/C3LHT23 Bearing fits well in components like alternators and water pumps, where its radial load capacity is essential. The C3 clearance also accommodates thermal expansion in these high-temperature environments.

For automation equipment, 609-2RSH/C3LHT23 Bearing works reliably in robotic arms and conveyor systems, thanks to its balanced performance and durability. The chrome steel construction ensures it can handle continuous use without significant wear.

In consumer electronics, 609-2RSH/C3LHT23 Bearing is a go-to choice for printers and small power tools, where compact size and efficiency matter. The sealed design also helps maintain performance in dusty or humid conditions.
