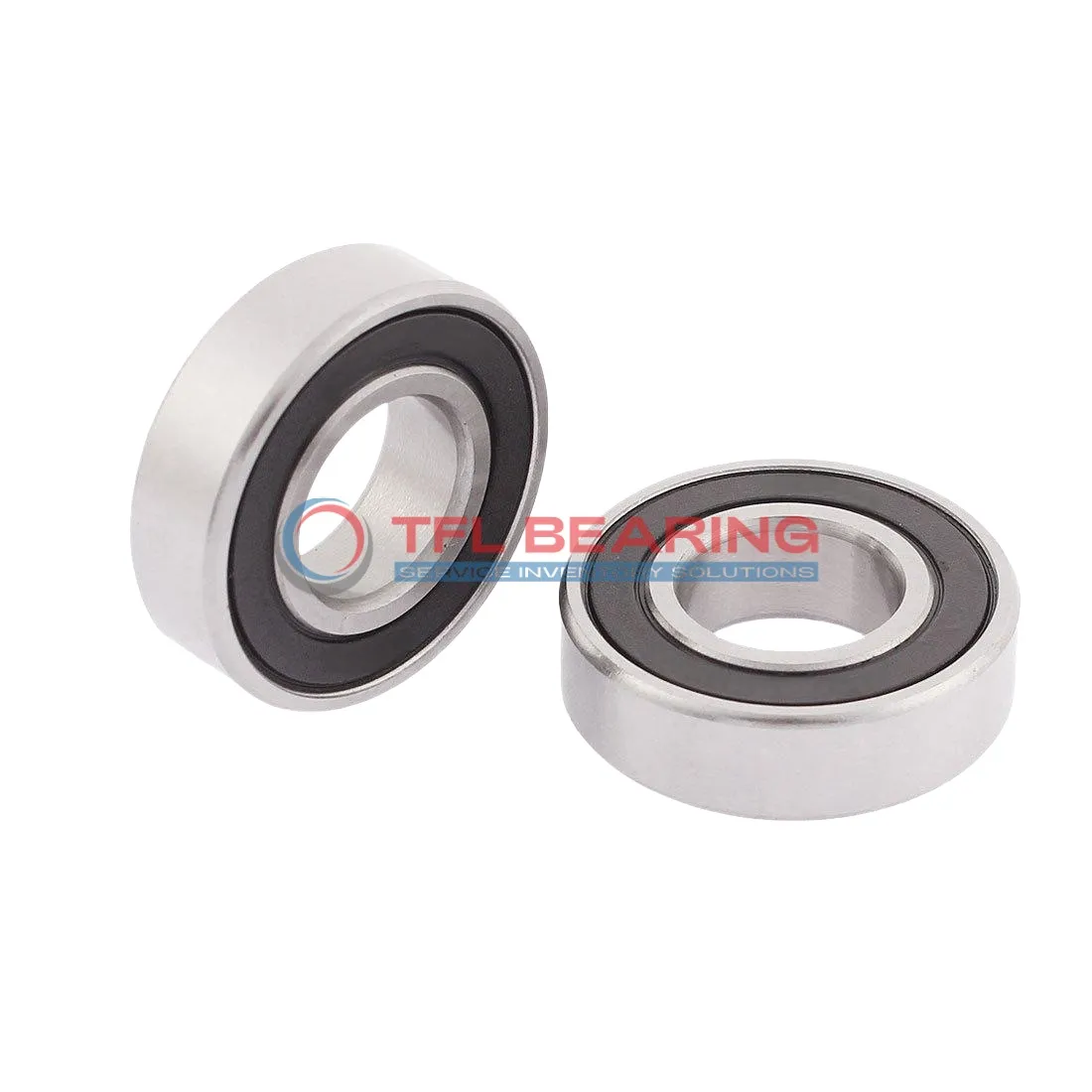

Single Row Deep Groove Ball Bearings 608-RSHTN9/CNLLT

Single Row Deep Groove Ball Bearings 608-RSHTN9/CNLLT

The 608-RSHTN9/CNLLT is a compact single-row deep groove ball bearing, measuring 8mm by 22mm by 7mm. Made from chrome steel with a nylon cage, it offers reliable performance for radial loads up to 630 lbf.

Its sealed design keeps out dust and dirt, making it low-maintenance for various applications. The bearing spins smoothly at speeds up to 34,000 RPM, suitable for high-speed uses.

With a temperature range of -30°C to 120°C, it works well in diverse environments. This model is interchangeable with SKF bearings, ensuring easy replacements.

Ideal for small machinery, electric motors, or skateboards, where smooth rotation is key. Compliant with RoHS and REACH standards, it’s a safe and durable choice. Weighing just 11.8g, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-RSHTN9/CNLLT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-RSHTN9/CNLLT dimension drawing
Download DWG Download PDF

Features

Why Choose 608-RSHTN9/CNLLT Bearing for Precision Tasks?

608-RSHTN9/CNLLT Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and smooth operation in radial load applications.

The nylon cage reduces friction and noise, making it suitable for high-speed environments.
With a maximum speed of 34,000 rpm, it delivers reliable efficiency for precision tasks.

Its compact size (8 mm×22 mm×7 mm) allows for easy integration into various mechanical systems.
The bearing operates effectively within a temperature range of -30°C to 120°C, ensuring versatility.

Application

Common Applications of 608-RSHTN9/CNLLT Bearing
608-RSHTN9/CNLLT Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design helps keep out dust and moisture, ensuring longer service life in everyday conditions.

In robotics, 608-RSHTN9/CNLLT Bearing provides smooth rotation for joints and wheels, thanks to its nylon cage reducing friction. The compact size makes it ideal for space-constrained applications.

For consumer electronics like printers and cooling fans, 608-RSHTN9/CNLLT Bearing offers quiet operation and reliable performance. The chrome steel construction ensures durability even with continuous use.

The ABEC 1 tolerance of 608-RSHTN9/CNLLT Bearing makes it suitable for general machinery where precision is needed without extreme requirements. Its versatility across different fields makes it a popular choice.
