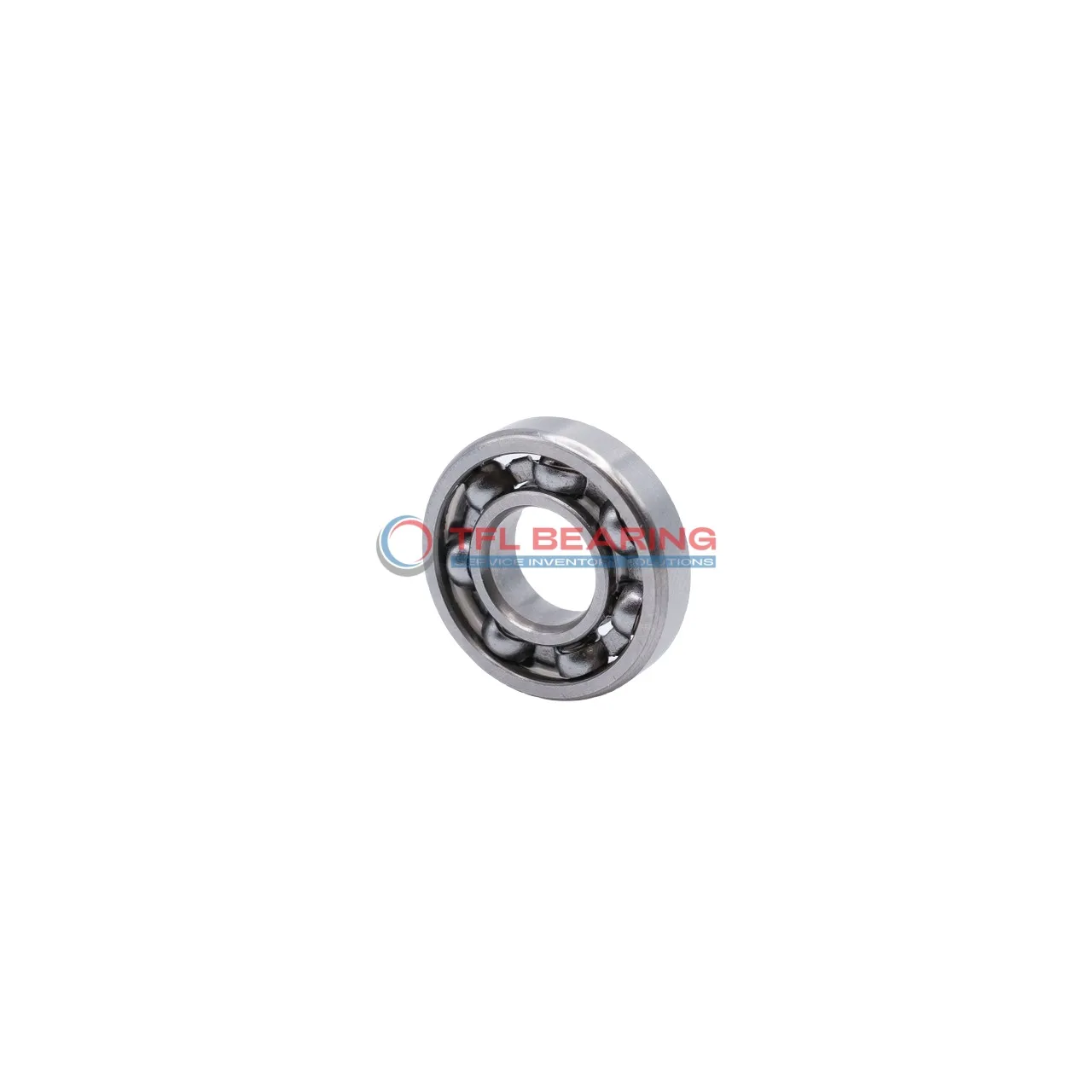

Single Row Deep Groove Ball Bearings 608/560 MA

Single Row Deep Groove Ball Bearings 608/560 MA

The 608/560 MA is a single-row deep groove ball bearing with a large 560mm bore and 680mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 51481 lbf and operates smoothly at speeds up to 1300 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a P6 tolerance class and CN radial clearance, it offers precise performance for demanding applications. Ideal for heavy machinery or industrial equipment where radial load capacity is key.

Weighing 30.5kg, it’s built for robust use while complying with RoHS and REACH standards. Interchangeable with SKF bearings for easy replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608/560 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 560 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 680 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 37 mm
  • Width Tolerance -0.5mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 51481 lbf
  • Static Radial Load 104536 lbf
  • Max Speed 1300 rpm
  • Weight 30500 g
Single Row Deep Groove Ball Bearings 608/560 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 608/560 MA Bearing

608/560 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.

Its dynamic radial load capacity reaches 51481 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.

With a maximum speed of 1,300 rpm, it delivers reliable performance in various conditions.

Application

Industrial Uses of 608/560 MA Bearing
This bearing is commonly used in large industrial equipment like heavy-duty conveyor systems and large fans, where its radial load capacity is essential. The open design allows for easy lubrication, making it suitable for high-load environments.

In automotive applications, 608/560 MA Bearing can be found in large drivetrain components, providing reliable performance under continuous use. Its metric sizing ensures compatibility with various heavy machinery and transport systems.

For automation systems, 608/560 MA Bearing supports large robotic arms and assembly line equipment, where precision and durability are key. The chrome steel construction ensures long-lasting performance even in demanding conditions.

Where Is 608/560 MA Bearing Used?
You’ll often spot this bearing in wind turbine systems, where its ability to handle radial loads is crucial for smooth operation. The stainless steel cage adds extra durability in outdoor and high-wear environments.

In construction machinery, 608/560 MA Bearing is a go-to choice for components like crane rotators, thanks to its high static load capacity. The wide temperature range also makes it versatile for different working conditions.
