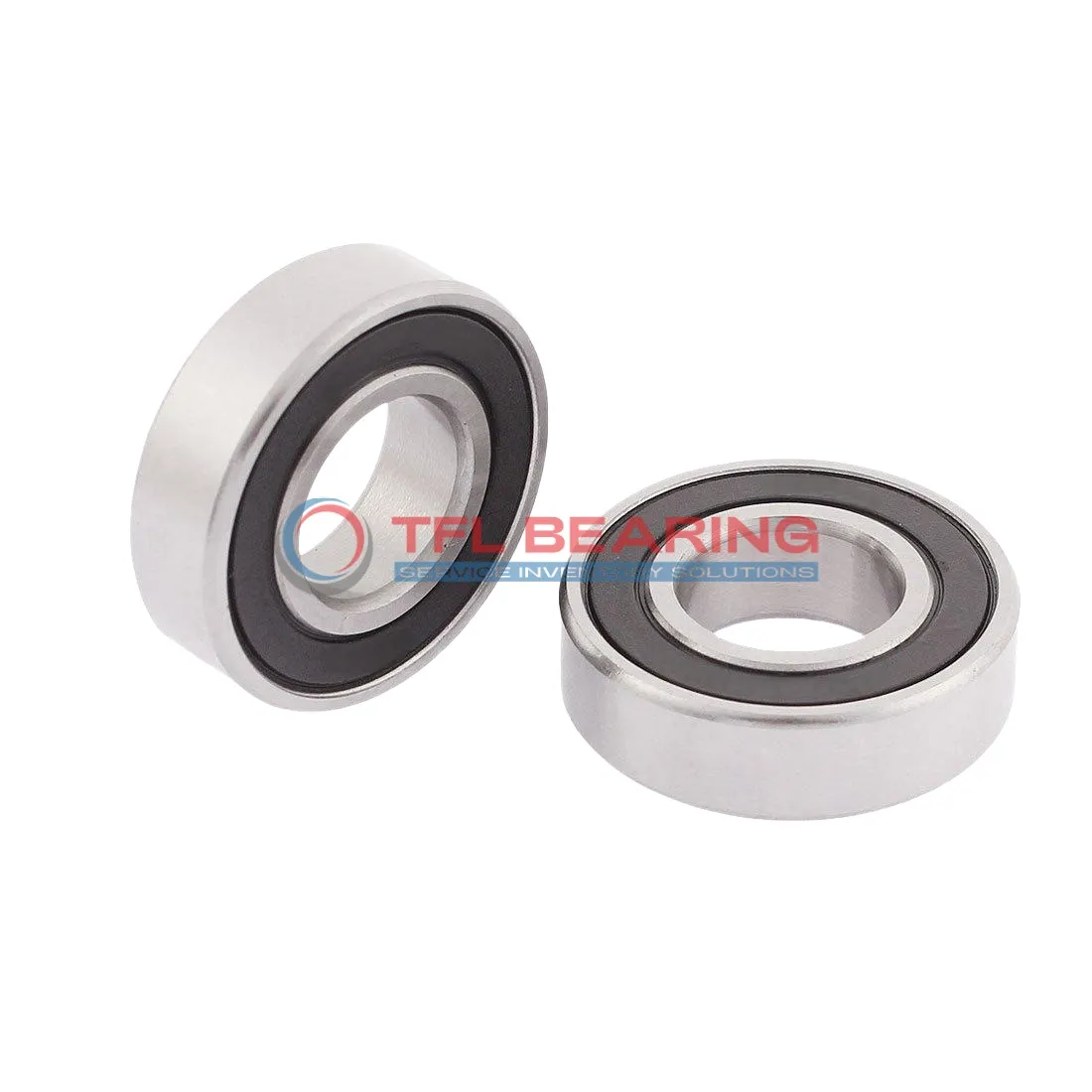

Single Row Deep Groove Ball Bearings 608-2RSH/C3

Single Row Deep Groove Ball Bearings 608-2RSH/C3

The 608-2RSH/C3 is a compact single-row deep groove ball bearing, measuring 8mm by 22mm by 7mm. Made from chrome steel, it offers reliable performance for radial loads up to 630 lbf.

Its sealed design keeps out dust and dirt, making it low-maintenance. The C3 clearance allows for slight expansion under heat, suitable for varied temperatures from -30°C to 120°C.

With a top speed of 34,000 RPM, it’s great for fast-moving parts like skateboard wheels or small electric motors. The bearing is interchangeable with SKF models for easy replacements.

Weighing just 11.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for everyday applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2RSH/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
  • price（$） 1.863
Single Row Deep Groove Ball Bearings 608-2RSH/C3 dimension drawing
Download DWG Download PDF

Features

How Does 608-2RSH/C3 Bearing Reduce Friction?

608-2RSH/C3 Bearing features a sealed design, keeping contaminants out and lubrication in for smooth operation.
Its chrome steel construction ensures durability and reduces friction, even at high speeds up to 34,000 rpm.

The single-row deep groove design handles radial loads efficiently, with a dynamic load capacity of 630 lbf.
This makes it suitable for applications where reliability and low maintenance are key.

With a temperature range of -30° to 120°C, 608-2RSH/C3 Bearing performs well in varied environments.
The C3 radial clearance provides optimal performance under different operating conditions.

Application

Common Applications of 608-2RSH/C3 Bearing
This bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design helps keep out dust and moisture, extending the bearing’s lifespan.

In skateboards and inline skates, 608-2RSH/C3 Bearing provides smooth rotation for wheels while handling radial loads effectively. The C3 clearance allows for slight thermal expansion during high-speed use.

For office equipment like printers and scanners, this bearing offers quiet operation and reliable performance. Its compact 8mm bore size makes it suitable for various small mechanical components.

608-2RSH/C3 Bearing also works well in cooling fans, where its chrome steel construction resists wear from continuous operation. The ABEC 1 tolerance ensures consistent performance across different applications.
