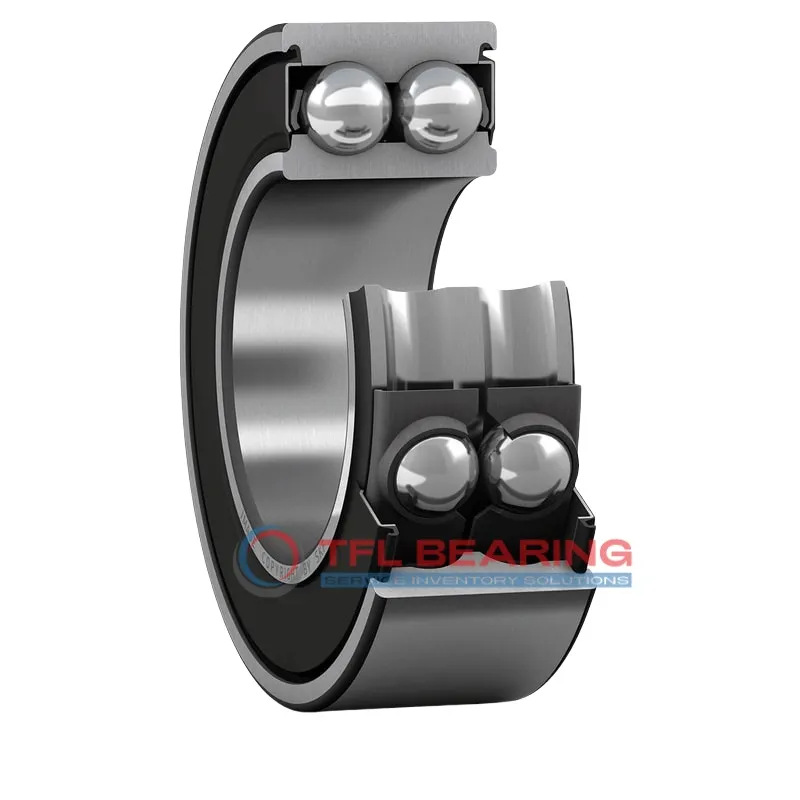

Double Row Angular Contact Ball Bearings (General) 3200 A-2RS1TN9/MT33

Double Row Angular Contact Ball Bearings (General) 3200 A-2RS1TN9/MT33

The 3200 A-2RS1TN9/MT33 is a double-row angular contact ball bearing with a compact 10mm bore and 30mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1712 lbf and spins smoothly at speeds up to 17,000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the stainless steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like pumps or small machinery where angular contact loads are needed.

Weighing just 0.051kg, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3200 A-2RS1TN9/MT33
  • Brand TFL & OEM
  • Interchangeable With SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Double Row
  • Seal Type Sealed
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 14 mm
  • Width Tolerance -0.05mm to 0
  • Chamfer Dimension 0.6 mm
  • Distance Pressure Point (a) 16 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1712 lbf
  • Static Radial Load 968 lbf
  • Max Speed 17000 rpm
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Weight 0.051 kg
Double Row Angular Contact Ball Bearings (General) 3200 A-2RS1TN9/MT33 dimension drawing
Download DWG Download PDF

Features

Performance Features of 3200 A-2RS1TN9/MT33 Bearing

3200 A-2RS1TN9/MT33 Bearing is built with double-row angular contact design, ideal for handling combined radial and axial loads.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.
The chrome steel rings and balls provide durability, while the stainless steel cage maintains alignment.
With a maximum speed of 17,000 rpm, it offers reliable performance for high-speed applications.

Application

Key Fields for 3200 A-2RS1TN9/MT33 Bearing
3200 A-2RS1TN9/MT33 Bearing is commonly used in industrial machinery, especially where double-row support is needed for handling combined radial and axial loads. Its sealed design helps keep contaminants out, making it suitable for dusty environments like conveyor systems.

In automotive applications, 3200 A-2RS1TN9/MT33 Bearing works well in wheel hubs and transmissions, where its angular contact design improves stability. The metric sizing ensures compatibility with a variety of vehicle models.

For automation equipment, 3200 A-2RS1TN9/MT33 Bearing’s stainless steel cage and chrome steel rings provide reliable performance in robotic arms. The P6 tolerance class ensures precision in repetitive movements.

In consumer electronics, 3200 A-2RS1TN9/MT33 Bearing can be found in devices like printers, where smooth operation is essential. Its lubricated design reduces maintenance needs, extending the lifespan of the equipment.
