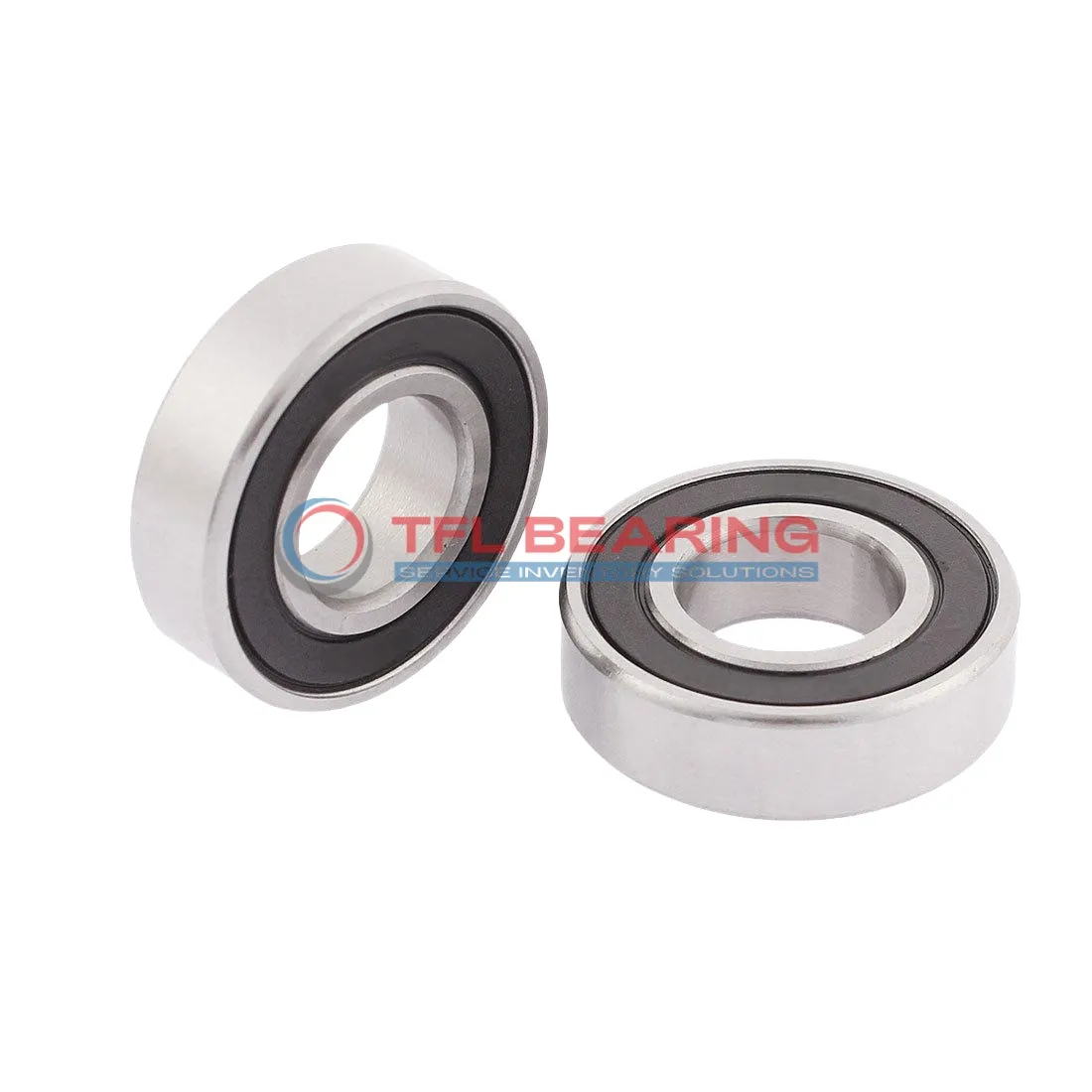

Single Row Deep Groove Ball Bearings 608-2RSH/C2ELHT23

Single Row Deep Groove Ball Bearings 608-2RSH/C2ELHT23

The 608-2RSH/C2ELHT23 is a compact single-row deep groove ball bearing with an 8mm bore and 22mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 630 lbf and spins smoothly at speeds up to 34,000 RPM.

Its sealed design keeps out dust and moisture, while the C2 radial clearance ensures reliable performance under light loads. The bearing operates efficiently in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like small motors, skateboards, or inline skates where smooth rotation is key.

Weighing just 11.8g, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2RSH/C2ELHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-2RSH/C2ELHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 608-2RSH/C2ELHT23 Bearing

608-2RSH/C2ELHT23 Bearing is designed with chrome steel rings and balls, offering reliable radial load handling.
Its dynamic radial load capacity reaches 630 lbf, making it suitable for various applications.

The sealed design of 608-2RSH/C2ELHT23 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 34,000 rpm, it ensures smooth and efficient operation.

608-2RSH/C2ELHT23 Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its C2 radial clearance provides optimal performance for precision tasks.

Application

Common Applications of 608-2RSH/C2ELHT23 Bearing
608-2RSH/C2ELHT23 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design helps keep out dust and moisture, ensuring longer service life in everyday conditions.

In skateboards and inline skates, 608-2RSH/C2ELHT23 Bearing provides smooth rolling performance thanks to its deep groove design. The chrome steel construction offers good durability for recreational use.

For office equipment like printers and scanners, 608-2RSH/C2ELHT23 Bearing operates quietly at high speeds. The C2 clearance makes it suitable for applications where minimal vibration is important.

Where Is 608-2RSH/C2ELHT23 Bearing Used?
You’ll often find 608-2RSH/C2ELHT23 Bearing in cooling fans for computers and electronics. Its compact size and reliable performance make it ideal for continuous operation in tight spaces.

The bearing also works well in small conveyor systems for light packaging lines. The sealed design protects against contaminants in industrial environments.

Perfect Fit for Automation: 608-2RSH/C2ELHT23 Bearing
608-2RSH/C2ELHT23 Bearing performs reliably in robotic arm joints and small automation components. Its balanced design handles both radial and light axial loads effectively.

In 3D printers, this bearing ensures precise movement of print heads and build platforms. The temperature range suits various printing materials and conditions.
