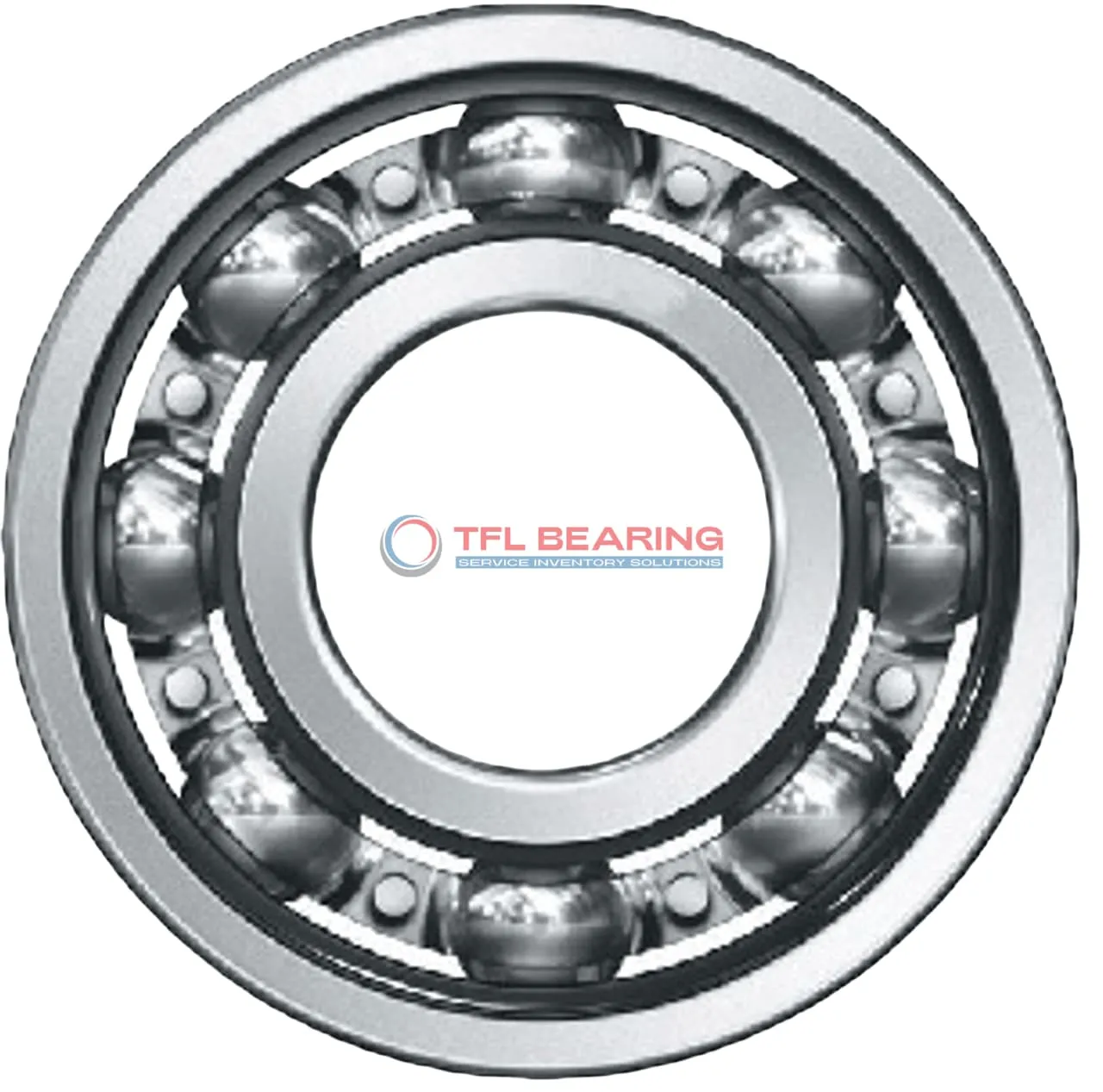

Single Row Deep Groove Ball Bearings 6076 M

Single Row Deep Groove Ball Bearings 6076 M

The 6076 M is a single-row deep groove ball bearing with a 380mm bore and 560mm outer diameter, crafted from sturdy chrome steel for long-lasting performance. It handles radial loads up to 98017 lbf and operates smoothly at speeds up to 1800 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability under heavy loads. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery or heavy equipment where radial load capacity is key.

Weighing 70.4kg, it’s built for robust applications. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6076 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 560 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 82 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 98017 lbf
  • Static Radial Load 156242 lbf
  • Max Speed 1800 rpm
  • Weight 70400 g
  • price（$） 2144.97
Single Row Deep Groove Ball Bearings 6076 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6076 M Bearing

6076 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 98017 lbf, ensuring reliable performance in heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 1,800 rpm, it balances durability and efficiency in operation.

6076 M Bearing operates smoothly in temperatures from -30° to 120°C.
Its open design allows for easy installation and maintenance, saving time and effort.

The precision P6 tolerance class ensures consistent performance.
This makes 6076 M Bearing suitable for demanding industrial environments.

Application

Industrial Uses of 6076 M Bearing
6076 M Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. The open seal type ensures easy access for maintenance, making it suitable for demanding environments.

In wind turbine applications, 6076 M Bearing supports the main shaft, providing reliable performance under varying wind conditions. Its chrome steel construction offers durability, while the stainless steel cage reduces wear over time.

For mining equipment, 6076 M Bearing excels in conveyor systems and crushers, where its high load capacity and tolerance to harsh conditions are essential. The P6 tolerance class ensures precise operation even in rugged settings.

Automotive vs Aerospace: Applications of 6076 M Bearing
In automotive manufacturing, 6076 M Bearing is found in large presses and assembly line equipment, where its radial load capacity is crucial. The metric sizing makes it compatible with standard industrial machinery.

Aerospace applications benefit from 6076 M Bearing in ground support equipment, such as aircraft tugs and loading systems. Its temperature range and compliance with REACH regulations make it a dependable choice for these specialised tasks.
