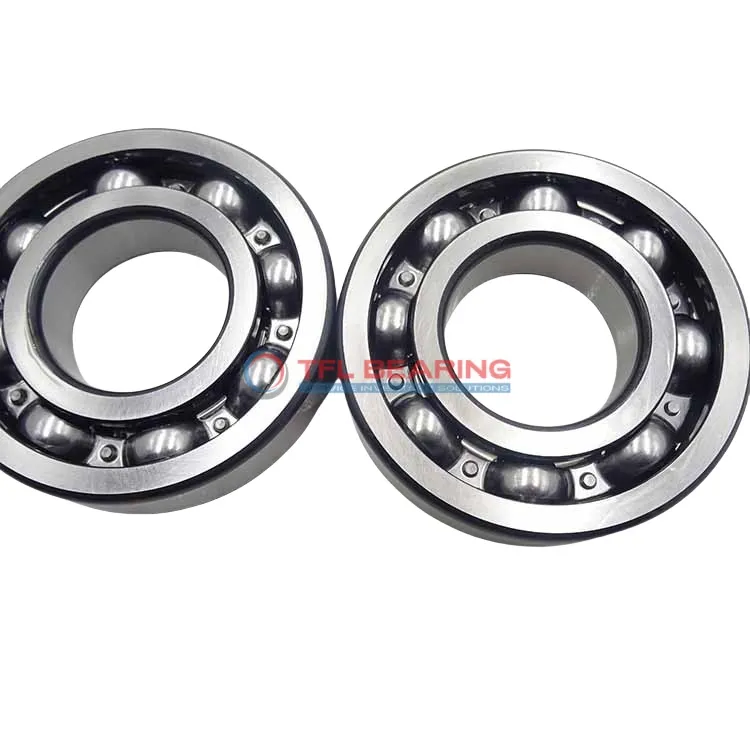

Single Row Deep Groove Ball Bearings 6036 M

Single Row Deep Groove Ball Bearings 6036 M

The 6036 M is a single-row deep groove ball bearing with a 180mm bore and 280mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 42714 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial motors or conveyor systems where radial loads are prevalent.

Weighing 10.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6036 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 46 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 42714 lbf
  • Static Radial Load 44962 lbf
  • Max Speed 4000 rpm
  • Weight 10300 g
  • price（$） 215.748
Single Row Deep Groove Ball Bearings 6036 M dimension drawing
Download DWG Download PDF

Features

Core Advantages of 6036 M Bearing

6036 M Bearing features chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 42714 lbf, making it reliable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 4,000 rpm, it delivers consistent performance under stress.

6036 M Bearing operates in temperatures from -30° to 120°C, suitable for varied environments.
Its P6 tolerance class provides precise operation, ideal for demanding industrial uses.

The open design simplifies maintenance, while the robust construction extends service life.
This bearing is a cost-effective choice for radial load applications requiring durability.

Application

Industrial Uses of 6036 M Bearing
The 6036 M Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 6036 M Bearing fits well in wheel hubs and transmission systems, providing smooth rotation under high loads. The P6 tolerance class makes it suitable for precision automotive components.

For automation equipment, 6036 M Bearing supports robotic arms and conveyor belts, thanks to its reliable performance and open design. The stainless steel cage adds extra resistance to wear in continuous operation.

Where Is 6036 M Bearing Used?
You’ll often find 6036 M Bearing in wind turbines, where its large size and radial load capacity are ideal for rotor shafts. The metric dimensions make it compatible with European-designed systems.

In household appliances like washing machines, 6036 M Bearing ensures quiet and efficient operation. Its temperature range allows it to handle both hot and cold conditions without issues.
