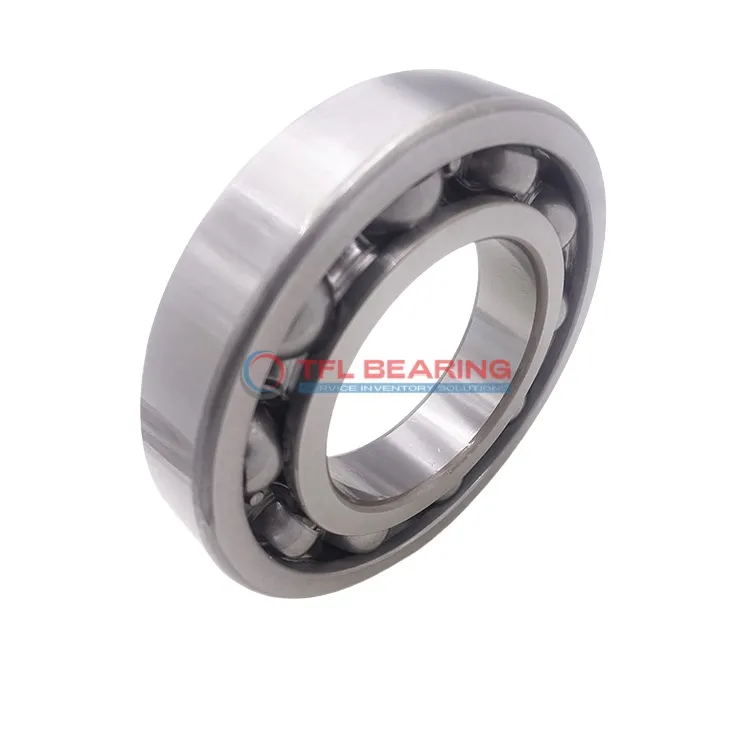

Single Row Deep Groove Ball Bearings 6032

Single Row Deep Groove Ball Bearings 6032

The 6032 is a single-row deep groove ball bearing with a 160mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 32148 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design allows for easy lubrication, while the precision P6 tolerance ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 5210g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6032
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 38 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 32148 lbf
  • Static Radial Load 32148 lbf
  • Max Speed 3600 rpm
  • Weight 5210 g
  • price（$） 163.98
Single Row Deep Groove Ball Bearings 6032 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6032 Bearing

6032 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 32148 lbf, ensuring reliable performance in various applications.

The single row deep groove design provides smooth operation and reduces friction.
With a maximum speed of 3,600 rpm, it balances durability and efficiency.

6032 Bearing operates in temperatures from -30° to 120°C, making it suitable for diverse environments.
Its P6 tolerance class ensures precise performance in demanding conditions.

Application

Industrial Uses of 6032 Bearing
The 6032 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its robust radial load capacity ensures reliable performance.
Its open design and P6 tolerance make it suitable for precision applications, reducing friction and wear over time.

Where Is 6032 Bearing Used?
You’ll often find the 6032 Bearing in conveyor systems and electric motors, thanks to its ability to handle high radial loads smoothly.
The chrome steel construction also makes it durable in environments with varying temperatures, from -30° to 120°C.

Built for Heavy-Duty Use: 6032 Bearing
In agricultural equipment, the 6032 Bearing supports rotating shafts and gears, providing stability under heavy loads.
Its metric sizing and compatibility with SKF models make it a versatile choice for global machinery standards.

Automotive vs Industrial: Applications of 6032 Bearing
While the 6032 Bearing fits well in industrial gearboxes, it’s also seen in large vehicle transmissions where radial load support is key.
The 160 mm bore size accommodates thicker shafts, making it ideal for heavy-duty applications.

Perfect Fit for Automation: 6032 Bearing
In automated production lines, the 6032 Bearing ensures smooth rotation for robotic arms and assembly units.
Its static and dynamic load ratings of 32148 lbf make it dependable for continuous operation.
