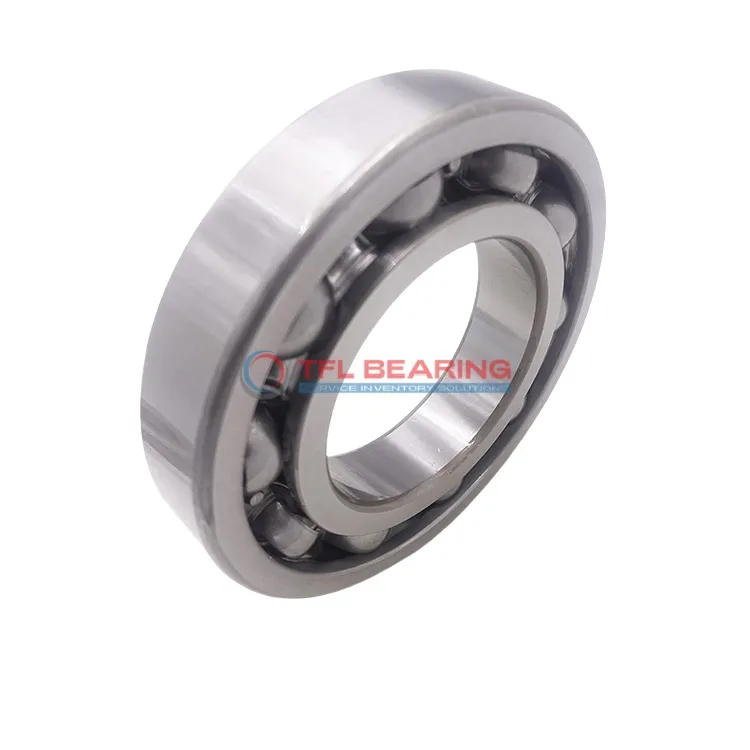

Single Row Deep Groove Ball Bearings 6032 M

Single Row Deep Groove Ball Bearings 6032 M

The 6032 M is a single-row deep groove ball bearing with a 160mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32148 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for industrial machinery or heavy equipment where radial load support is key.

Weighing 6.02kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6032 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 38 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 32148 lbf
  • Static Radial Load 32148 lbf
  • Max Speed 4800 rpm
  • Weight 6.02 kg
  • price（$） 178.497
Single Row Deep Groove Ball Bearings 6032 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6032 M Bearing

6032 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 32148 lbf, making it suitable for demanding applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 4,800 rpm, it balances performance and durability.

6032 M Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

The precision P6 tolerance class ensures reliable performance in various conditions.
This makes 6032 M Bearing a practical choice for industrial and mechanical uses.

Application

Industrial Uses of 6032 M Bearing
6032 M Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently. The open seal type simplifies lubrication, making maintenance straightforward in dusty environments.

How Does 6032 M Bearing Improve Performance?
In conveyor systems, 6032 M Bearing’s chrome steel construction ensures durability under continuous operation. Its P6 tolerance class provides the precision needed for smooth material handling.

Built for Heavy-Duty Use: 6032 M Bearing
This bearing fits well in agricultural equipment, such as harvesters, thanks to its robust stainless steel cage. The wide temperature range also makes it suitable for outdoor use in varying climates.

Automotive vs Aerospace: Applications of 6032 M Bearing
In automotive wheel hubs, 6032 M Bearing offers reliable performance under radial stress. While not typically used in aerospace, its metric sizing works well in European commercial vehicles.

Perfect Fit for Automation: 6032 M Bearing
For robotic arms in manufacturing, 6032 M Bearing’s high dynamic load capacity supports precise movements. The CN radial clearance ensures minimal friction during high-speed operations.
