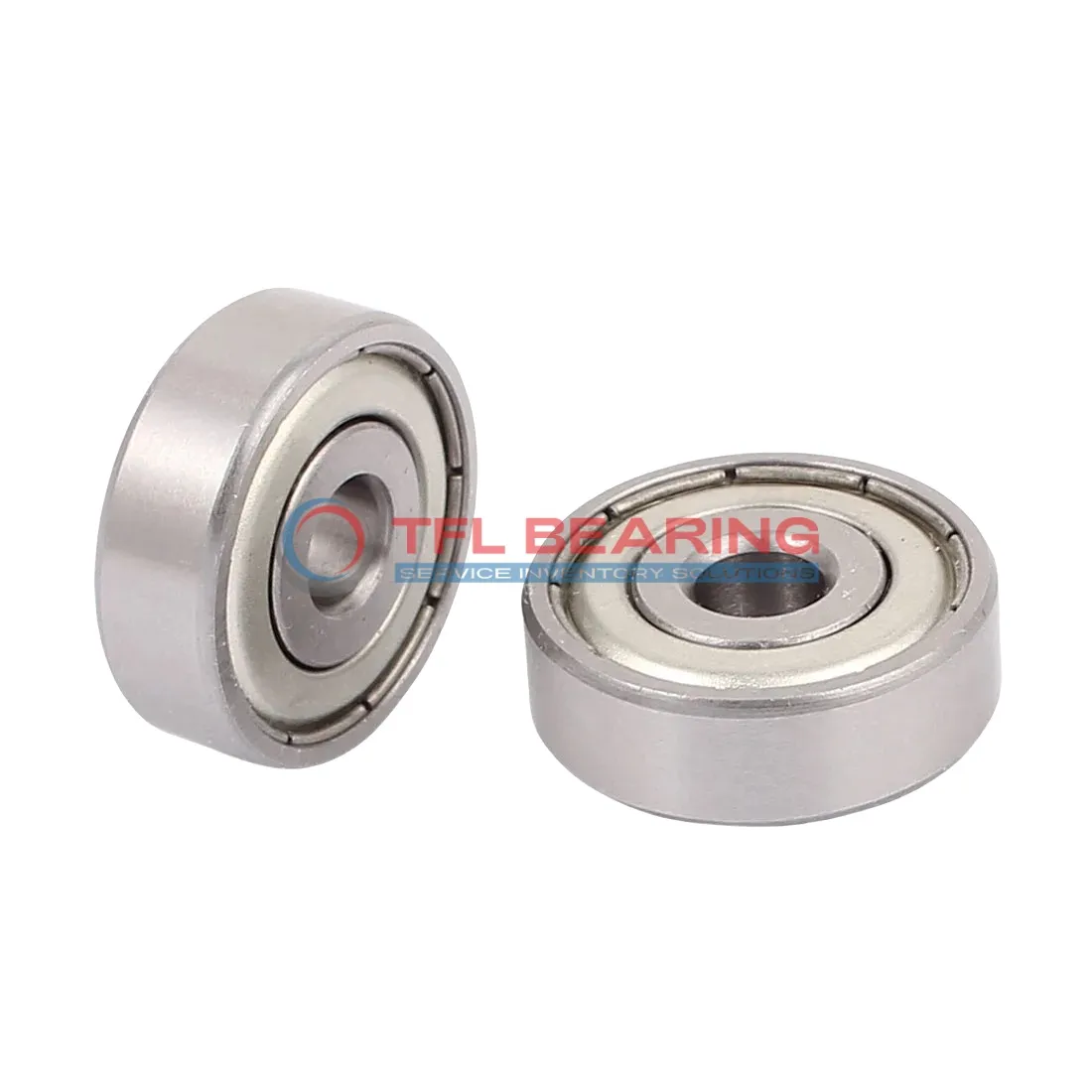

Single Row Deep Groove Ball Bearings 6032-2Z

Single Row Deep Groove Ball Bearings 6032-2Z

The 6032-2Z is a single-row deep groove ball bearing with a 160mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32148 lbf and operates smoothly at speeds up to 2800 RPM.

Its shielded design keeps dirt out while retaining grease, making it low-maintenance. The stainless steel cage adds durability, and it performs well in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s suited for heavy-duty applications like industrial motors or pumps where radial loads are common.

Weighing 5.38kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6032-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 38 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 32148 lbf
  • Static Radial Load 32148 lbf
  • Max Speed 2800 rpm
  • Weight 5.38 kg
  • price（$） 198.216
Single Row Deep Groove Ball Bearings 6032-2Z dimension drawing
Download DWG Download PDF

Features

Performance Features of 6032-2Z Bearing

6032-2Z Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 32,148 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing wear and extending service life.
With a maximum speed of 2,800 rpm, it balances durability and efficiency.

6032-2Z Bearing operates smoothly in temperatures from -30° to 120°C, suitable for diverse environments.
Its shielded design helps keep contaminants out, reducing maintenance needs.

Application

Industrial Uses of 6032-2Z Bearing
The 6032-2Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. Its high dynamic radial load capacity makes it suitable for heavy-duty applications.

In automotive systems, 6032-2Z Bearing provides reliable performance in wheel hubs and transmission systems. The grease lubrication ensures smooth operation even under continuous use.

For automation equipment, 6032-2Z Bearing’s precision tolerance class P6 ensures accurate movement in robotic arms. The stainless steel cage adds durability in high-speed scenarios.

Where Is 6032-2Z Bearing Used?
You’ll often find 6032-2Z Bearing in conveyor systems, where its radial load handling keeps things running smoothly. The chrome steel construction offers long-lasting performance in demanding environments.

In household appliances like washing machines, 6032-2Z Bearing’s shielded design protects against dust and moisture. Its wide temperature range makes it versatile for various climates.

Built for Heavy-Duty Use: 6032-2Z Bearing
The 6032-2Z Bearing handles heavy loads in construction equipment like compactors and mixers. Its metric sizing ensures compatibility with a range of machinery.

For agricultural machinery, 6032-2Z Bearing’s robust design withstands harsh conditions. The grease lubrication reduces maintenance needs in dusty environments.

Light-Duty vs Heavy-Duty: Best Uses for 6032-2Z Bearing
In light-duty applications like office printers, 6032-2Z Bearing offers quiet and efficient operation. The shielded design keeps internal components clean.

For heavy-duty industrial fans, 6032-2Z Bearing’s high load capacity ensures reliable performance. The stainless steel cage resists corrosion in humid conditions.
