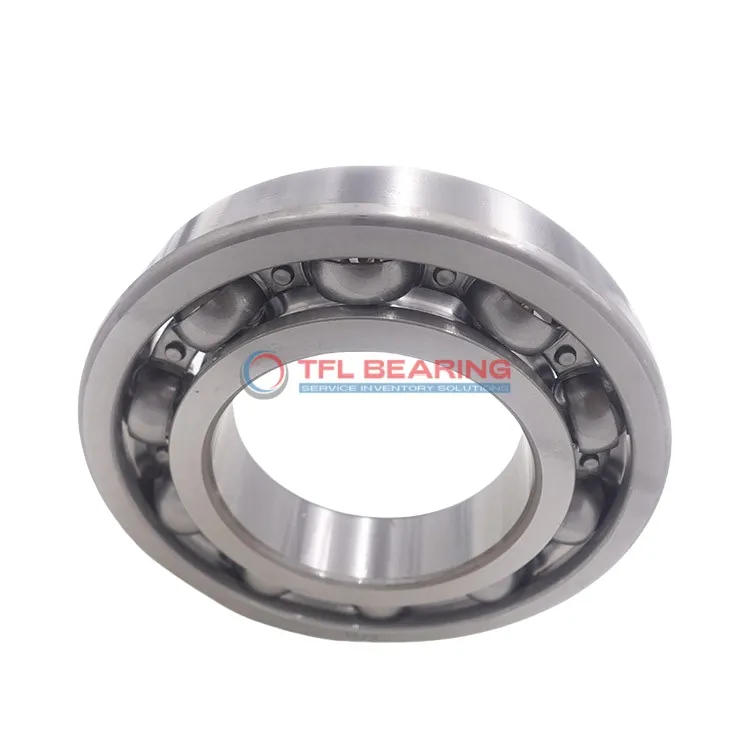

Single Row Deep Groove Ball Bearings 6030

Single Row Deep Groove Ball Bearings 6030

The 6030 is a single-row deep groove ball bearing with a 150mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 28101 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design simplifies maintenance, while the precision P6 tolerance ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 4290g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6030
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 35 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 28101 lbf
  • Static Radial Load 28101 lbf
  • Max Speed 3800 rpm
  • Weight 4290 g
  • price（$） 132.84
Single Row Deep Groove Ball Bearings 6030 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6030 Bearing

6030 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 28101 lbf, ensuring reliable performance in various applications.
The open design allows for easy lubrication and maintenance, enhancing its usability.
With a maximum speed of 3,800 rpm, it provides a balance between durability and efficiency.

How Is 6030 Bearing Engineered for Reliability?

6030 Bearing features a single row deep groove design, optimised for smooth radial load handling.
The chrome steel construction ensures durability, even in temperatures ranging from -30° to 120°C.
Its precision P6 tolerance class guarantees consistent performance in demanding conditions.
The open seal type simplifies inspection and maintenance, reducing downtime.

Built for Durability: 6030 Bearing

6030 Bearing’s robust chrome steel components resist wear, extending its service life.
The 150 mm bore diameter and 225 mm outer diameter provide a stable fit for heavy-duty applications.
Weighing 4290 g, it maintains structural integrity without compromising performance.
Its compliance with RoHS and REACH standards ensures environmental and safety compatibility.

Steel vs Ceramic Bearings: Strengths of 6030 Bearing

6030 Bearing’s chrome steel construction offers a cost-effective solution with high load capacity.
Unlike ceramic bearings, it performs reliably in a wide temperature range from -30° to 120°C.
The open design allows for easy access, making lubrication and maintenance straightforward.
With a static radial load capacity of 28101 lbf, it handles heavy loads with ease.

Why Choose 6030 Bearing for Precision Tasks?

6030 Bearing’s P6 tolerance class ensures high precision for radial load applications.
The deep groove design minimises friction, promoting smooth and quiet operation.
Its chrome steel components provide long-lasting performance in various environments.
The 35 mm width offers a compact yet sturdy solution for space-constrained installations.

Application

Industrial Uses of 6030 Bearing
The 6030 Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its single-row design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 6030 Bearing fits well in wheel hubs and transmission systems, providing reliable performance under constant motion. The P6 tolerance class offers precision for smoother operation.

For automation equipment, 6030 Bearing supports robotic arms and conveyor belts, thanks to its balanced load capacity. The open seal design allows for easy lubrication, extending its service life.

In household appliances like washing machines, 6030 Bearing’s metric sizing and radial load capability make it a practical choice. Its temperature range suits both indoor and outdoor use.
