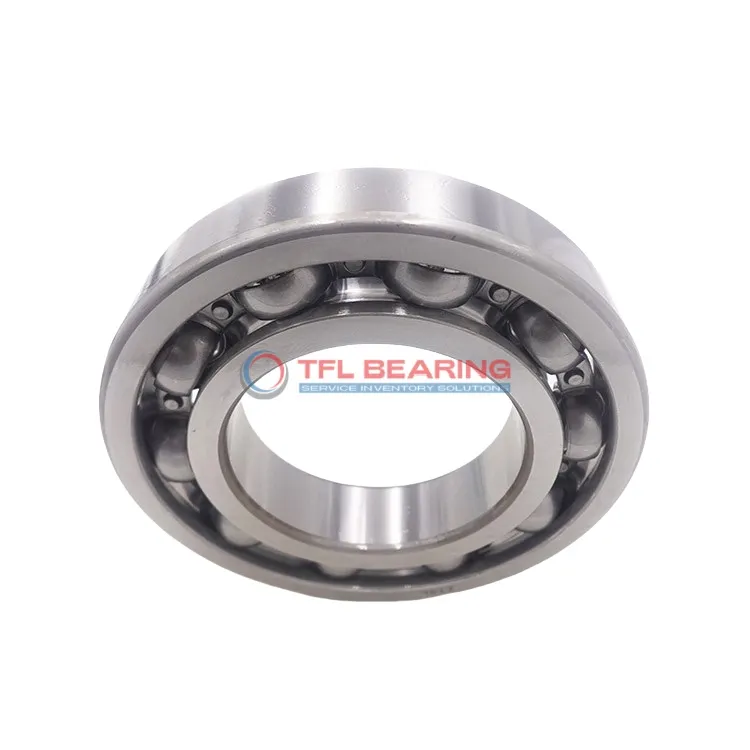

Single Row Deep Groove Ball Bearings 6028/W64

Single Row Deep Groove Ball Bearings 6028/W64

The 6028/W64 is a single-row deep groove ball bearing with a 140mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 24954 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design and solid oil lubrication ensure easy maintenance and consistent performance. The bearing works reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 3450g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6028/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 24954 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 4000 rpm
  • Weight 3450 g
Single Row Deep Groove Ball Bearings 6028/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6028/W64 Bearing

6028/W64 Bearing is crafted with chrome steel rings and balls, ensuring durability and resistance to wear.
Its solid oil lubrication system provides consistent performance, reducing the need for frequent maintenance.

The bearing handles dynamic radial loads up to 24,954 lbf, making it suitable for heavy-duty applications.
With a maximum speed of 4,000 rpm, it offers reliable operation in various industrial settings.

6028/W64 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its open design allows for easy inspection and maintenance, enhancing long-term usability.

The ABEC 1 tolerance class ensures consistent performance, meeting ISO P0 standards.
This makes 6028/W64 Bearing a practical choice for precision radial load applications.

Application

Key Fields for 6028/W64 Bearing
In industrial settings, 6028/W64 Bearing is commonly used in large machinery like pumps and compressors, where its deep groove design handles radial loads effectively. The solid oil lubrication ensures long service life even in demanding conditions.

Where Is 6028/W64 Bearing Used?
You’ll often find 6028/W64 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its ABEC 1 tolerance makes it suitable for standard precision requirements.

Built for Heavy-Duty Use: 6028/W64 Bearing
For automation systems, 6028/W64 Bearing provides reliable performance in conveyor belts and robotic arms. The open seal type allows for easy inspection and maintenance, which is handy in high-use environments.

Light-Duty vs Heavy-Duty: Best Uses for 6028/W64 Bearing
In consumer electronics like large fans, 6028/W64 Bearing offers quiet operation due to its smooth ball movement. The wide temperature range also makes it adaptable to various climates and conditions.
