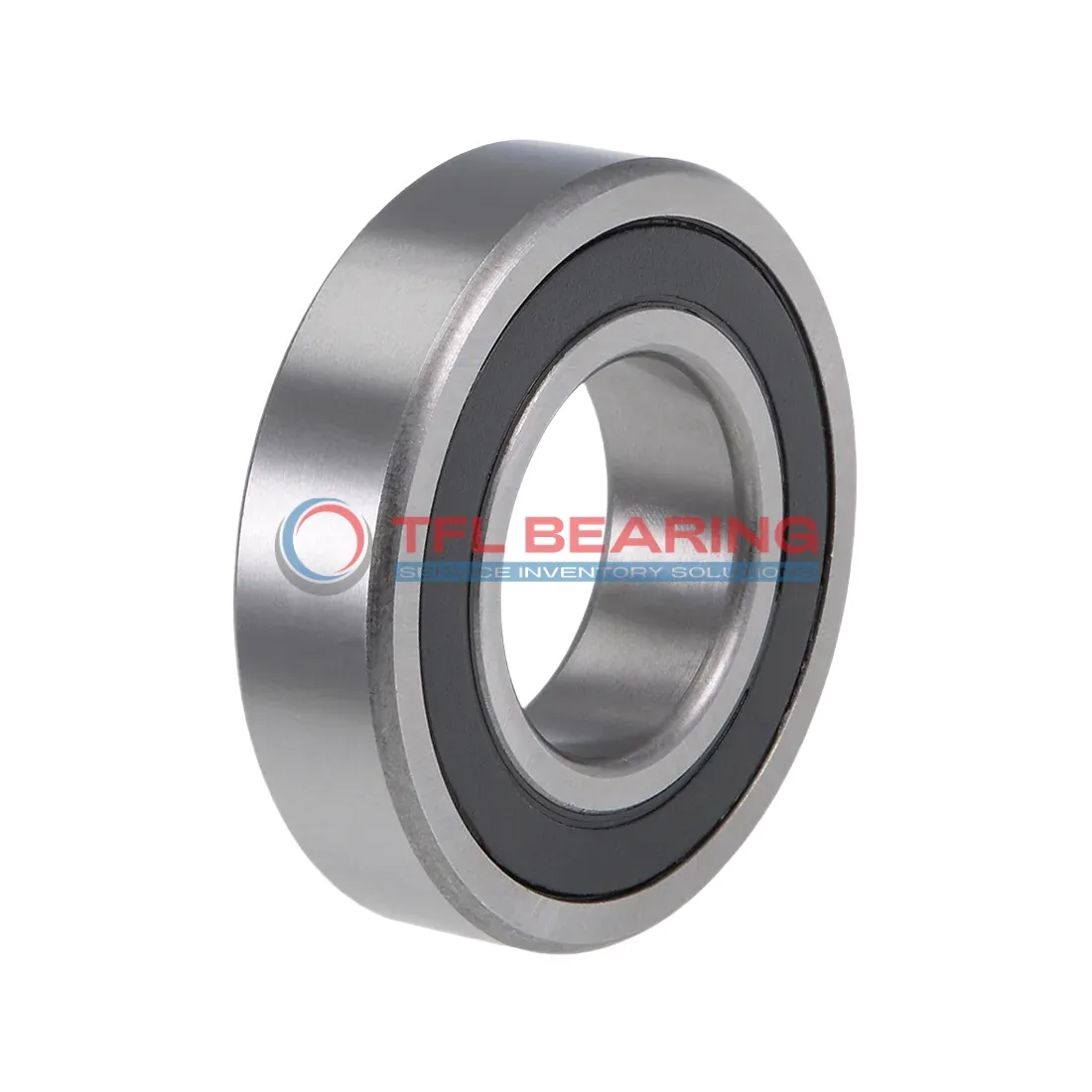

Single Row Deep Groove Ball Bearings 6028-2RS1/W64

Single Row Deep Groove Ball Bearings 6028-2RS1/W64

The 6028-2RS1/W64 is a single-row deep groove ball bearing with a 140mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 24954 lbf and operates smoothly at speeds up to 4000 RPM.

Its sealed design keeps lubrication intact, while the solid oil ensures long-term performance with minimal maintenance. The bearing works reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or industrial pumps where radial loads are common.

Weighing 3450g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6028-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 24954 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 4000 rpm
  • Weight 3450 g
  • price（$） 201.384
Single Row Deep Groove Ball Bearings 6028-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

How Does 6028-2RS1/W64 Bearing Reduce Friction?

6028-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction of rings and balls enhances durability while maintaining efficient performance.

With a dynamic radial load capacity of 24,954 lbf, it handles heavy loads reliably.
Its maximum speed of 4,000 rpm makes it suitable for various industrial applications.

The ABEC 1 tolerance and ISO P0 standard ensure consistent precision.
It operates effectively in temperatures ranging from -30°C to 120°C, adapting to different working conditions.

Application

Common Applications of 6028-2RS1/W64 Bearing
6028-2RS1/W64 Bearing is widely used in industrial machinery, especially in heavy-duty equipment like pumps and compressors. Its sealed design helps keep contaminants out, ensuring long-lasting performance in harsh environments.

In automotive applications, 6028-2RS1/W64 Bearing is often found in wheel hubs and transmission systems, where its radial load capacity and solid oil lubrication provide reliable operation. The metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 6028-2RS1/W64 Bearing supports smooth movement in robotic arms and conveyor belts. The chrome steel construction and sealed design make it suitable for high-precision tasks in manufacturing lines.

In household appliances like washing machines, 6028-2RS1/W64 Bearing ensures quiet and efficient operation. Its durability and low maintenance requirements make it a practical choice for everyday use.
