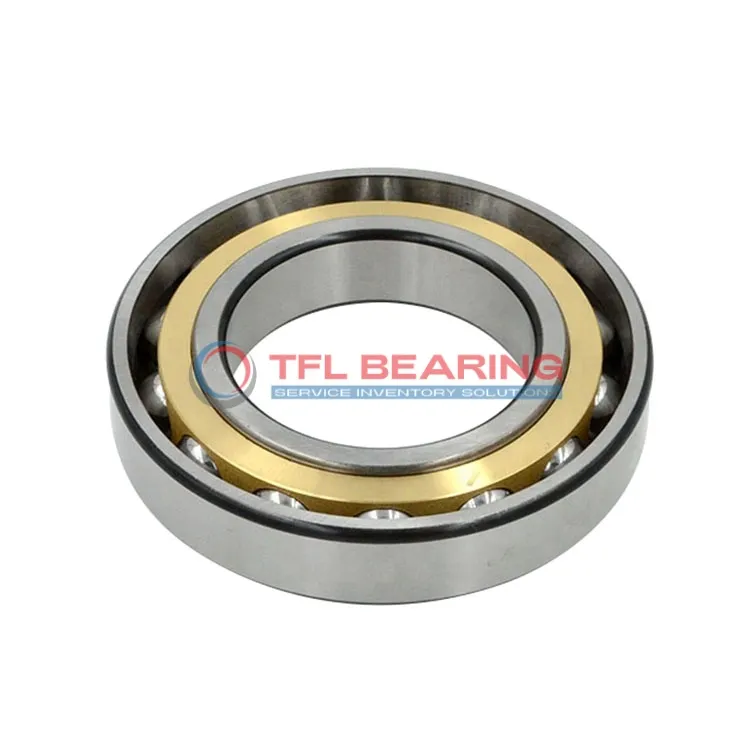

Single Row Angular Contact Ball Bearings (General) 7024 BGM

Single Row Angular Contact Ball Bearings (General) 7024 BGM

The 7024 BGM is a single-row angular contact ball bearing with a 120mm bore and 180mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently handles combined radial and thrust loads, supporting up to 19598 lbf dynamically.

The open design allows easy lubrication, while the brass cage ensures smooth operation at speeds up to 4000 RPM. With a P6 tolerance class, it offers reliable precision for demanding applications.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. It performs well in temperatures from -30°C to 110°C, suitable for industrial machinery or gear systems.

Weighing 2.4kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and durable option for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7024 BGM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 143.6 mm
  • External Diameter On Inner Ring (Small Side Face) 132.95 mm
  • Internal Diameter On Outer Ring 157.9 mm
  • Chamfer Dimension 2 mm
  • Distance Pressure Point (a) 77 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 19598 lbf
  • Static Radial Load 20925 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 2.4 kg
Single Row Angular Contact Ball Bearings (General) 7024 BGM dimension drawing
Download DWG Download PDF

Features

Why Choose 7024 BGM Bearing for Precision Tasks?

7024 BGM Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the brass cage maintains alignment for smooth operation.

With a dynamic radial load capacity of 19,598 lbf, it performs reliably in demanding applications.
The P6 tolerance class (ABEC-3) guarantees consistent performance for precision tasks.

Operating at speeds up to 4,000 rpm, 7024 BGM Bearing balances speed and stability.
Its open design allows for easy lubrication, extending service life in various conditions.

The temperature range of -30° to 110°C ensures versatility across different environments.
Weighing just 2.4 kg, it offers a practical solution without compromising on strength.

Application

Industrial Uses of 7024 BGM Bearing
7024 BGM Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The brass cage reduces friction, making it suitable for high-precision applications.

In automotive systems, 7024 BGM Bearing supports components like wheel hubs and transmissions, ensuring smooth performance under angular loads. Its P6 tolerance class provides the accuracy needed for reliable operation in vehicles.

For automation equipment, 7024 BGM Bearing’s open design allows easy lubrication, extending service life in robotic arms and conveyor systems. The chrome steel construction ensures durability in continuous operation.

Medical imaging devices benefit from 7024 BGM Bearing’s stable performance, where consistent rotation is critical. The metric sizing ensures compatibility with a range of European and Asian medical equipment.

In household appliances like washing machines, 7024 BGM Bearing’s balanced load capacity reduces vibration and noise. Its temperature range makes it adaptable to various operating conditions.
