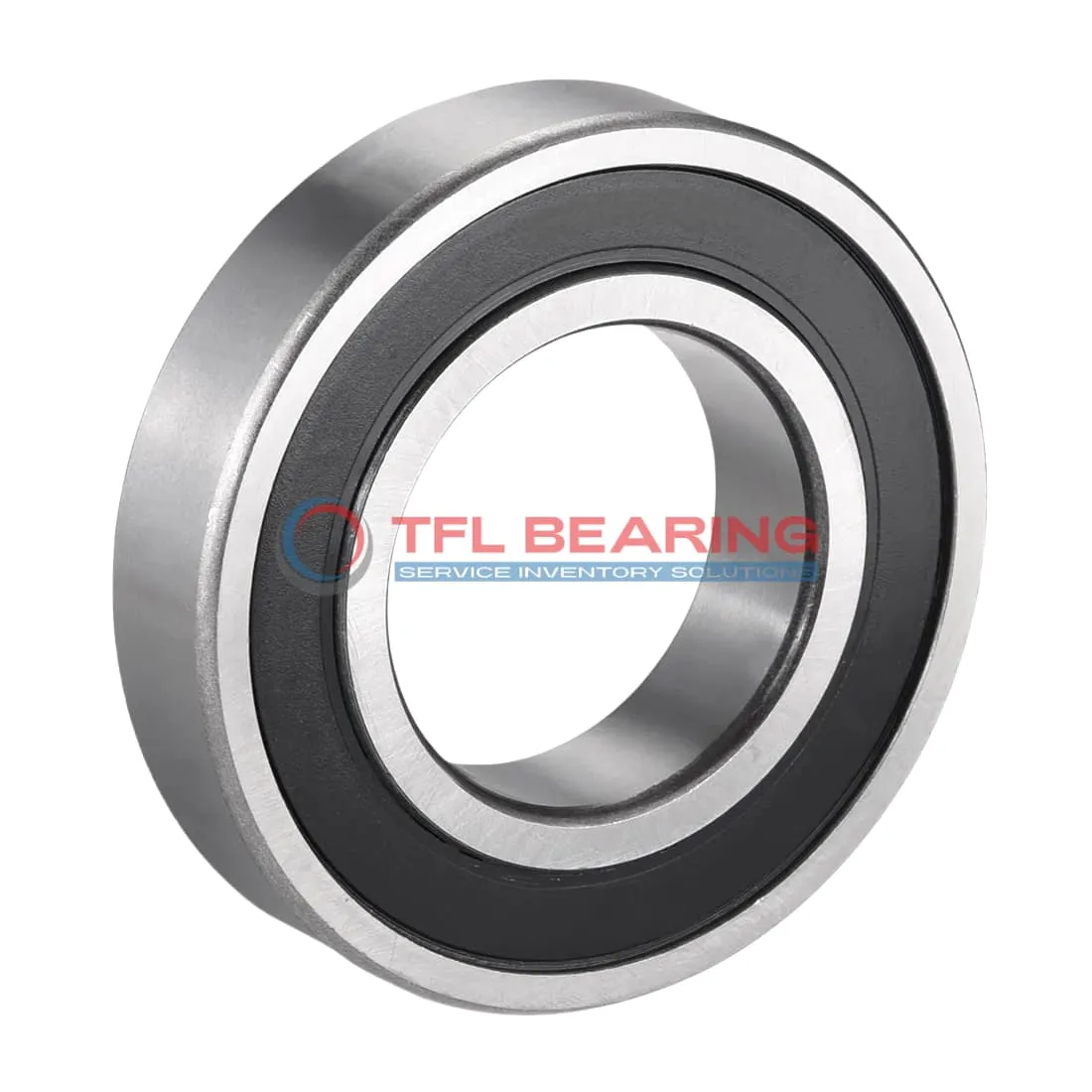

Single Row Deep Groove Ball Bearings 6022-RS

Single Row Deep Groove Ball Bearings 6022-RS

The 6022-RS is a single-row deep groove ball bearing with a 110mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 19154 lbf and operates smoothly at speeds up to 5000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds durability, ensuring reliable performance in various conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for industrial machinery or automotive applications. It’s interchangeable with SKF bearings, offering a practical replacement option.

Weighing 1970g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for widespread use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6022-RS
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 19154 lbf
  • Static Radial Load 16523 lbf
  • Max Speed 5000 rpm
  • Weight 1970 g
Single Row Deep Groove Ball Bearings 6022-RS dimension drawing
Download DWG Download PDF

Features

Performance Features of 6022-RS Bearing

6022-RS Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 19154 lbf, making it suitable for demanding applications.

The sealed design of 6022-RS Bearing protects against dust and moisture, enhancing its durability.
With a maximum speed of 5,000 rpm, it ensures reliable performance in various conditions.

6022-RS Bearing operates efficiently within a temperature range of -30° to 120°C.
Its chrome steel cage maintains ball alignment, reducing wear and extending service life.

The ABEC 1 tolerance class ensures consistent performance in precision applications.
6022-RS Bearing’s sealed construction lowers maintenance needs, saving time and costs.

Application

Common Applications of 6022-RS Bearing
In industrial settings, 6022-RS Bearing is a go-to for radial load support in machinery like pumps and electric motors. Its sealed design keeps contaminants out, extending service life in dusty or humid environments.

Where Is 6022-RS Bearing Used?
You’ll often spot 6022-RS Bearing in automotive applications, such as wheel hubs and alternators, where its robust construction handles constant radial forces. The chrome steel components ensure longevity even under daily wear.

Built for Heavy-Duty Use: 6022-RS Bearing
For automation equipment like conveyor belts, 6022-RS Bearing offers reliable performance with minimal maintenance. Its ABEC 1 tolerance strikes a balance between precision and cost-effectiveness for most industrial needs.

Light-Duty vs Heavy-Duty: Best Uses for 6022-RS Bearing
In lighter applications like household appliances, 6022-RS Bearing provides quiet operation for fans or washing machines. For heavier tasks, it’s equally at home in construction equipment where radial load capacity matters most.
