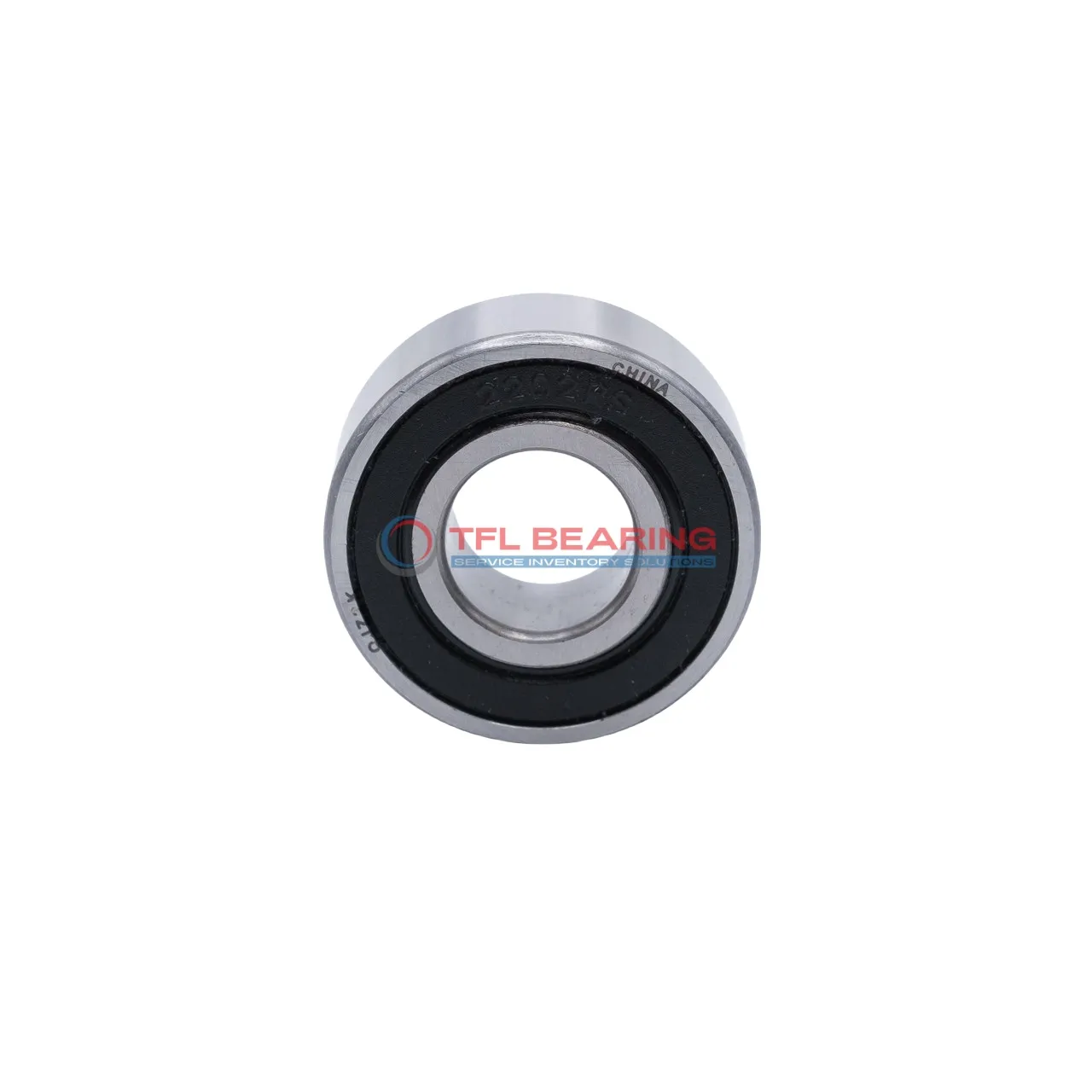

Self Aligning Ball Bearings 2303-2RS C/3

Brand: TFL Bearing Interchangeable: SKF 2303-2RS C/3 17 mm × 47 mm × 19 mm Metric Open
Part number: 2303-2RS C/3
Self Aligning Ball Bearings 2303-2RS C/3
In Stock
US$47.97 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia17 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.011mm to 0
Width19 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring26.15 mm
Internal Diameter On Outer Ring37.2 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,218 lbf
Static Radial Load799 lbf
Temperature Range-30° to 110 °C
Max Speed22,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.16 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2303-2RS C/3 is a self-aligning ball bearing with a 17mm bore and 47mm outer diameter, measuring 19mm in width. Made from chrome steel, it’s built to handle radial loads up to 3218 lbf and can spin at speeds up to 22,000 RPM.

Its double-row design and open seal type allow for easy lubrication and smooth operation. The stainless steel cage adds durability, making it suitable for long-term use in various conditions.

This bearing works well in temperatures from -30°C to 110°C and comes pre-lubricated for immediate use. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur. Weighing just 0.16kg, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards for safe use.

Features

Why Choose 2303-2RS C/3 Bearing for Precision Tasks?

2303-2RS C/3 Bearing features a double-row design, offering excellent radial load capacity of 3218 lbf.
Its chrome steel rings and balls ensure durability, while the stainless steel cage maintains alignment.

The bearing operates smoothly at speeds up to 22,000 rpm, making it suitable for high-speed applications.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

2303-2RS C/3 Bearing’s self-aligning capability compensates for minor misalignments, reducing wear.
Its lubricated design ensures consistent performance with minimal maintenance.

The compact size of 17 mm×47 mm×19 mm makes it ideal for space-constrained applications.
Its compliance with RoHS and REACH standards ensures environmental safety.

Application

Common Applications of 2303-2RS C/3 Bearing
2303-2RS C/3 Bearing is widely used in industrial machinery, especially in applications where misalignment compensation is needed, like conveyor systems and fans. Its double-row design helps maintain smooth operation even under radial loads.

In automotive applications, 2303-2RS C/3 Bearing fits well in components like wheel hubs and transmissions, where its self-aligning feature reduces wear. The chrome steel construction ensures durability in demanding conditions.

For automation equipment, 2303-2RS C/3 Bearing is a reliable choice for robotic arms and assembly lines, thanks to its high-speed capability. The lubricated design also minimises maintenance needs.

In household appliances like washing machines, 2303-2RS C/3 Bearing provides quiet and efficient performance. Its stainless steel cage adds to its longevity in everyday use.
