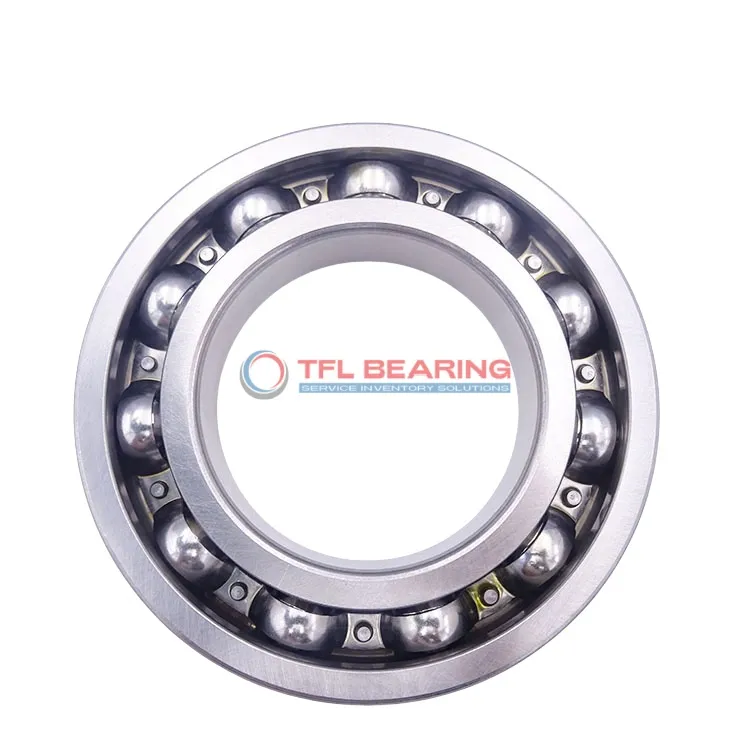

Single Row Deep Groove Ball Bearings 6022 M

Single Row Deep Groove Ball Bearings 6022 M

The 6022 M is a single-row deep groove ball bearing with a 110mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19154 lbf and operates smoothly at speeds reaching 7000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical option for replacements. Suitable for machinery like pumps or electric motors where radial loads are common.

Weighing 2.31kg, it balances strength and size effectively. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6022 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 19154 lbf
  • Static Radial Load 16523 lbf
  • Max Speed 7000 rpm
  • Weight 2.31 kg
Single Row Deep Groove Ball Bearings 6022 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6022 M Bearing

6022 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 19154 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The stainless steel cage maintains ball alignment, reducing friction and extending bearing life.
With a maximum speed of 7,000 rpm, it delivers reliable performance in various applications.

6022 M Bearing operates in temperatures from -30° to 120°C, suitable for diverse environments.
Its P6 tolerance class ensures precision and consistent performance under radial loads.

The open seal design allows for easy maintenance and lubrication adjustments when needed.
Weighing 2.31 kg, it balances durability with manageable size for industrial use.

Application

Industrial Uses of 6022 M Bearing
The 6022 M Bearing is commonly used in industrial machinery like pumps and compressors, where its single-row design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 6022 M Bearing Used?
You’ll often find the 6022 M Bearing in automotive applications such as wheel hubs and transmissions, thanks to its high dynamic radial load capacity. The open seal design allows for easy lubrication and maintenance.

Built for Heavy-Duty Use: 6022 M Bearing
In automation systems, the 6022 M Bearing supports robotic arms and conveyor belts, providing smooth operation under consistent loads. Its P6 tolerance class ensures precision in high-speed scenarios.

Automotive vs Industrial: Applications of 6022 M Bearing
The 6022 M Bearing excels in both automotive and industrial settings, from gearboxes to heavy machinery. Its stainless steel cage enhances longevity, making it a reliable choice for varied applications.

Perfect Fit for Automation: 6022 M Bearing
For 3D printers and CNC machines, the 6022 M Bearing offers reliable performance with its deep groove design. The metric sizing ensures compatibility with a wide range of equipment.
