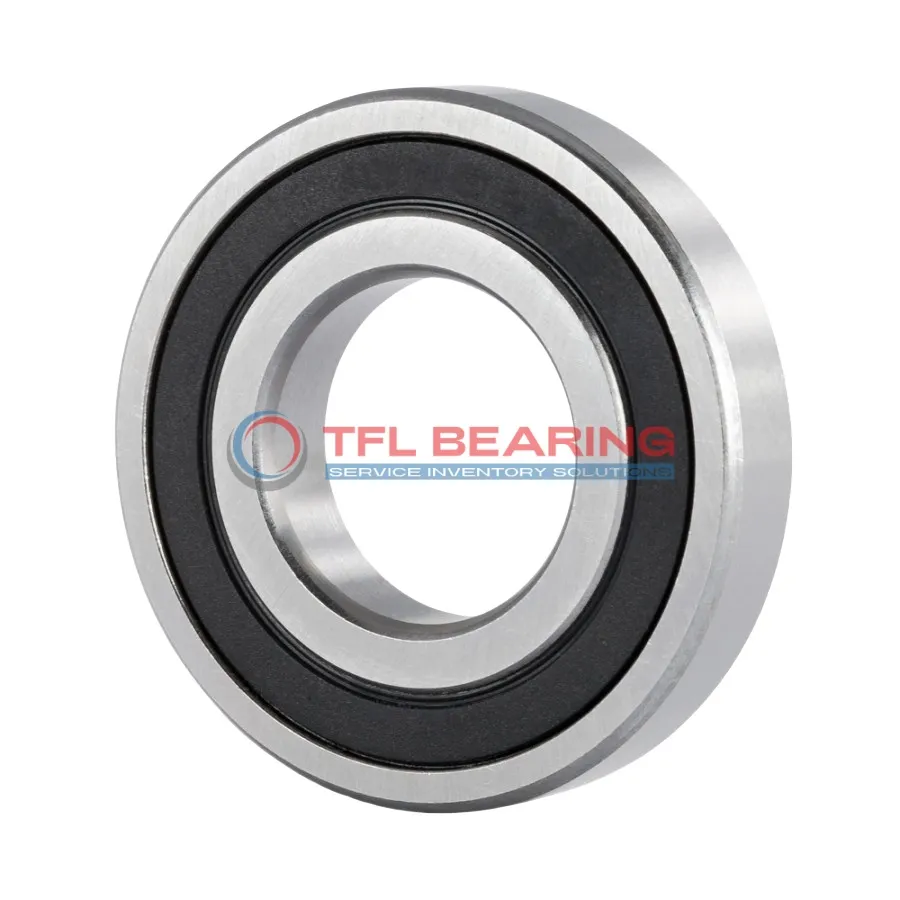

Single Row Deep Groove Ball Bearings 6209-2RS1/W64

Single Row Deep Groove Ball Bearings 6209-2RS1/W64

The 6209-2RS1/W64 is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Sealed on both sides, it keeps dirt out and solid oil lubrication in, reducing maintenance needs. The chrome steel cage adds durability, making it a long-lasting choice.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, ideal for replacements in machinery or automotive applications.

Weighing 407g, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, it’s safe for widespread use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
  • price（$） 18.045
Single Row Deep Groove Ball Bearings 6209-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

How Does 6209-2RS1/W64 Bearing Reduce Friction?

6209-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.

Its chrome steel construction enhances durability, making it suitable for radial loads up to 7351 lbf.

The bearing operates efficiently within a temperature range of -30°C to 120°C, adapting to various environments.

With a maximum speed of 7,700 rpm, it offers reliable performance for industrial applications.

Application

Industrial Uses of 6209-2RS1/W64 Bearing
6209-2RS1/W64 Bearing is commonly used in conveyor systems and electric motors, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

What Makes 6209-2RS1/W64 Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6209-2RS1/W64 Bearing offers reliable performance with minimal maintenance. Its chrome steel construction handles radial loads smoothly under various temperatures.

Perfect Fit for Automation: 6209-2RS1/W64 Bearing
This bearing works well in robotic arms and packaging machines due to its consistent operation and ABEC 1 precision. The sealed design also protects against lubricant leakage in continuous-use scenarios.

Medical vs Industrial: Where 6209-2RS1/W64 Bearing Excels
While suitable for industrial gearboxes, 6209-2RS1/W64 Bearing also meets the quiet operation needs of medical centrifuges. Its solid oil lubrication reduces friction without requiring frequent re-greasing.
