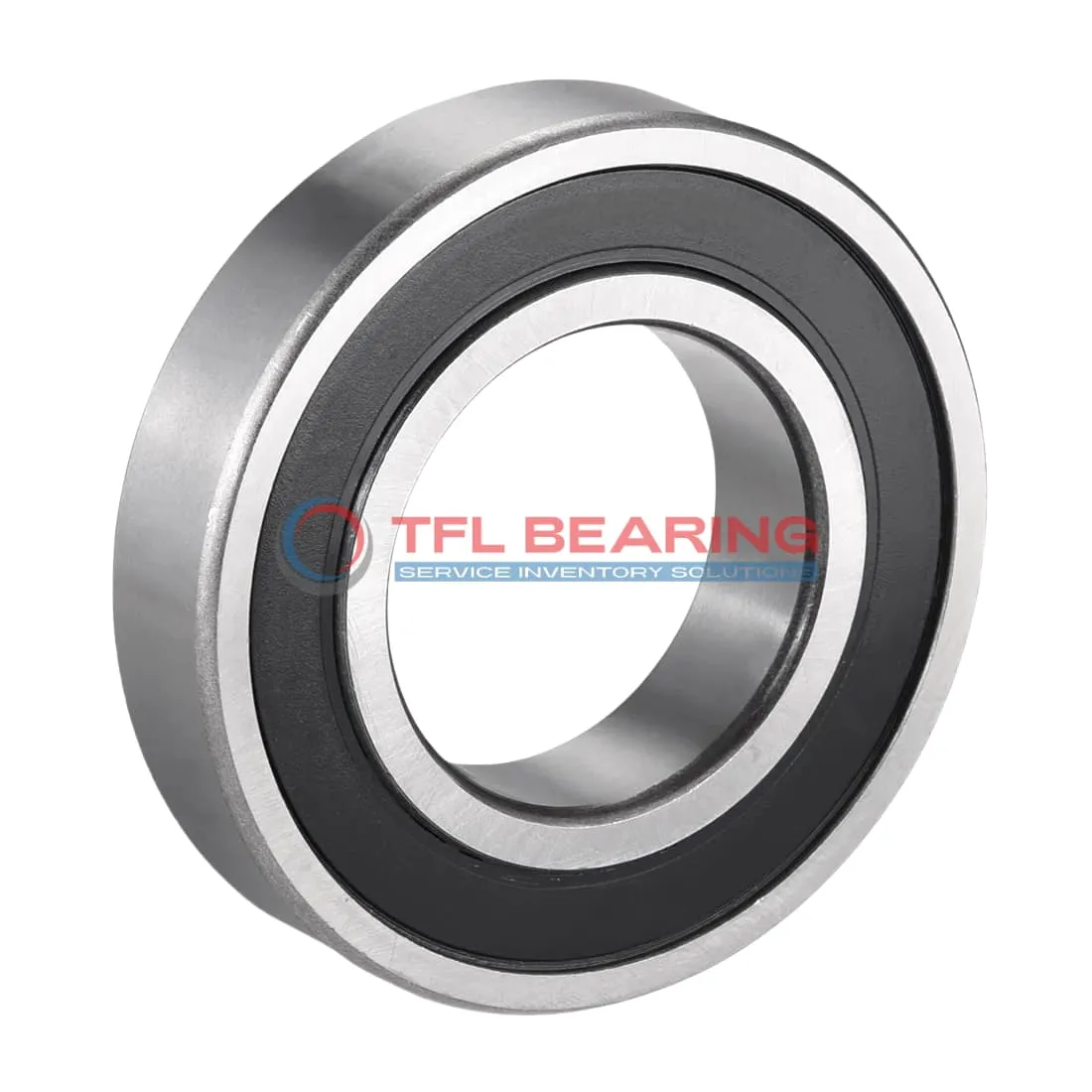

Single Row Deep Groove Ball Bearings 6021-2RS1/W64

Single Row Deep Groove Ball Bearings 6021-2RS1/W64

The 6021-2RS1/W64 is a single-row deep groove ball bearing with a 105mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 16254 lbf and runs smoothly at speeds up to 4000 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The solid oil lubrication ensures long service life even in demanding conditions.

This bearing is compatible with SKF models, offering a reliable replacement option. It’s suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1560g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it operates well in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6021-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 105 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 26 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16254 lbf
  • Static Radial Load 14792 lbf
  • Max Speed 4000 rpm
  • Weight 1560 g
  • price（$） 103.32
Single Row Deep Groove Ball Bearings 6021-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

How Does 6021-2RS1/W64 Bearing Reduce Friction?

6021-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation with minimal friction.
Its chrome steel construction enhances durability while maintaining consistent performance under radial loads.

The single row deep groove design allows for efficient load distribution, reducing wear over time.
With a maximum speed of 4,000 rpm, it balances speed and reliability in various applications.

6021-2RS1/W64 Bearing operates in temperatures from -30°C to 120°C, making it suitable for diverse environments.
Its ABEC 1 tolerance ensures reliable precision without unnecessary complexity.

The sealed construction keeps contaminants out, extending maintenance intervals.
This design choice makes 6021-2RS1/W64 Bearing a practical option for long-term use.

Application

Industrial Uses of 6021-2RS1/W64 Bearing
6021-2RS1/W64 Bearing is commonly used in conveyor systems and industrial fans, where its sealed design helps keep out dust and debris. The solid oil lubrication ensures long service life even in continuous operation.

What Makes 6021-2RS1/W64 Bearing a Preferred Choice?
In automotive applications, 6021-2RS1/W64 Bearing fits well in electric motors and pumps due to its radial load capacity. The chrome steel construction provides good resistance to wear and tear.

Perfect Fit for Automation: 6021-2RS1/W64 Bearing
6021-2RS1/W64 Bearing works smoothly in robotic arms and automated assembly lines. Its ABEC 1 tolerance offers reliable performance for precision movements.

Medical vs Industrial: Where 6021-2RS1/W64 Bearing Excels
While 6021-2RS1/W64 Bearing is sturdy enough for heavy machinery, it also meets the quiet operation needs of medical imaging devices. The temperature range suits various environments.

Essential Roles of 6021-2RS1/W64 Bearing
6021-2RS1/W64 Bearing supports household appliances like washing machines, where its sealed design prevents water damage. The metric sizing makes replacements easy.
