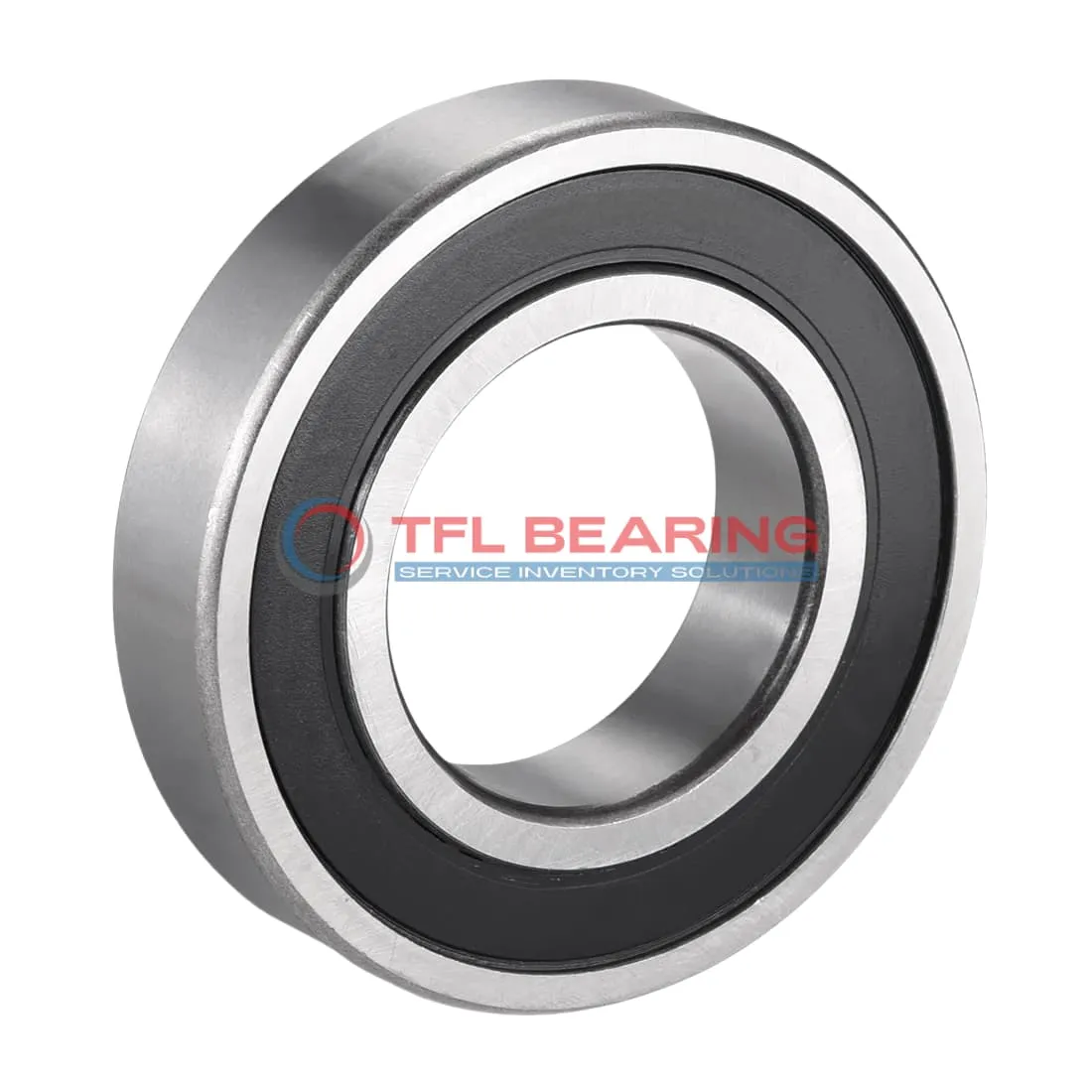

Single Row Deep Groove Ball Bearings 6020-RS1

Single Row Deep Groove Ball Bearings 6020-RS1

The 6020-RS1 is a sealed single-row deep groove ball bearing with a 100mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 14320 lbf and operates smoothly at speeds up to 2600 RPM.

Its sealed design keeps out dust and moisture, extending its lifespan, while the stainless steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1.27kg, it’s a robust option for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6020-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 24 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 14320 lbf
  • Static Radial Load 12140 lbf
  • Max Speed 2600 rpm
  • Weight 1.27 kg
Single Row Deep Groove Ball Bearings 6020-RS1 dimension drawing
Download DWG Download PDF

Features

How Does 6020-RS1 Bearing Reduce Friction?

6020-RS1 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel rings and balls ensure smooth operation under radial loads up to 14320 lbf.

The stainless steel cage maintains ball alignment, minimising wear and extending service life.
With a maximum speed of 2,600 rpm, it offers reliable performance in various applications.

6020-RS1 Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its P6 tolerance class ensures precision, making it suitable for demanding tasks.

Application

Common Applications of 6020-RS1 Bearing
6020-RS1 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures it can handle radial loads efficiently.

In automotive applications, 6020-RS1 Bearing fits well in wheel hubs and transmission systems, providing smooth rotation under various driving conditions. Its P6 tolerance class makes it suitable for precision automotive components.

For home appliances, 6020-RS1 Bearing works reliably in washing machines and fans, where its durability and low maintenance are appreciated. The sealed feature also helps prolong its lifespan in everyday use.

Automation systems benefit from 6020-RS1 Bearing in robotic arms and assembly lines, where consistent performance is key. The stainless steel cage adds extra resistance to wear in high-cycle operations.

Medical devices like diagnostic equipment often use 6020-RS1 Bearing for its smooth and quiet operation. The compliant temperature range ensures it performs well in various clinical environments.
