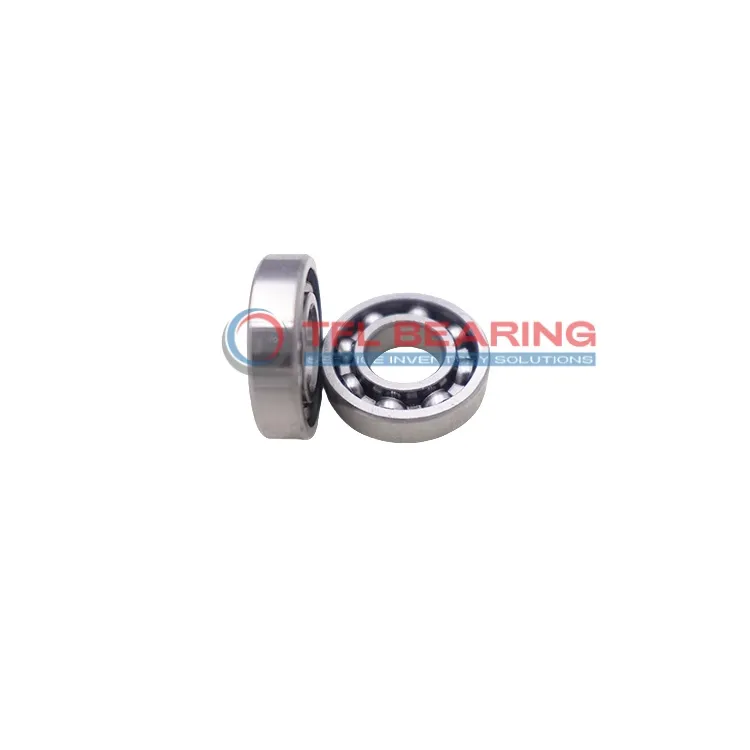

Stainless Steel Deep Groove Ball Bearings D/W R6-5

Stainless Steel Deep Groove Ball Bearings D/W R6-5

The D/W R6-5 is a compact stainless steel deep groove ball bearing, measuring 0.5″ by 0.875″ by 0.21882″. It handles radial loads up to 250 lbf and spins smoothly at speeds up to 43,000 RPM.

Made entirely from stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C. Its open design allows easy access for lubrication when needed.

This bearing is interchangeable with SKF models, making replacements straightforward. Ideal for small machinery or instruments where corrosion resistance and reliability are key.

Weighing just 0.0076kg, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R6-5
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.5"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.875"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.21882"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 250 lbf
  • Static Radial Load 119 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 43000 rpm
  • Weight 0.0076 kg
Stainless Steel Deep Groove Ball Bearings D/W R6-5 dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R6-5 Bearing for Precision Tasks?

D/W R6-5 Bearing is crafted from stainless steel, offering excellent corrosion resistance and durability.
Its single-row design ensures smooth radial load handling, making it suitable for precision applications.
The open seal type allows for easy maintenance while maintaining high-speed performance up to 43,000 rpm.
With a dynamic radial load capacity of 250 lbf, it delivers reliable performance in various conditions.

Application

Industrial Uses of D/W R6-5 Bearing
D/W R6-5 Bearing is commonly used in small industrial equipment like pumps and electric motors, where its stainless steel construction resists corrosion. The open design allows for easy lubrication, ensuring long service life in demanding conditions.

What Makes D/W R6-5 Bearing a Preferred Choice?
In automotive applications, D/W R6-5 Bearing fits well in components like alternators and small gearboxes, thanks to its precise inch sizing. Its ability to handle radial loads makes it reliable for everyday vehicle use.

Perfect Fit for Automation: D/W R6-5 Bearing
For robotics and automation, D/W R6-5 Bearing offers smooth operation in joints and small actuators. The stainless steel materials ensure durability even in high-speed scenarios.

Medical vs Industrial: Where D/W R6-5 Bearing Excels
In medical devices, D/W R6-5 Bearing provides quiet performance for instruments like dental drills. Its corrosion resistance also makes it suitable for industrial washdown environments.

Where Is D/W R6-5 Bearing Used?
You’ll find D/W R6-5 Bearing in household appliances like fans and power tools, where its compact size and reliability are key. The stainless steel build ensures it withstands daily wear and tear.
