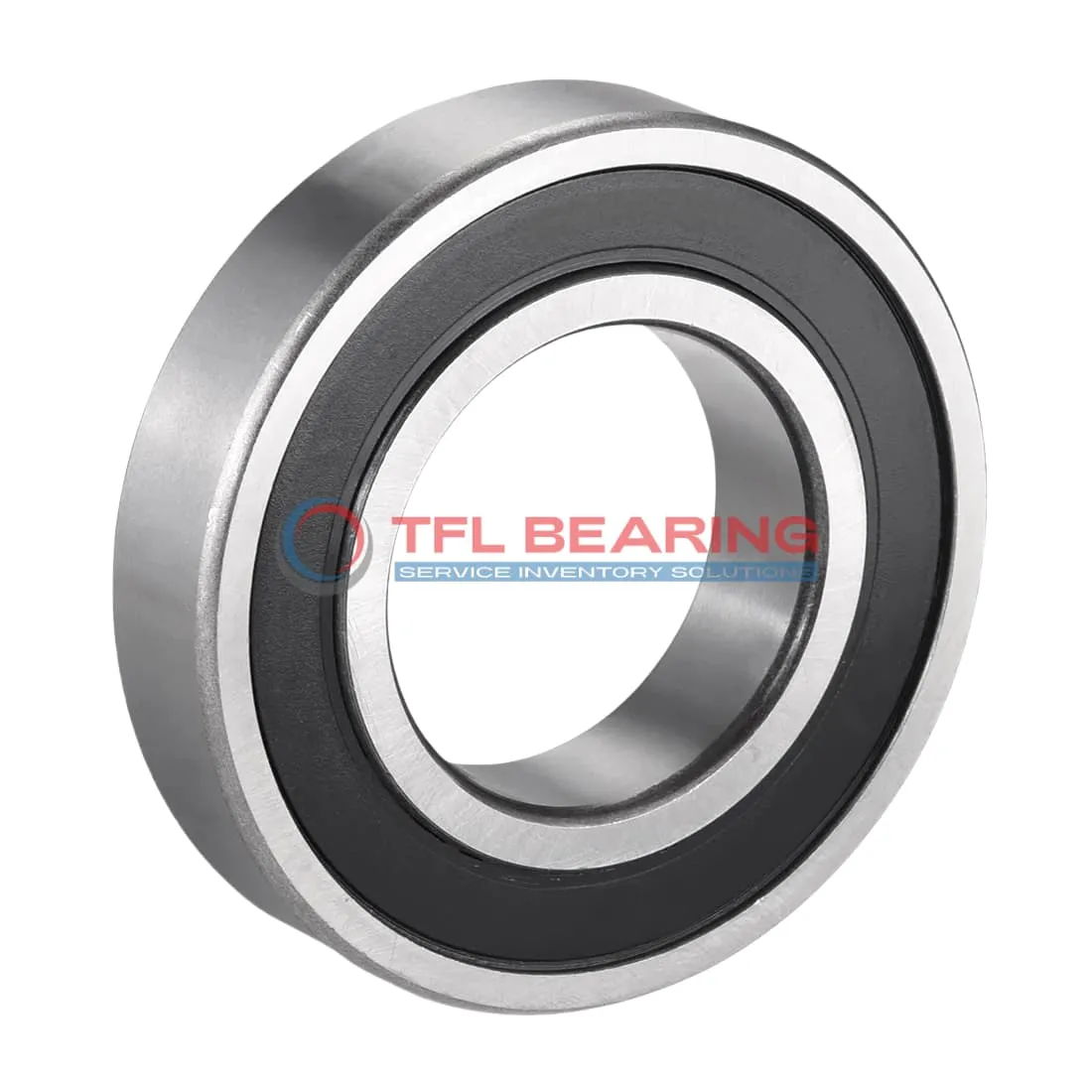

Single Row Deep Groove Ball Bearings 6019-2RS1

Single Row Deep Groove Ball Bearings 6019-2RS1

The 6019-2RS1 is a sealed single-row deep groove ball bearing with a 95mm bore and 145mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 14320 lbf and operates smoothly at speeds up to 2800 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are predominant.

Weighing 1.25kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6019-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 145 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 24 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 14320 lbf
  • Static Radial Load 12140 lbf
  • Max Speed 2800 rpm
  • Weight 1.25 kg
  • price（$） 48.78
Single Row Deep Groove Ball Bearings 6019-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 6019-2RS1 Bearing Reduce Friction?

6019-2RS1 Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation with minimal friction.
The stainless steel cage maintains proper ball alignment, reducing wear and enhancing efficiency.

Its dynamic radial load capacity of 14,320 lbf makes it suitable for various radial load applications.
The grease lubrication further reduces friction, extending the bearing’s service life.

With a maximum speed of 2,800 rpm, 6019-2RS1 Bearing balances performance and durability.
The temperature range of -30° to 120°C ensures reliable operation in diverse conditions.

The P6 tolerance class guarantees precision, making it ideal for high-performance machinery.
Its sealed construction also protects against contaminants, reducing maintenance needs.

Application

Industrial Uses of 6019-2RS1 Bearing
6019-2RS1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures it can handle radial loads efficiently in demanding environments.

What Makes 6019-2RS1 Bearing a Preferred Choice?
In automotive applications, 6019-2RS1 Bearing works well in wheel hubs and transmissions due to its durability and grease lubrication. The P6 tolerance class also means it offers reliable precision for smooth vehicle operation.

Built for Heavy-Duty Use: 6019-2RS1 Bearing
For automation equipment, 6019-2RS1 Bearing provides stable performance in robotic arms and conveyor systems. Its stainless steel cage adds extra resistance to wear, making it suitable for high-use scenarios.

Medical vs Industrial: Where 6019-2RS1 Bearing Excels
In medical devices like centrifuges, 6019-2RS1 Bearing’s sealed design prevents contamination while maintaining smooth rotation. Meanwhile, in industrial settings, its high dynamic load capacity makes it ideal for heavy machinery.
