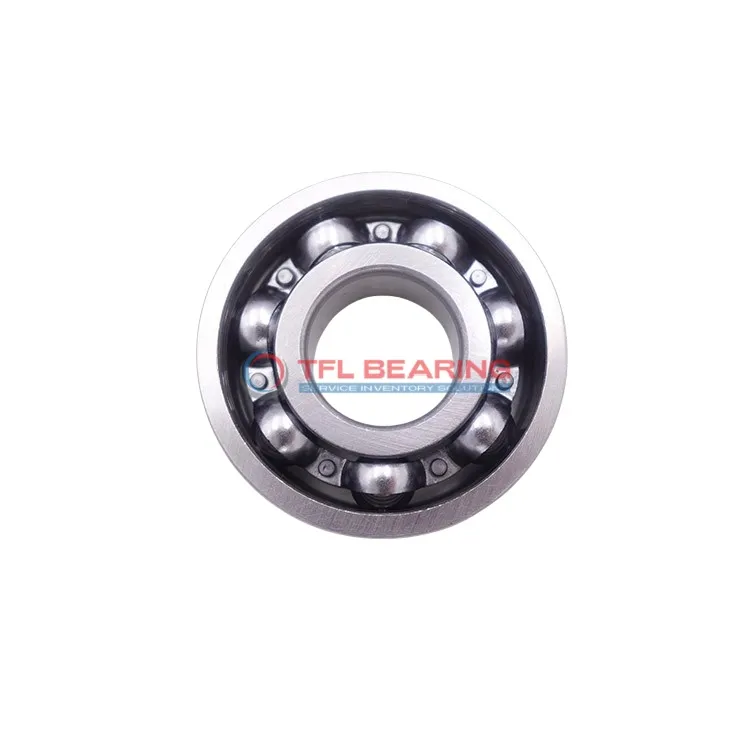

Single Row Deep Groove Ball Bearings 6017

Single Row Deep Groove Ball Bearings 6017

The 6017 is a single-row deep groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 11128 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial load handling is key.

Weighing 899g, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6017
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 22 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 11128 lbf
  • Static Radial Load 9689 lbf
  • Max Speed 5000 rpm
  • Weight 899 g
  • price（$） 21.645
Single Row Deep Groove Ball Bearings 6017 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6017 Bearing

6017 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 11128 lbf.
Its stainless steel cage ensures smooth operation and reduces wear over time.
The open design allows for easy lubrication, maintaining performance in various conditions.
With a maximum speed of 5,000 rpm, it balances durability and efficiency for radial applications.

Application

Common Applications of 6017 Bearing
The 6017 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures reliable performance. Its open design simplifies lubrication, making maintenance straightforward for busy workshops.

In automotive applications, 6017 Bearing fits well in wheel hubs and transmission systems, thanks to its durable chrome steel construction. The metric sizing ensures compatibility with a variety of vehicle models, both old and new.

For home appliances like washing machines, 6017 Bearing provides smooth operation under constant use. Its stainless steel cage helps reduce wear, extending the lifespan of everyday devices.

Where Is 6017 Bearing Used?
You’ll often find 6017 Bearing in conveyor systems, where its ability to handle radial loads keeps production lines running smoothly. The ABEC-1 tolerance offers a good balance of precision and affordability for most industrial needs.

In farm equipment, 6017 Bearing withstands dusty conditions while maintaining performance. Its chrome steel rings and balls resist corrosion, making it a dependable choice for outdoor machinery.

Built for Heavy-Duty Use: 6017 Bearing
The 6017 Bearing excels in construction equipment, where its robust design handles heavy loads without faltering. Its wide temperature range also makes it suitable for projects in varying climates.

For workshop tools like grinders, 6017 Bearing ensures stable operation at moderate speeds. The easy-to-maintain open seal design is a practical feature for DIY enthusiasts and professionals alike.
