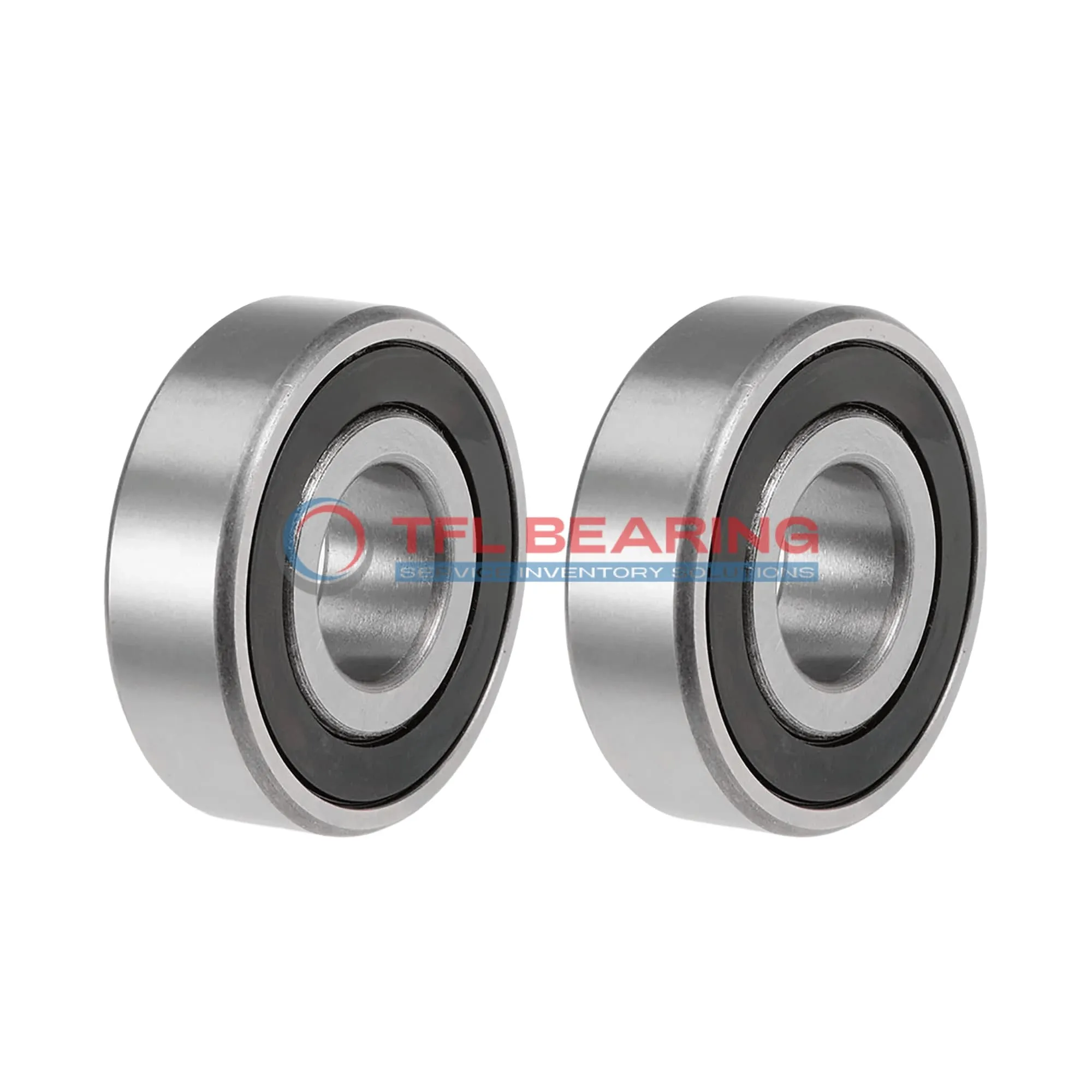

Single Row Deep Groove Ball Bearings 6017-2RSJEM

Single Row Deep Groove Ball Bearings 6017-2RSJEM

The 6017-2RSJEM is a single-row deep groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11128 lbf and operates smoothly at speeds up to 5000 RPM.

Its sealed design keeps out dust and moisture, extending its lifespan even in harsh conditions. The bearing works reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 899g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6017-2RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 22 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11128 lbf
  • Static Radial Load 9689 lbf
  • Max Speed 5000 rpm
  • Weight 899 g
  • price（$） 30.843
Single Row Deep Groove Ball Bearings 6017-2RSJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6017-2RSJEM Bearing

6017-2RSJEM Bearing is designed for radial loads, with a dynamic radial load capacity of 11,128 lbf.

Its sealed construction protects against dust and moisture, ensuring reliable operation in various environments.

The chrome steel rings and balls provide durability, while the ABEC 1 tolerance class ensures consistent performance.

With a maximum speed of 5,000 rpm, it balances efficiency and longevity.

Application

Industrial Uses of 6017-2RSJEM Bearing
6017-2RSJEM Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6017-2RSJEM Bearing fits well in wheel hubs and transmissions, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 6017-2RSJEM Bearing works smoothly in robotic arms and conveyor belts, thanks to its consistent performance. The sealed design also reduces maintenance needs in dusty or wet conditions.

Where Is 6017-2RSJEM Bearing Used?
You’ll often find 6017-2RSJEM Bearing in household appliances like washing machines, where its radial load capacity handles constant motion. The sealed construction helps prolong its lifespan in humid environments.

In agricultural equipment, 6017-2RSJEM Bearing supports components like gearboxes, enduring heavy loads and rough conditions. Its chrome steel build ensures it can handle the demands of fieldwork.

Built for Heavy-Duty Use: 6017-2RSJEM Bearing
6017-2RSJEM Bearing is a solid choice for construction machinery, where its high static radial load capacity supports heavy equipment. The sealed design also protects against dust and debris.

In food processing lines, 6017-2RSJEM Bearing performs reliably, even with frequent washdowns. Its corrosion-resistant materials make it suitable for hygienic environments.

Light-Duty vs Heavy-Duty: Best Uses for 6017-2RSJEM Bearing
For light-duty tasks like office printers, 6017-2RSJEM Bearing ensures quiet and smooth operation. Its sealed design keeps out paper dust, reducing wear over time.

In heavy-duty industrial fans, 6017-2RSJEM Bearing handles high speeds and continuous use without overheating. The chrome steel construction provides long-lasting performance.
