Single Row Deep Groove Ball Bearings 6015-RSJEM

Single Row Deep Groove Ball Bearings 6015-RSJEM

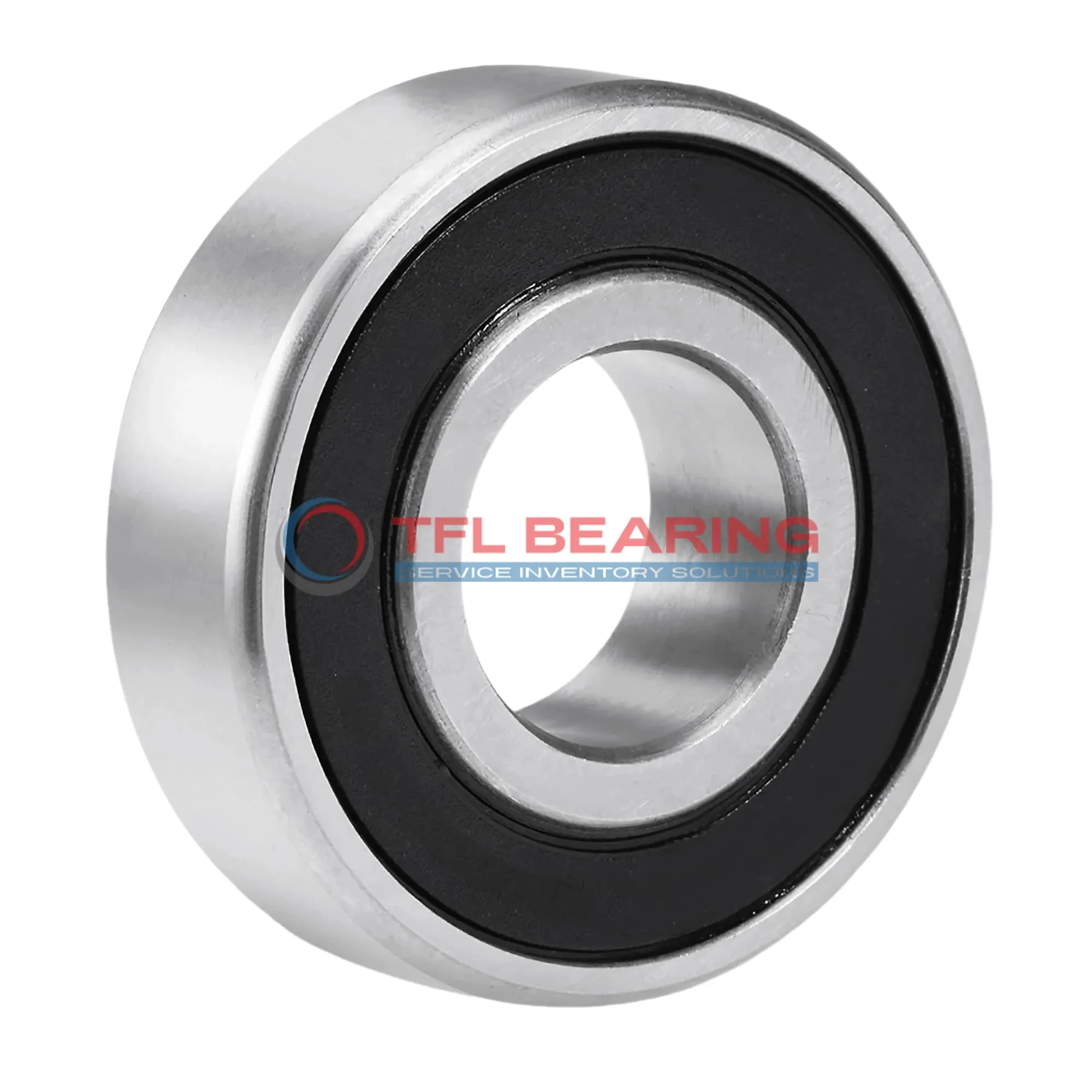

The 6015-RSJEM is a single-row deep groove ball bearing with a 75mm bore and 115mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8902 lbf and operates smoothly at speeds up to 5600 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds durability, ensuring reliable performance over time.

With a compact width of 20mm, it fits neatly into tight spaces. Ideal for electric motors, pumps, or conveyor systems where radial loads are common.

Weighing 638g, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for various industrial applications. Works well in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6015-RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8902 lbf
  • Static Radial Load 7531 lbf
  • Max Speed 5600 rpm
  • Weight 638 g
  • price（$） 24.489
Single Row Deep Groove Ball Bearings 6015-RSJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6015-RSJEM Bearing

6015-RSJEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 8902 lbf, ensuring reliable performance in various applications.
The sealed design protects against dust and moisture, enhancing durability.
With a maximum speed of 5,600 rpm, it provides a balance of efficiency and longevity.

Application

Industrial Uses of 6015-RSJEM Bearing
The 6015-RSJEM Bearing is commonly used in conveyor systems and industrial fans, where its sealed design helps keep out dust and debris. Its chrome steel construction ensures durability in demanding environments.

What Makes 6015-RSJEM Bearing a Preferred Choice?
In automotive applications like electric motors and pumps, 6015-RSJEM Bearing offers reliable performance with its ABEC 1 precision. The sealed design also helps maintain lubrication over long periods.

Perfect Fit for Automation: 6015-RSJEM Bearing
This bearing works well in robotic arms and automated assembly lines, thanks to its smooth operation and radial load capacity. The ISO P0 tolerance ensures consistent performance in precision tasks.

Medical vs Industrial: Where 6015-RSJEM Bearing Excels
While suitable for medical devices like lab equipment, 6015-RSJEM Bearing shines in industrial settings due to its robust build. The temperature range of -30° to 120°C makes it versatile for various conditions.

How Does 6015-RSJEM Bearing Support High-Speed Operations?
With a max speed of 5,600 rpm, this bearing is ideal for machinery requiring steady performance. Its dynamic radial load capacity of 8,902 lbf ensures reliability under stress.
