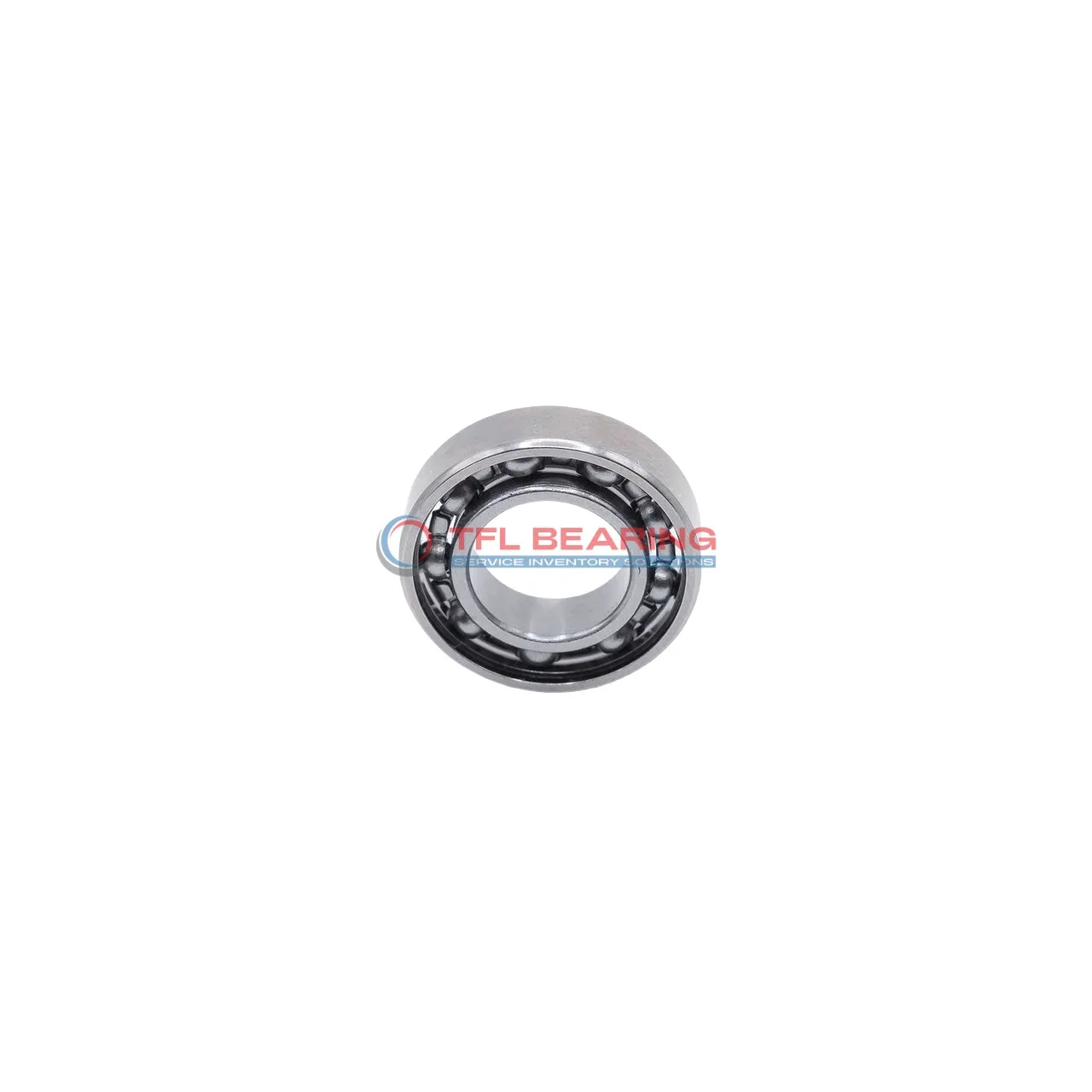

Single Row Deep Groove Ball Bearings 209M

Single Row Deep Groove Ball Bearings 209M

The 209M is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7913 lbf and spins smoothly at speeds up to 8500 RPM.

Its open design makes maintenance straightforward, while the chrome steel cage ensures durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s ideal for applications like electric motors or pumps where radial loads are common.

Weighing 0.44kg, it balances strength and lightness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 209M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7913 lbf
  • Static Radial Load 6744 lbf
  • Max Speed 8500 rpm
  • Weight 0.44 kg
  • price（$） 12.393
Single Row Deep Groove Ball Bearings 209M dimension drawing
Download DWG Download PDF

Features

Performance Features of 209M Bearing

209M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7913 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 8,500 rpm, it balances durability and efficiency for smooth performance.

209M Bearing operates in temperatures from -30°C to 120°C, making it suitable for diverse environments.
The open seal type allows for easy maintenance and lubrication adjustments when needed.

Application

Common Applications of 209M Bearing
209M Bearing is widely used in industrial equipment like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 209M Bearing fits well in components such as alternators and wheel hubs, providing smooth rotation under various loads. Its metric sizing makes it a versatile choice for both domestic and international vehicle models.

For home appliances, 209M Bearing can be found in washing machines and fans, offering quiet operation and durability. The chrome steel construction ensures it withstands daily wear and tear effortlessly.

Automation systems benefit from 209M Bearing in robotic arms and conveyor belts, where precision and reliability are key. Its ABEC 1 tolerance class strikes a good balance between performance and cost.

Medical devices like centrifuges often use 209M Bearing for its consistent performance and low maintenance needs. The temperature range makes it suitable for various clinical environments.
