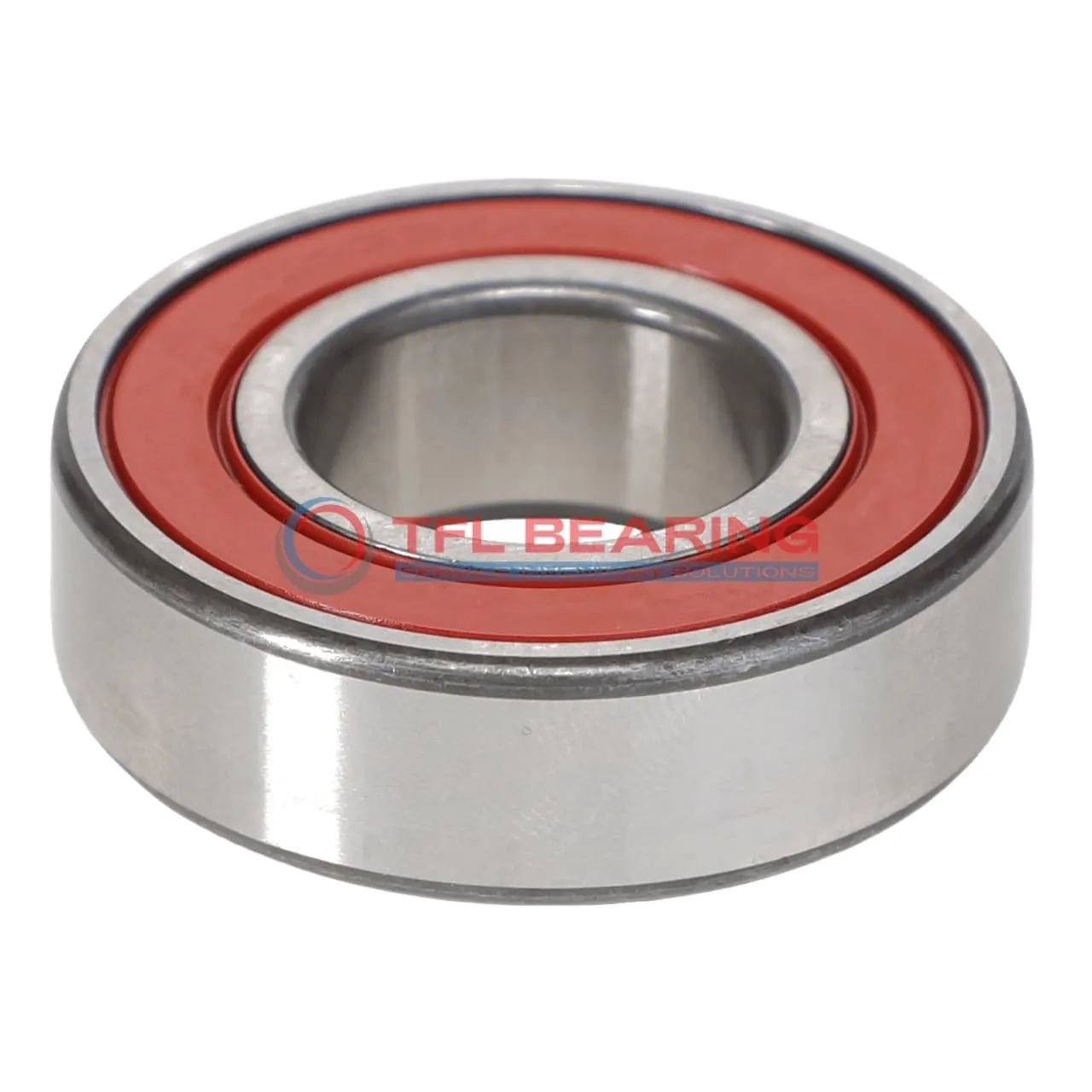

Single Row Deep Groove Ball Bearings 6015-2RZ/VT105

Single Row Deep Groove Ball Bearings 6015-2RZ/VT105

The 6015-2RZ/VT105 is a single-row deep groove ball bearing with a 75mm bore and 115mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8902 lbf and operates smoothly at speeds up to 5600 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The chrome steel cage adds durability, while the ABEC 1 tolerance ensures reliable performance.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial environments. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing 638g, it’s a robust choice for applications like electric motors or conveyor systems where radial loads are common. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6015-2RZ/VT105
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8902 lbf
  • Static Radial Load 7531 lbf
  • Max Speed 5600 rpm
  • Weight 638 g
Single Row Deep Groove Ball Bearings 6015-2RZ/VT105 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6015-2RZ/VT105 Bearing

6015-2RZ/VT105 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 8902 lbf, ensuring steady performance in various applications.
The sealed design protects against dust and moisture, enhancing durability in harsh environments.
With a maximum speed of 5,600 rpm, it provides a balance of reliability and efficiency.

Application

Practical Applications of 6015-2RZ/VT105 Bearing
The 6015-2RZ/VT105 Bearing is commonly used in industrial machinery, such as conveyor systems and electric motors, where its sealed design helps keep out dust and debris. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 6015-2RZ/VT105 Bearing is ideal for components like alternators and water pumps, providing reliable performance under radial loads. The sealed feature also helps extend its lifespan in harsh conditions.

For automation equipment, 6015-2RZ/VT105 Bearing supports smooth operation in robotic arms and assembly lines. Its ABEC 1 tolerance ensures consistent performance without requiring frequent maintenance.

In household appliances like washing machines, 6015-2RZ/VT105 Bearing offers quiet and efficient operation. The sealed design prevents contamination, making it a low-maintenance choice for everyday use.
