Single Row Deep Groove Ball Bearings 6014-RS1

Single Row Deep Groove Ball Bearings 6014-RS1

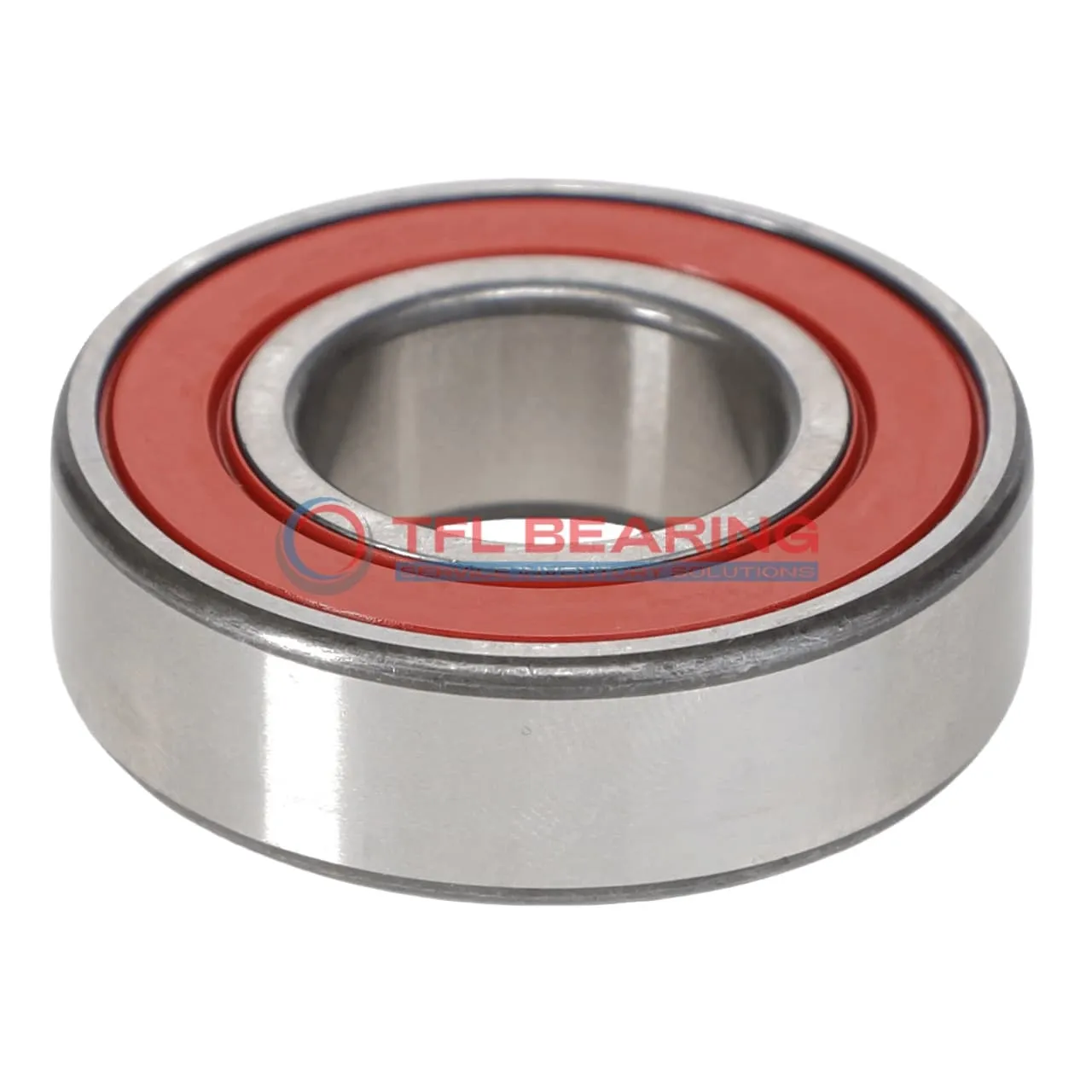

The 6014-RS1 is a sealed single-row deep groove ball bearing with a 70mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8925 lbf and operates smoothly at speeds up to 3600 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs, while the stainless steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for applications like electric motors or pumps where radial loads are common.

Weighing 0.62kg, it balances strength and compactness. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6014-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 8925 lbf
  • Static Radial Load 6969 lbf
  • Max Speed 3600 rpm
  • Weight 0.62 kg
  • price（$） 17.541
Single Row Deep Groove Ball Bearings 6014-RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6014-RS1 Bearing

6014-RS1 Bearing is designed for radial loads, with a dynamic radial load capacity of 8925 lbf.
Its chrome steel construction ensures durability and resistance to wear.

The sealed design of 6014-RS1 Bearing protects against dust and moisture, enhancing its lifespan.
It operates smoothly within a temperature range of -30° to 120°C, making it versatile for various environments.

With a maximum speed of 3,600 rpm, 6014-RS1 Bearing balances performance and reliability.
The stainless steel cage maintains ball alignment, reducing friction and noise.

6014-RS1 Bearing’s precision P6 tolerance class ensures consistent performance in demanding applications.
Its compact size (70 mm×110 mm×20 mm) makes it suitable for space-constrained installations.

Application

Industrial Uses of 6014-RS1 Bearing
The 6014-RS1 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its sealed design helps keep out dust and debris. Its chrome steel construction ensures durability even in demanding environments.

Where Is 6014-RS1 Bearing Used?
You’ll often find the 6014-RS1 Bearing in automotive applications such as electric motors and gearboxes, where its radial load capacity provides reliable performance. The sealed design also makes it suitable for environments with exposure to moisture or contaminants.

Built for Versatility: 6014-RS1 Bearing
In automation and robotics, the 6014-RS1 Bearing is a solid choice for components like robotic arms, thanks to its smooth operation and consistent performance. Its stainless steel cage adds extra resistance to wear over time.

Light-Duty vs Heavy-Duty: Best Uses for 6014-RS1 Bearing
For light-duty applications like household fans or printers, the 6014-RS1 Bearing offers quiet and efficient operation. In heavier industrial settings, it handles radial loads effectively while maintaining longevity.

Essential Roles of 6014-RS1 Bearing
Medical devices such as lab equipment benefit from the 6014-RS1 Bearing’s precision and reliability. Its temperature range and sealed design make it suitable for sterile or controlled environments.
