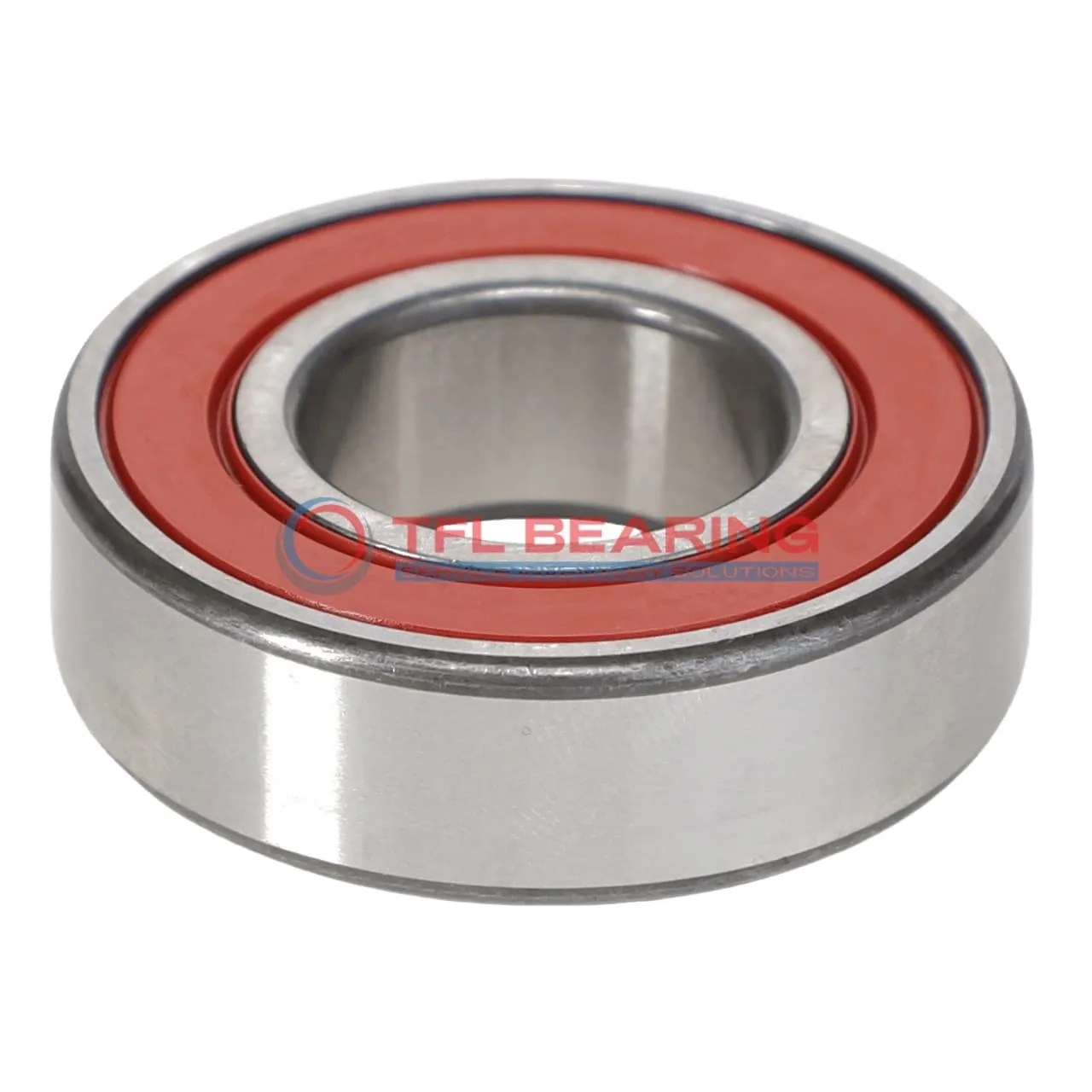

Single Row Deep Groove Ball Bearings 6014-2RS1/W64

Single Row Deep Groove Ball Bearings 6014-2RS1/W64

The 6014-2RS1/W64 is a sealed single-row deep groove ball bearing with a 70mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8565 lbf and runs smoothly at speeds up to 6000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long service life without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for electric motors or pumps where radial loads and moderate speeds are common.

Weighing 598g, it balances durability with manageable size. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6014-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8565 lbf
  • Static Radial Load 6947 lbf
  • Max Speed 6000 rpm
  • Weight 598 g
  • price（$） 32.985
Single Row Deep Groove Ball Bearings 6014-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6014-2RS1/W64 Bearing

6014-2RS1/W64 Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 8565 lbf, ensuring steady performance in various applications.
The sealed design and solid oil lubrication reduce maintenance needs and extend service life.
With a maximum speed of 6,000 rpm, it balances efficiency and durability.

Application

Industrial Uses of 6014-2RS1/W64 Bearing
This bearing is commonly used in conveyor systems and industrial fans, where its sealed design helps keep out dust and debris. The solid oil lubrication ensures smooth operation even in demanding environments.

Where Is 6014-2RS1/W64 Bearing Used?
You’ll often find this bearing in electric motors and pumps, thanks to its reliable radial load handling. The chrome steel construction makes it durable for long-term use in various industrial settings.

Perfect Fit for Automation: 6014-2RS1/W64 Bearing
In automated machinery, this bearing’s sealed and lubricated design reduces maintenance needs. It’s a solid choice for robotic arms and assembly line equipment.

Automotive vs Industrial: Applications of 6014-2RS1/W64 Bearing
While it works well in automotive components like alternators, its sealed design makes it ideal for industrial gearboxes. The wide temperature range ensures performance in different conditions.

Medical vs Consumer Electronics: Where 6014-2RS1/W64 Bearing Excels
Though not common in medical devices, this bearing fits well in household appliances like washing machines. Its durability and low maintenance make it a practical choice for everyday use.
